KNUCKLE COVER

DL1000 VSTROM 2008 (K8) USA (E03)

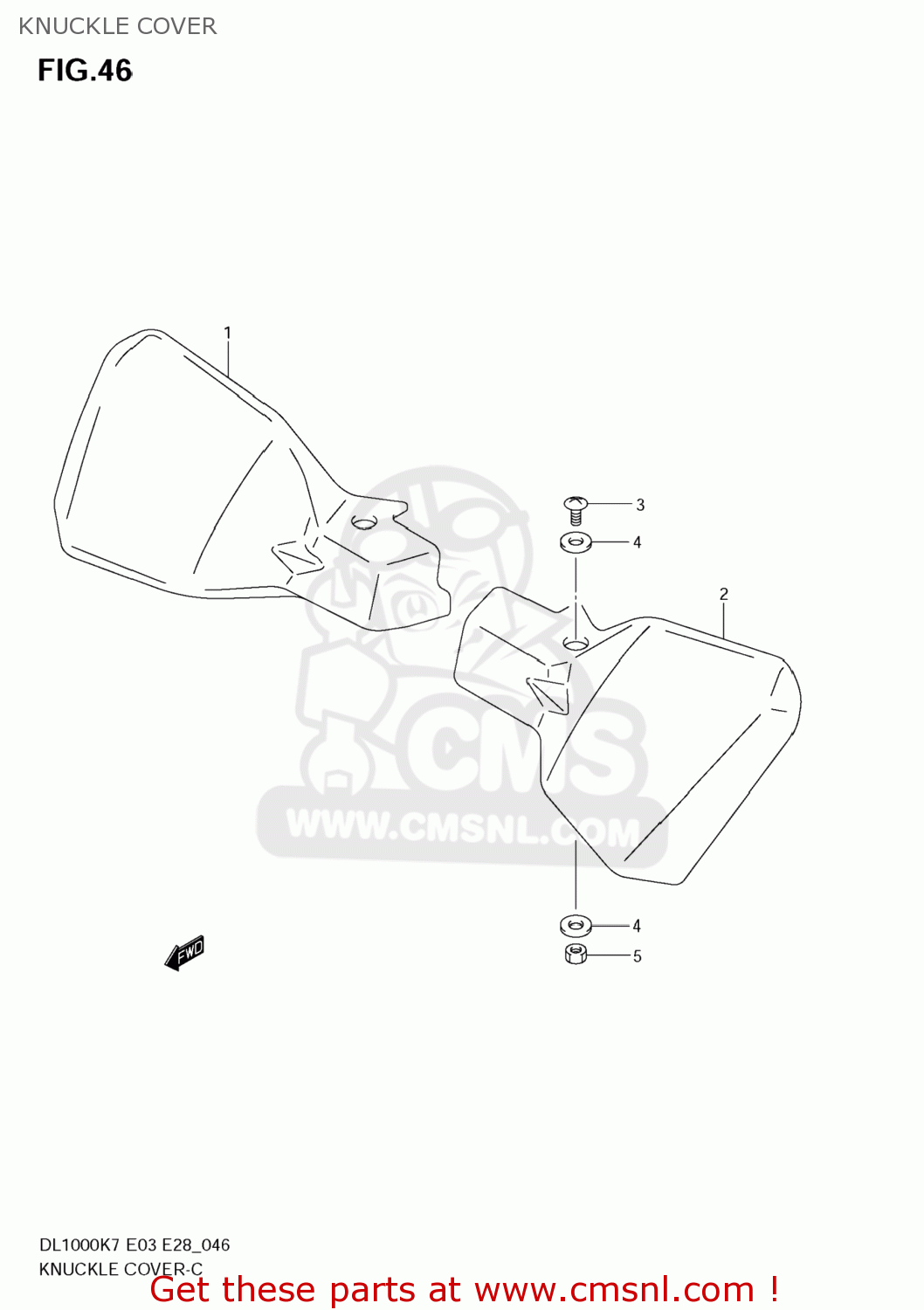

Knuckle cover diagram DL1000 VSTROM 2008 (K8) USA (E03)

KNUCKLE COVER DL1000 VSTROM 2008 (K8) USA (E03)

KNUCKLE COVER DL1000 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5734127G01291
ref: 1
57341-27G02-291

COVER,KNUCKLE,

€ 16.50

2

5754106G10291
ref: 2

COVER,KNUCKLE,L

€ 25.00

3

0912506118
ref: 3

SCREW(6X10)

€ 3.50

4

0916006130
ref: 4

WASHER(6.5X16X1.6)

€ 2.00

5

083192106A
ref: 5

NUT

€ 2.00
