CYLINDER

DR250S 1982 (Z)

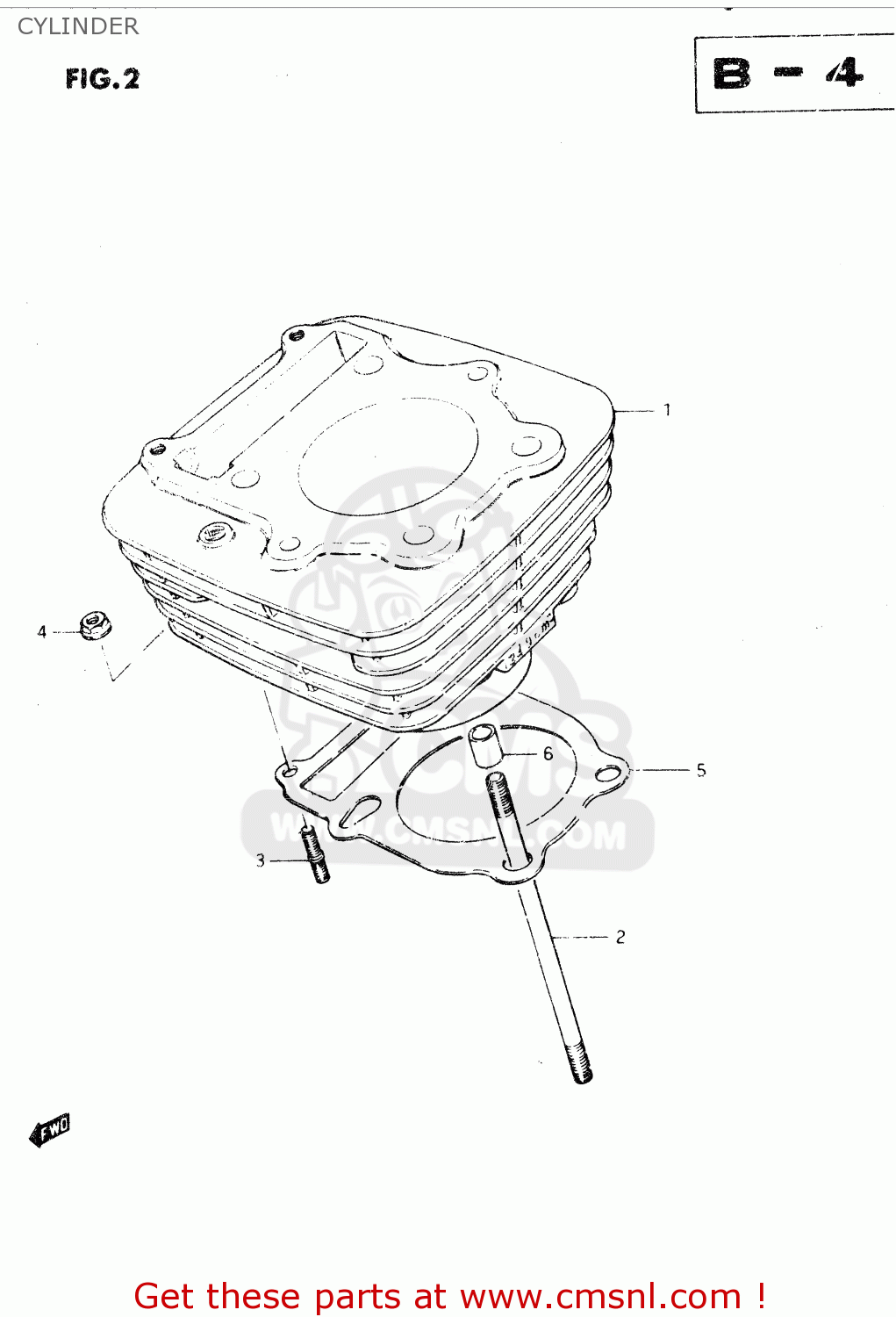

Cylinder diagram DR250S 1982 (Z)

CYLINDER DR250S 1982 (Z)

CYLINDER DR250S 1982 (Z)

prices are in EUR

ref

part #

description

quantity

1-1

1121038210
ref: 1-1

CYLINDER

€ 1,003.50

1-2

1121038230
ref: 1-2
E4

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0142106255
ref: 3

STUD 6X25

€ 2.00

4

0831616065
ref: 4

NUT

€ 2.50

5

1124138201
ref: 5

GASKET,CYLINDER (MCA)

€ 9.50

6

0920613001
ref: 6

PIN

€ 2.50
