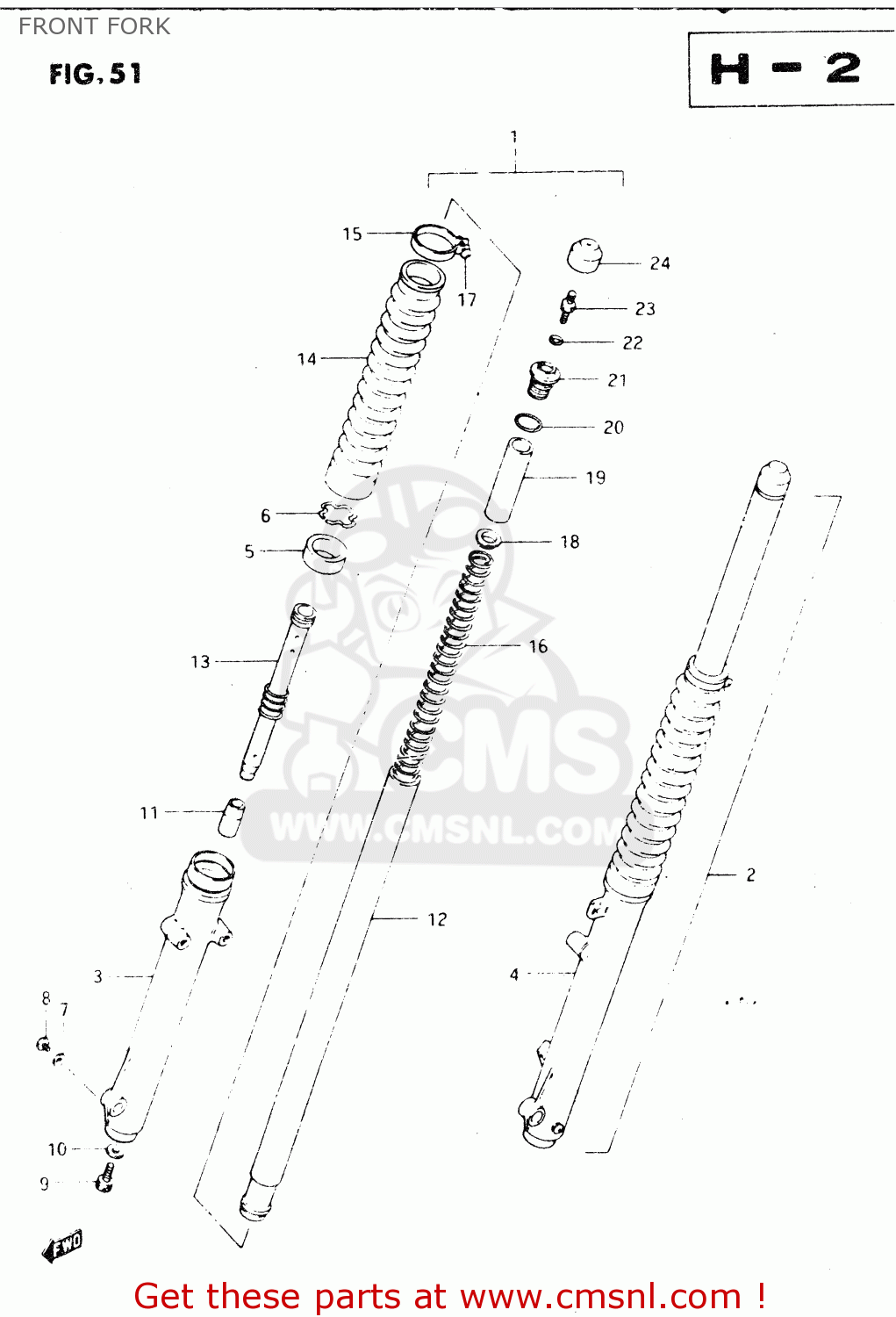

FRONT FORK

ref

part #

description

quantity

1

5110338210
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 307.50

2

5110438210
ref: 2

DAMPER ASSEMBLY,LEFT

€ 192.50

3

5113038210
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 166.00

4

5114038210
ref: 4

TUBE,FORK,LEFT,OUTER

€ 166.00

5

5115345421
ref: 5
FROM 51153-45420

OIL SEAL,FRONT FORK

€ 15.00

6

5115630400
ref: 6

5115630400

7

5118303010
ref: 7

GASKET,DRAIN,PLUG (NAS)

€ 3.00

8

0211204088
ref: 8

SCREW

€ 1.50

9

5114716510
ref: 9

BOLT,FORK CYLINDER(10X25)

€ 3.50

10

5114841310
ref: 10

GASKET (NAS)

€ 2.50

11

5119541210
ref: 11

PIECE,OIL LOCK

€ 12.00

12

5111038210
ref: 12

TUBE,INNER

€ 139.00

13

5114630400
ref: 13

CYLINDER,FRONT FORK

€ 0.00

14

5157130540
ref: 14

BOOT

€ 45.00

15

5157541410
ref: 15

BAND,BOOT

€ 8.00

16

5117138210
ref: 16

SPRING

€ 30.50

17

0211204168
ref: 17

SCREW

€ 1.00

18

5117238010
ref: 18

GUIDE,FRONT FORK SPRING C

€ 9.50

19

5117638200
ref: 19

COLLAR,SPRING

€ 0.00

20

5111716310
ref: 20

O RING

€ 4.50

21

5135140630
ref: 21

CAP,FORK INNER TUBE

€ 23.50

22

5111714210
ref: 22

O-RING

€ 2.50

23

5129314200
ref: 23

VALVE,FRONT FORK AIR

€ 15.50

24

5118941220
ref: 24

CAP

€ 6.00

all assemblies
