FUEL TANK (MODEL Z)
DR250S 1982 (Z)

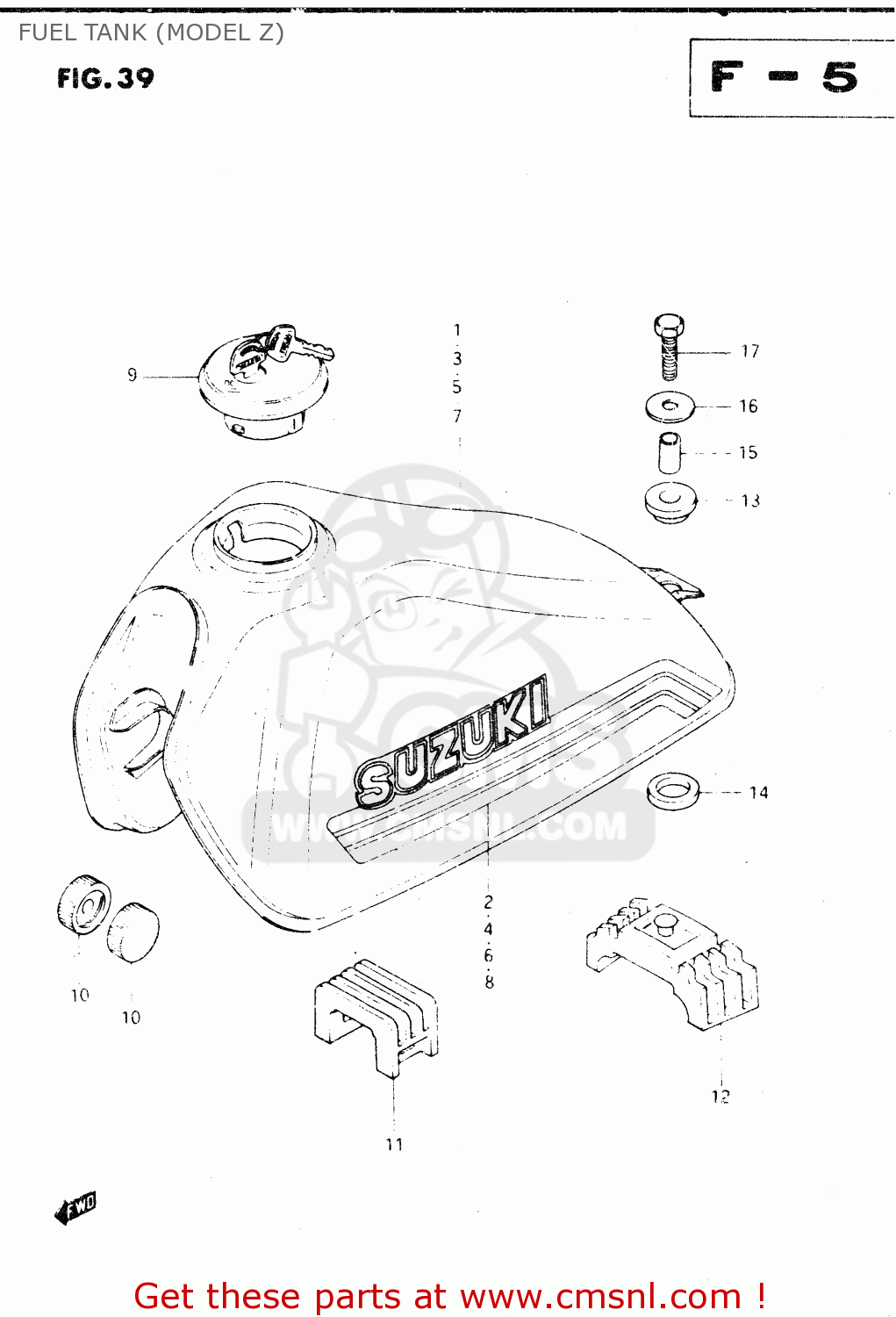

Fuel tank (model z) diagram DR250S 1982 (Z)
FUEL TANK (MODEL Z) DR250S 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
4410038201019
ref: 1
TANK, FUEL (BLACK)
€ 250.50
2
681103820083J
ref: 2
TAPE SET
€ 0.00
3
441003820104Y
ref: 3
TANK, FUEL (BLUE)
€ 250.50
4
681103820084T
ref: 4
TAPE SET
€ 29.50
5
4410038201163
ref: 5
TANK, FUEL (YELLOW)
€ 250.50
6
681103820067H
ref: 6
TAPE SET,FUEL TANK
€ 34.50
7
441003820107P
ref: 7
TANK, FUEL (RED)
€ 250.50
8
681103820083M
ref: 8
TAPE SET
€ 38.50
9
4420030704
ref: 9
CAP SET,FUEL TANK
€ 112.00
10
0932910016
ref: 10
CUSHION
€ 3.00
11
4454138200
ref: 11
CUSHION,TANK UPR FR
€ 6.00
12
4454238200
ref: 12
CUSHION,FUEL TANK,REAR
€ 11.50
13
0932012010
ref: 13
CUSHION
€ 3.00
14
0932012023
ref: 14
CUSHION
€ 2.50
15
0918008067
ref: 15
SPACER(8.5X12X19)
€ 2.50
16
0916008002
ref: 16
WASHER (8.5X29X1.6)
€ 2.00
17
0110708308
ref: 17
BOLT (8X30)
€ 2.50
