MUFFLER
DR250S 1982 (Z)

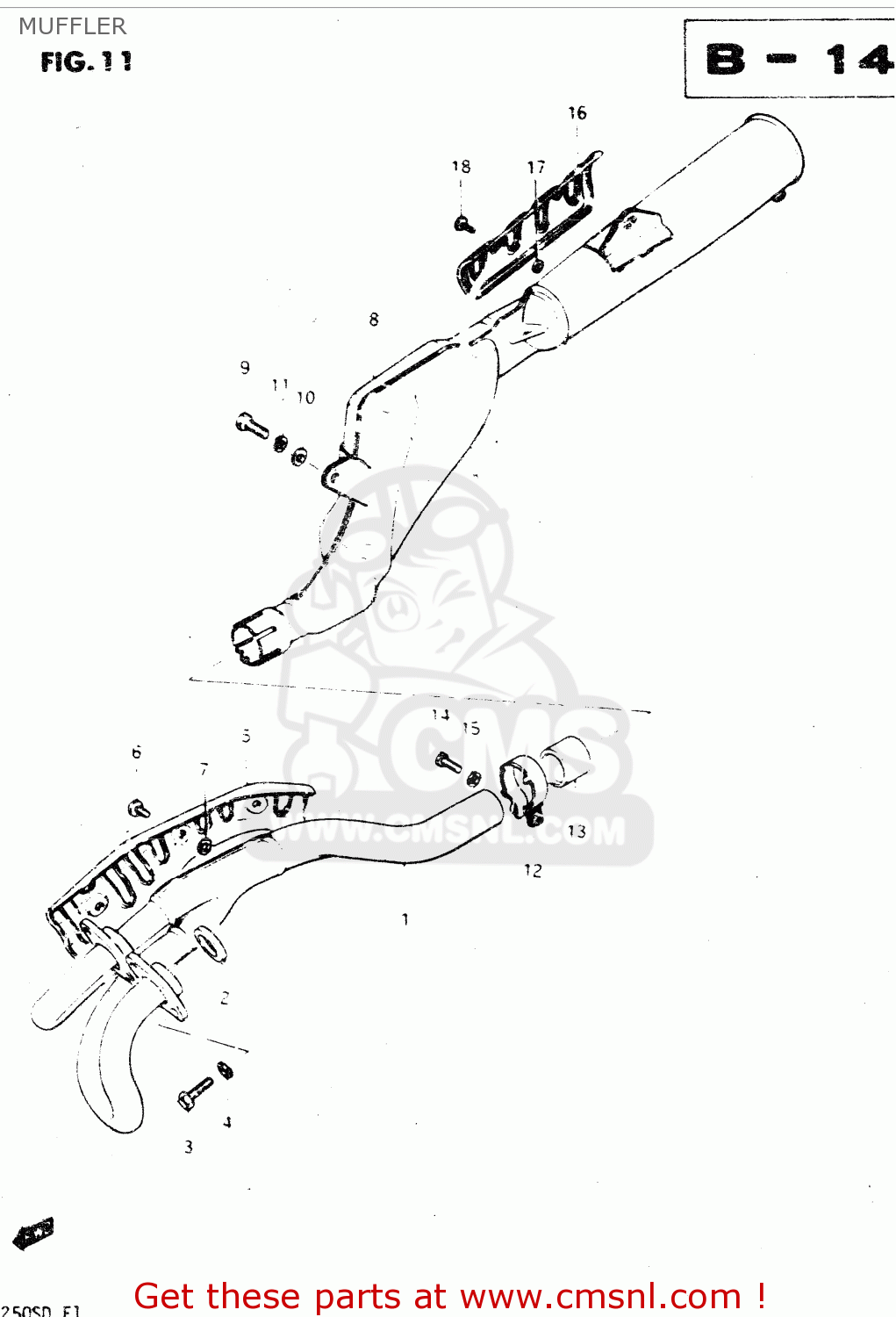

Muffler diagram DR250S 1982 (Z)
MUFFLER DR250S 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
1415038201
ref: 1
FROM 14150-38200
PIPE,EXHAUST
€ 144.50
2
1418103310
ref: 2
GASKET,EXHAUST PIPE (NAS)
€ 7.00
3
0110706255
ref: 3
BOLT
€ 2.50
4
0832121065
ref: 4
LOCK WASHER
€ 2.00
5
1418638200
ref: 5
COVER,EXHAUST PIPE
€ 57.00
6
0214206105
ref: 6
SCREW
€ 2.00
7
0916806005
ref: 7
GASKET 6.2X12X1.5 (MCA)
€ 2.00
8-1
1430038200
ref: 8-1
MUFFLER ASSY
€ 551.00
8-2
1430038220
ref: 8-2
E22
BODY,MUFFLER
€ 551.00
9
0110708205
ref: 9
BOLT
€ 2.00
10
0832211085
ref: 10
WASHER,8.5X16X
€ 1.50
11
0832121085
ref: 11
LOCK WASHER
€ 2.50
12
1445932400
ref: 12
CLAMP
€ 14.00
13
1477138200
ref: 13
CONNECTOR,MUFFLER
€ 56.50
14
0910008195
ref: 14
BOLT 8X35
€ 2.50
15
0832211085
ref: 15
WASHER,8.5X16X
€ 1.50
16
1478138200
ref: 16
COVER,MUFFLER
€ 11.50
17
0916806005
ref: 17
GASKET 6.2X12X1.5 (MCA)
€ 2.00
18
0214206105
ref: 18
SCREW
€ 2.00
