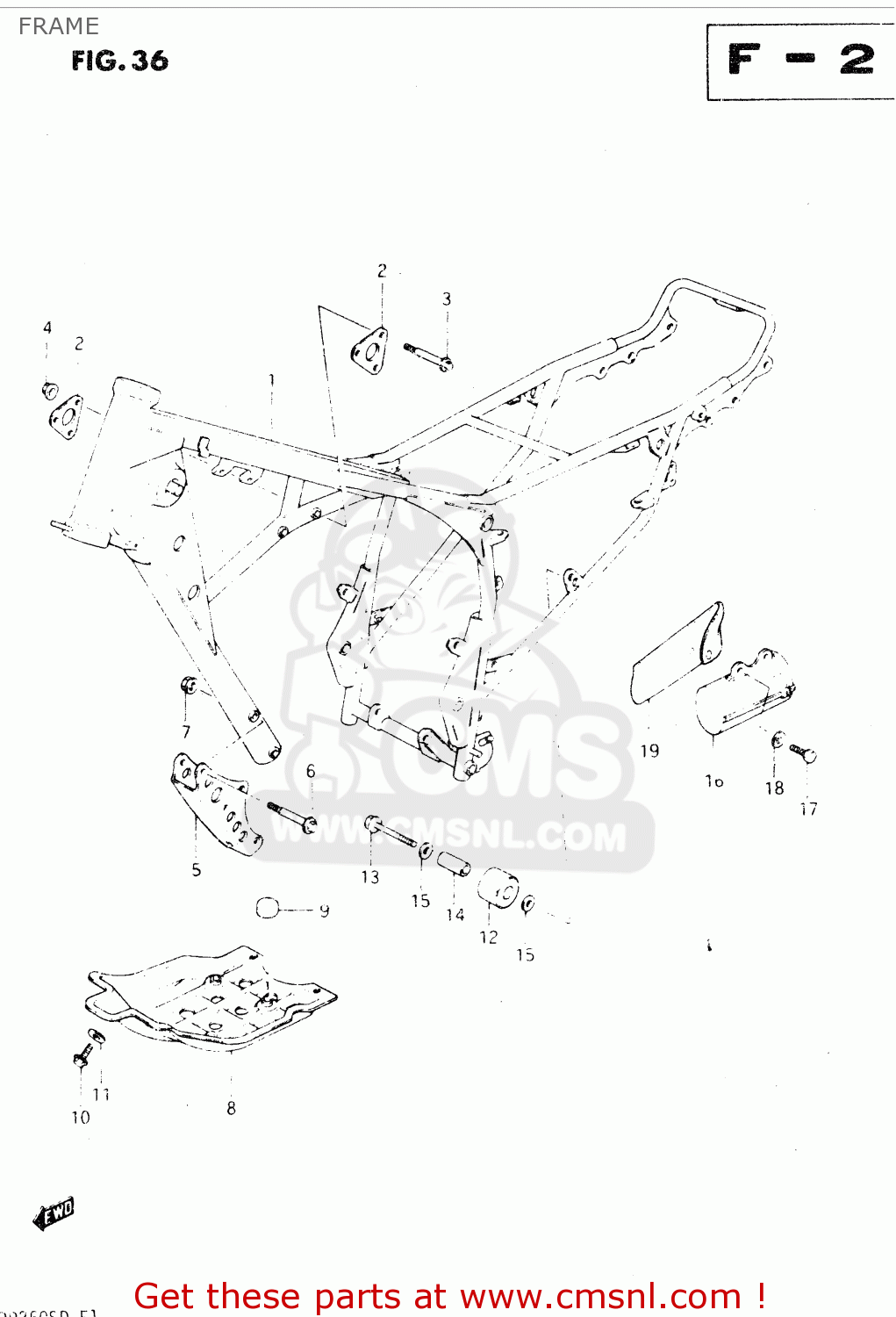

FRAME

ref

part #

description

quantity

1-1

4110038200019
ref: 1-1
MODEL Z

FRAME

€ 590.00

1-2

4110038201019
ref: 1-2
MODEL D

FRAME

€ 590.00

1-3

4110038240019
ref: 1-3
MODEL Z E18

FRAME (BLACK)

€ 0.00

1-4

4110038241019
ref: 1-4
MODEL D E18

FRAME (BLACK)

€ 0.00

1-5

4110038250019
ref: 1-5
MODEL Z E22

FRAME (BLACK)

€ 0.00

1-6

4110038251019
ref: 1-6
MODEL D E22

FRAME (BLACK)

€ 0.00

2

4199138200
ref: 2

PLATE,ENGINE MOUNT UPR

€ 8.00

3-1

0151708508
ref: 3-1
MODEL Z

BOLT

€ 3.50

3-2

0910308081
ref: 3-2
MODEL D

BOLT(8X50)

€ 3.50

4

0831931085
ref: 4

NUT

€ 2.50

5

4199238200
ref: 5

PLATE,ENGINE MOUNTING

€ 15.50

6-1

0152708657
ref: 6-1
MODEL Z

BOLT

€ 3.00

6-2

0910308075
ref: 6-2
MODEL D

BOLT 8X67

€ 6.50

7

0831931085
ref: 7

NUT

€ 2.50

8-1

4251038200126
ref: 8-1
MODEL Z

PROTECTOR,ENGINE

€ 75.50

8-2

4251038200019
ref: 8-2
MODEL D

PROTECTOR,ENGINE

€ 75.50

9

0932912003
ref: 9

CUSHION

€ 4.00

10

0151706128
ref: 10

BOLT

€ 2.50

11

0916006069
ref: 11

WASHER

€ 2.00

12

4391114200
ref: 12

ROLLER,CHAIN LENGTH CONTROL

€ 18.50

13

0910308043
ref: 13

BOLT(8X45)

€ 4.50

14

4391340400
ref: 14

SPACER,CHAIN LENGTH ROLLER

€ 8.00

15

0916008035
ref: 15

WASHER

€ 2.00

16

4155138200
ref: 16

HOLDER,TOOL

€ 17.00

17

0110706168
ref: 17

BOLT, UPPER

€ 3.00

18

0916006039
ref: 18

WASHER (6.5X18X1.6)

€ 2.00

19

0980000242
ref: 19

TOOL ASSY

€ 55.00
