HEADLAMP (E24)

DR250S 1982 (Z)

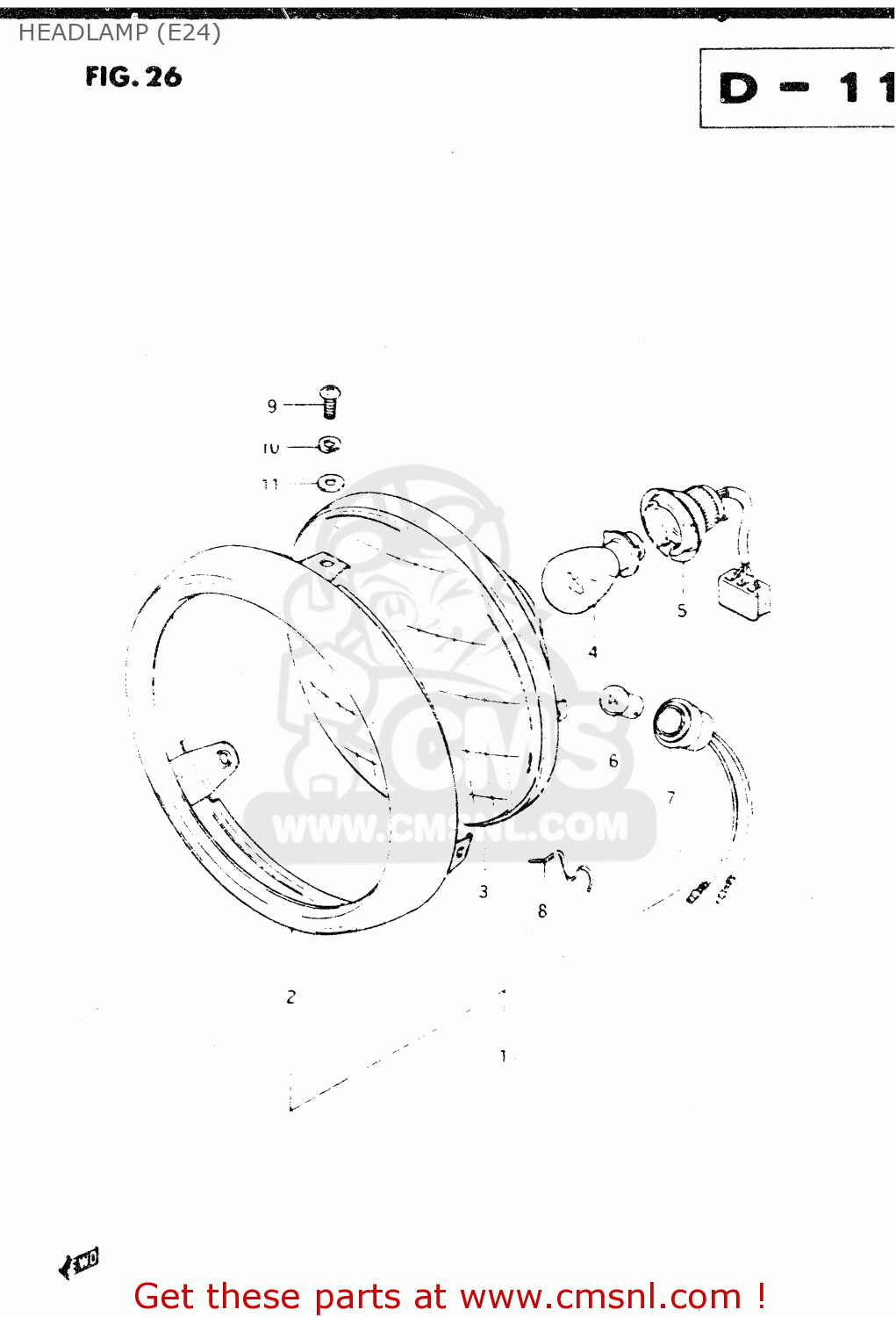

Headlamp (e24) diagram DR250S 1982 (Z)

HEADLAMP (E24) DR250S 1982 (Z)

HEADLAMP (E24) DR250S 1982 (Z)

prices are in EUR

ref

part #

description

quantity

1

3510037120
ref: 1

HEADLAMP ASSY

€ 71.50

2

3511126440
ref: 2

RIM

€ 46.50

3

3512132440
ref: 3

UNIT

€ 55.00

4

0947106043
ref: 4

BULB(6V,35/35W)

€ 7.00

5

3517144270
ref: 5

SOCKET

€ 34.50

6

0947106002
ref: 6

BULB(6V/3W)

€ 2.50

7

3611830500
ref: 7

SOCKET

€ 10.00

8

3517233630
ref: 8

SPRING

€ 4.00

9

0211204128
ref: 9

SCREW

€ 1.50

10

0832121048
ref: 10

LOCK WASHER

€ 2.00

11

0832221048
ref: 11

WASHER

€ 2.00
