REAR COMBINATION LAMP (E2, E4, E21, E25)
DR250S 1982 (Z)

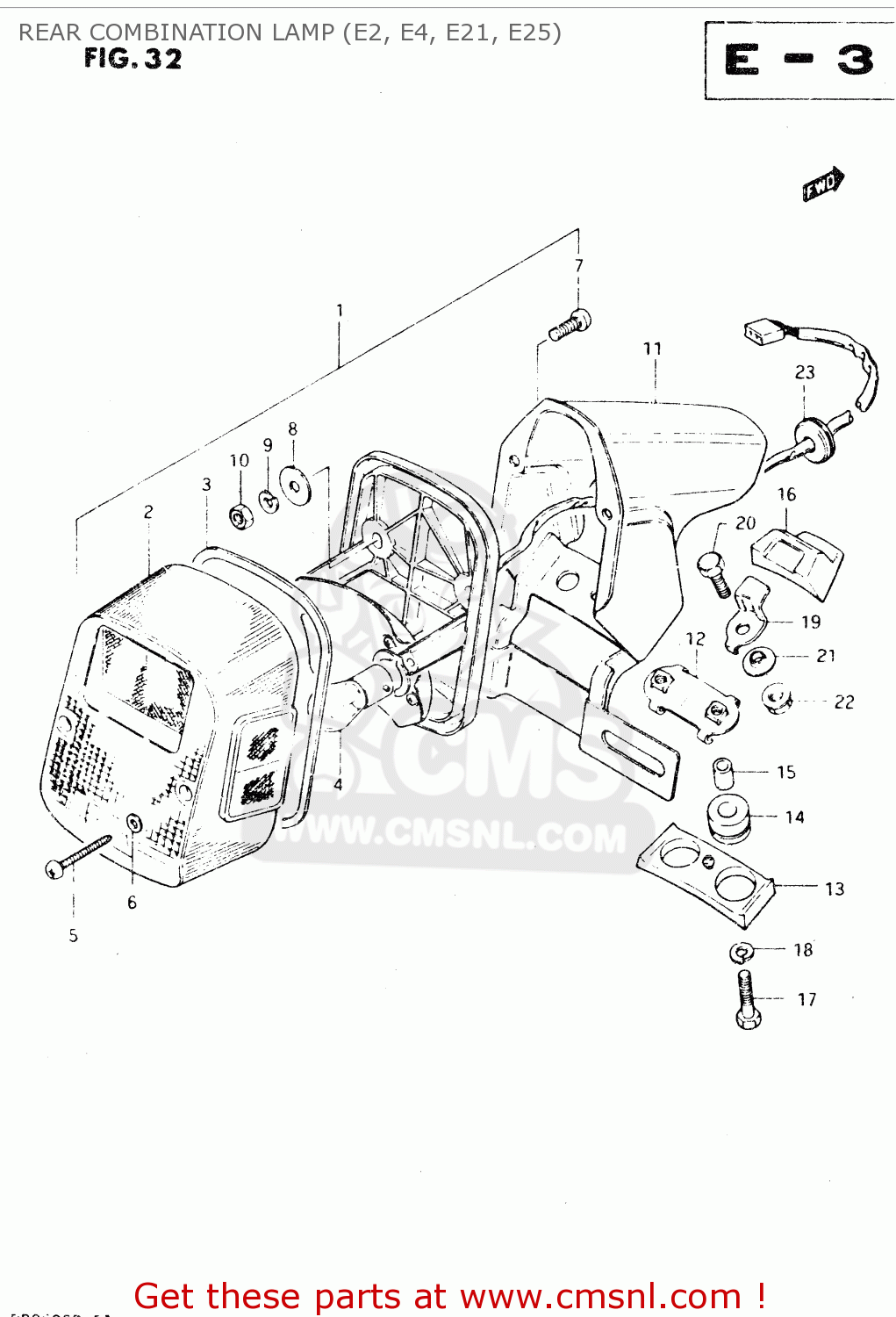

Rear combination lamp (e2, e4, e21, e25) diagram DR250S 1982 (Z)
REAR COMBINATION LAMP (E2, E4, E21, E25) DR250S 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
3572038220
ref: 1
LAMP UNIT, REAR COMBINATION
€ 149.50
2
3571238221
ref: 2
FROM 35712-38220
LENS,RR COMBI
€ 50.00
3
3571338210
ref: 3
GASKET (NAS)
€ 4.50
4
0947112057
ref: 4
BULB 12V21/5W
€ 6.00
5
0321104258
ref: 5
SCREW TAPP.
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0211205168
ref: 7
SCREW
€ 2.50
8
3572736510
ref: 8
WASHER,REAR COMBINATION LAMP
€ 2.00
9
0832121058
ref: 9
LOCK WASHER
€ 2.00
10
0831011058
ref: 10
NUT
€ 2.50
11
3573038210
ref: 11
BRACKET UNIT,TAIL LAMP
€ 70.50
12
3571638210
ref: 12
PLATE
€ 11.50
13
3576538210
ref: 13
CUSHION
€ 3.50
14
3576530950
ref: 14
CUSHION
€ 18.00
15
3576638210
ref: 15
SPACER
€ 3.00
16
3571738210
ref: 16
CUSHION,REAR COMBINATION LAMP
€ 6.50
17
0110706258
ref: 17
BOLT
€ 2.00
18
0832121068
ref: 18
LOCK WASHER
€ 2.50
19
3579337201
ref: 19
PLATE,RR COMBINATION LAMP
€ 2.00
20
0110706168
ref: 20
BOLT, UPPER
€ 3.00
21
0916906025
ref: 21
WASHER,LOCK
€ 3.00
22
0831626066
ref: 22
NUT
€ 2.00
23
0930809004
ref: 23
GROMMET
€ 0.00
