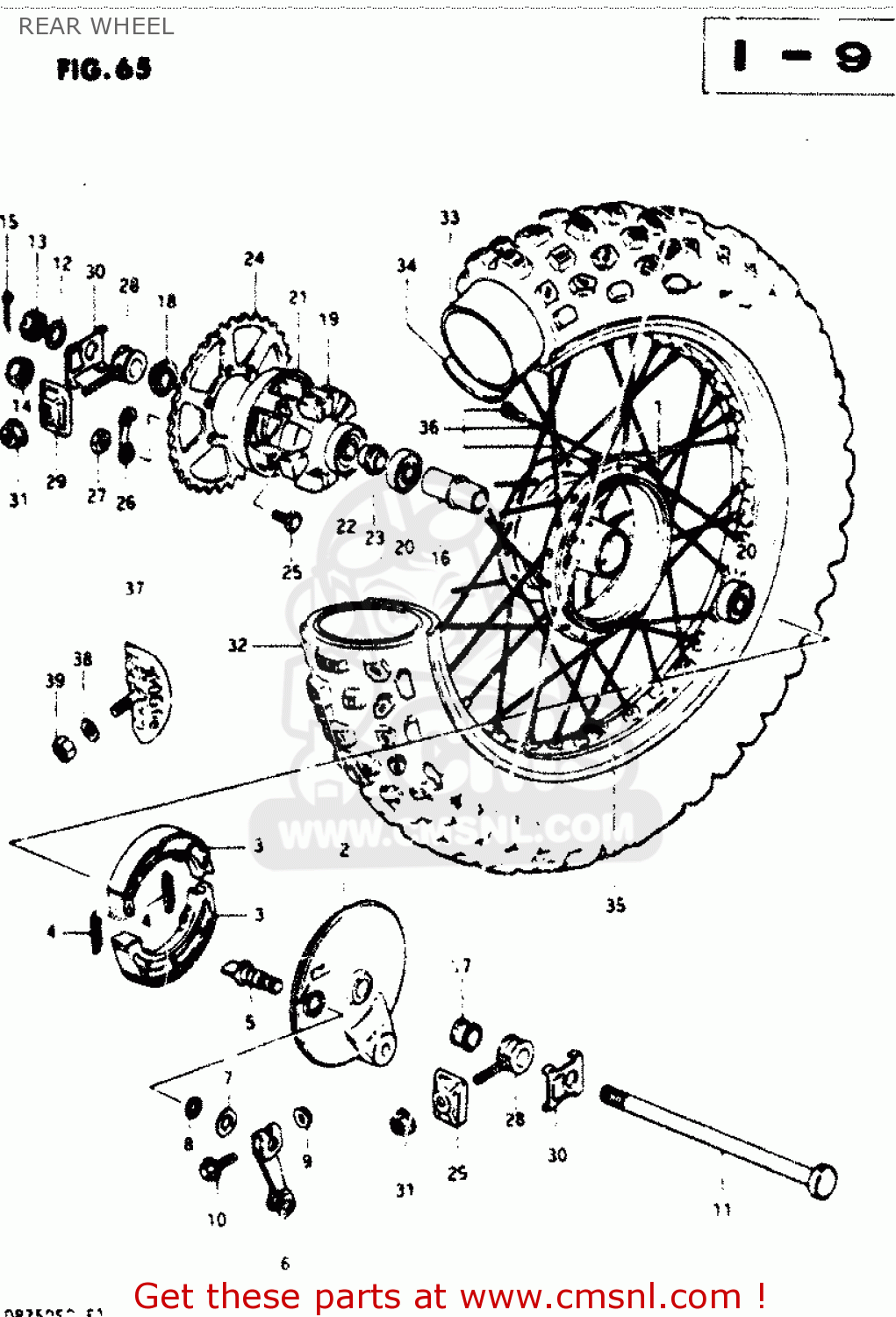

REAR WHEEL

ref

part #

description

quantity

1

6411038200
ref: 1

DRUM,REAR HUB

€ 268.00

2

6421038200
ref: 2

PANEL,REAR HUB

€ 139.00

3

5441007002
ref: 3

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129303
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445129900
ref: 6

LEVER,REAR BRAKE CAM

€ 32.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0831616068
ref: 9

NUT

€ 2.50

10

0151706358
ref: 10

BOLT 6X35

€ 2.50

11

6471138200
ref: 11

AXLE,REAR

€ 51.00

12

0832221168
ref: 12

WASHER

€ 2.00

13

0914116001
ref: 13

NUT

€ 6.50

14

0915916002
ref: 14
E22

NUT

€ 5.00

15

0411140308
ref: 15

PIN,COTTER

€ 1.50

16

6473140600
ref: 16

SPACER,REAR HUB BEARING

€ 0.00

17

6474138200
ref: 17

SPACER,REAR AXLE,RIGHT

€ 7.50

18

6475038200
ref: 18

SPACER,REAR AXLE

€ 9.00

19-1

6465138200
ref: 19-1
MODEL Z

CUSHION,REAR DRUM

€ 5.50

19-2

6465138201
ref: 19-2
MODEL D

ABSORBER,RR SHOCK

€ 5.50

20

0814362037
ref: 20

BEARING

€ 18.50

21

6461138200
ref: 21

DRUM,REAR SPROCKET MOUNT

€ 111.00

22

0812362047
ref: 22

BEARING

€ 17.00

23

6473338200
ref: 23

SPACER,REAR HUB BEARING

€ 10.50

24

6451138200
ref: 24

SPROCKET,RR(NT:42)

€ 39.50

25

0911908036
ref: 25

BOLT

€ 5.00

26

0916900011
ref: 26

WASHER

€ 0.00

27

0831012088
ref: 27

NUT

€ 2.00

28

6141038200
ref: 28

ADJUSTER,CHAIN

€ 17.50

29

6142138200
ref: 29

PLATE,CHAIN ADJUSTER

€ 3.50

30

6471238200
ref: 30

WASHER,CHAIN ADJUSTER GUIDE

€ 3.50

31

0831931088
ref: 31

NUT

€ 2.50

32-1

6510038210
ref: 32-1
IRC

TIRE

€ 0.00

32-2

6510038230
ref: 32-2
BS

TIRE 4.60-17

€ 0.00

32-3

6510032470
ref: 32-3
IRC E2,E4,E6,E18,E21

TIRE, REAR (4.00X18)

€ 0.00

32-4

6510032490
ref: 32-4
BS E2,E4,E6,E18,E21,

TIRE, REAR (4.00X18)

€ 0.00

33-1

6520044300
ref: 33-1
IRC

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

33-2

6520038220
ref: 33-2
BS

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

33-3

6520049015
ref: 33-3
IRC E2,E4,E6,E18,E21

TUBE,INNER

€ 39.00

33-4

6520045030
ref: 33-4
BS E2,E4,E6,E18,E21,

TUBE ASSEMBLY,WHEEL,INNER

€ 39.00

34-1

6526144300
ref: 34-1
IRC

PROTECTOR,WHEEL,INNER

€ 3.50

34-2

5526120330
ref: 34-2
BS

PROTECTOR,WHEEL,INNER

€ 3.50

34-3

6526115010
ref: 34-3
IRC E2,E4,E6,E18,E21

PROTECTOR,WHEEL,INNER

€ 3.50

34-4

6526115030
ref: 34-4
BS E2,E4,E6,E18,E21,

PROTECTOR,WHEEL,INNER

€ 3.50

35-1

6531138240
ref: 35-1
MODEL Z

RIM, WHEEL (215X17AL) (GOLD)

€ 248.50

35-2

6531138240
ref: 35-2
MODEL D

RIM, WHEEL (215X17AL) (GOLD)

€ 248.50

35-3

6531138210
ref: 35-3
MODEL Z E6

RIM, WHEEL (215X18AL)

€ 0.00

35-4

6531138230
ref: 35-4
E2,E4,E18,E21,E22,E2

RIM, WHEEL (215X18AL) (GOLD)

€ 248.50

35-5

6531138240
ref: 35-5
E24

RIM, WHEEL (215X17AL) (GOLD)

€ 248.50

36-1

6532038200
ref: 36-1

SPOKE ASSY,RR WHEEL

€ 45.50

36-2

6532038210
ref: 36-2
E2,E4,E6,E18,E21,E22

SPOKE ASSY, REAR

€ 35.50

37-1

6527014200
ref: 37-1

STOPPER,BEAD

€ 38.00

37-2

6527046910
ref: 37-2
E2,E4,E6,E18,E21,E22

STOPPER,BEAD

€ 30.50

38

0832211088
ref: 38

WASHER

€ 2.00

39

0831012088
ref: 39

NUT

€ 2.00
