REAR COMBINATION LAMP (E22)
DR250S 1982 (Z)

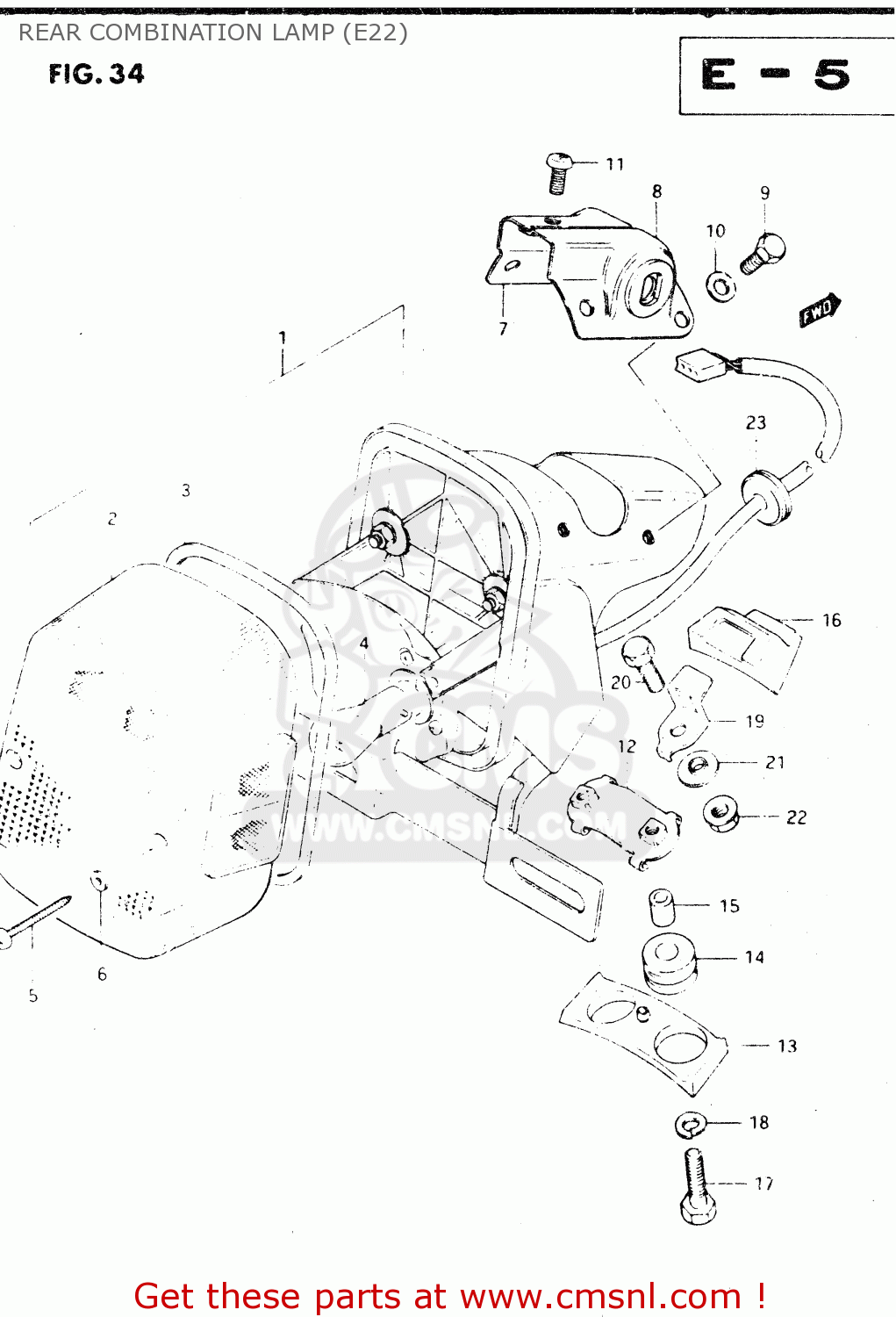

Rear combination lamp (e22) diagram DR250S 1982 (Z)
REAR COMBINATION LAMP (E22) DR250S 1982 (Z)
×
prices are in EUR
ref
part #
description
quantity
1
3571038290
ref: 1
LAMP ASSY, REAR COMBINATION
€ 193.50
2
3571238221
ref: 2
FROM 35712-38220
LENS,RR COMBI
€ 50.00
3
3571338210
ref: 3
GASKET (NAS)
€ 4.50
4
0947112046
ref: 4
EXECUTED LOCALLY
BULB(12V21/5W)
€ 1.50
5
0321104258
ref: 5
SCREW TAPP.
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3571638290
ref: 7
PLATE, RH
€ 0.00
8
3573638290
ref: 8
PLATE, LH
€ 0.00
9
0110706128
ref: 9
BOLT
€ 2.00
10
0832221068
ref: 10
WASHER
€ 2.00
11
0214206128
ref: 11
SCREW
€ 1.50
12
3571638210
ref: 12
PLATE
€ 11.50
13
3576538210
ref: 13
CUSHION
€ 3.50
14
3576530950
ref: 14
CUSHION
€ 18.00
15
3576638210
ref: 15
SPACER
€ 3.00
16
3571738210
ref: 16
CUSHION,REAR COMBINATION LAMP
€ 6.50
17
0110706258
ref: 17
BOLT
€ 2.00
18
0832121068
ref: 18
LOCK WASHER
€ 2.50
19
3579337201
ref: 19
PLATE,RR COMBINATION LAMP
€ 2.00
20
0110706168
ref: 20
BOLT, UPPER
€ 3.00
21
0916906025
ref: 21
WASHER,LOCK
€ 3.00
22
0831626066
ref: 22
NUT
€ 2.00
23
0930809004
ref: 23
GROMMET
€ 0.00
