MAGNETO

DR250S 1982 (Z)

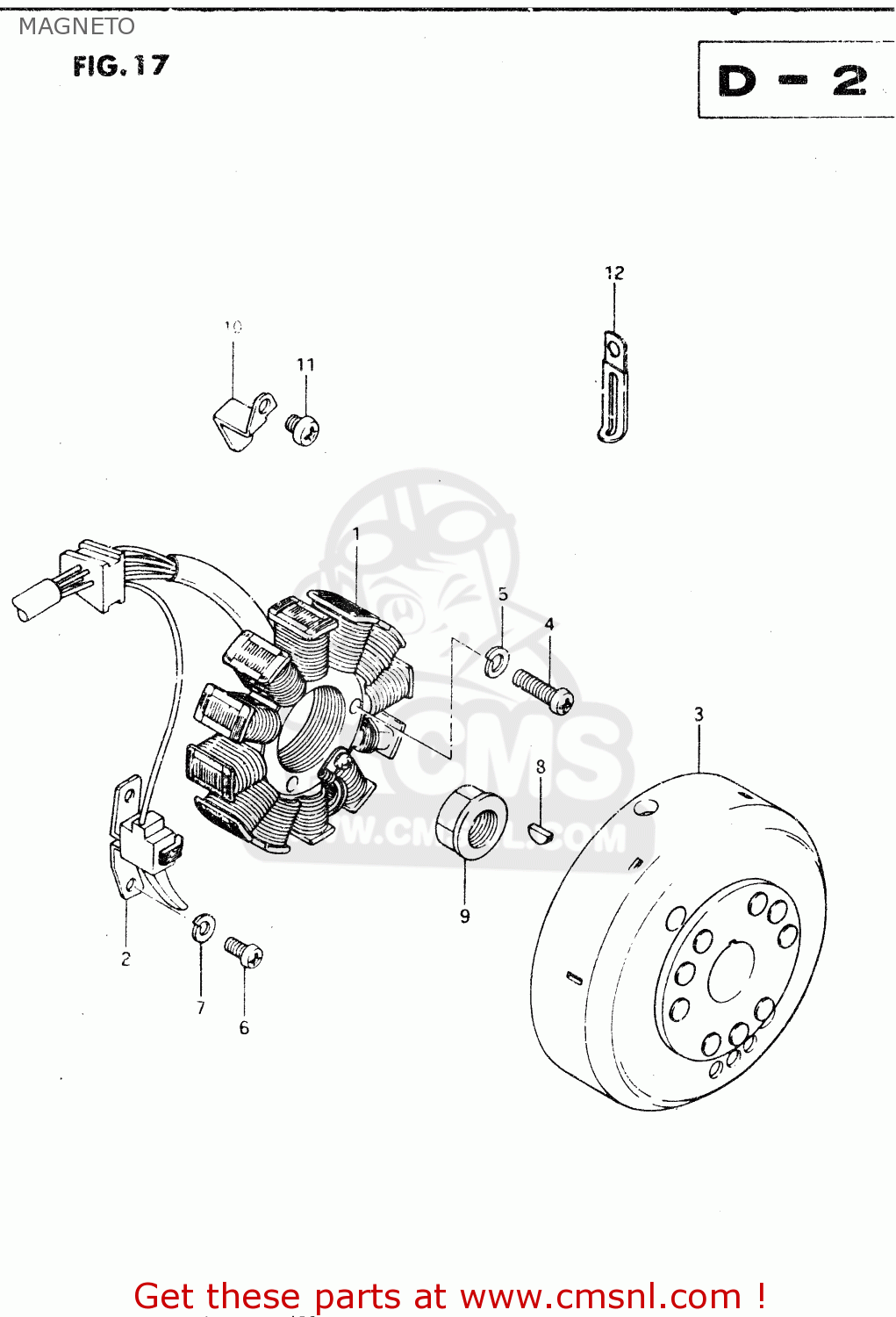

Magneto diagram DR250S 1982 (Z)

MAGNETO DR250S 1982 (Z)

MAGNETO DR250S 1982 (Z)

prices are in EUR

ref

part #

description

quantity

1

3210138210
ref: 1

STARTER ASSY

€ 444.00

2

3215038210
ref: 2

COIL,PICK UP

€ 62.50

3

3210238210
ref: 3

ROTOR,FLYWHEEL

€ 247.00

4

0211206258
ref: 4

SCREW

€ 2.00

5

0832121068
ref: 5

LOCK WASHER

€ 2.50

6

0211205108
ref: 6

SCREW

€ 2.00

7

0832121058
ref: 7

LOCK WASHER

€ 2.00

8

0834131049
ref: 8

KEY 4MM

€ 3.50

9

3179249200
ref: 9

NUT,GENERATOR ROTOR

€ 10.00

10

3237138200
ref: 10

CLAMP,MAGNETO LEAD WIRE

€ 0.00

11

0211206088
ref: 11

SCREW

€ 2.00

12

0940406401
ref: 12

CLAMP L:35

€ 2.50
