CAM CHAIN

DR350SH 1994 (R) AUSTRALIA (E22)

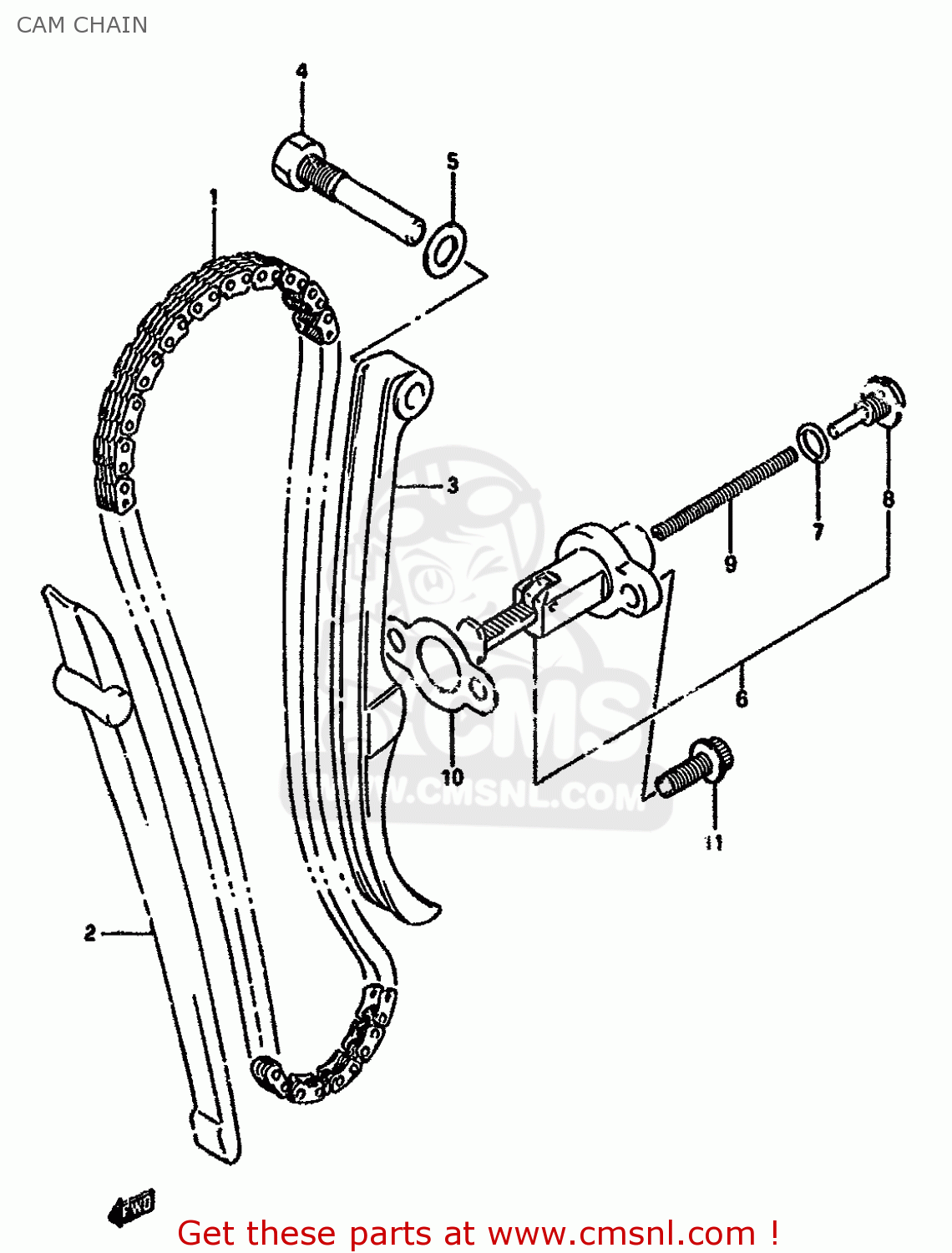

Cam chain diagram DR350SH 1994 (R) AUSTRALIA (E22)

prices are in EUR

ref

part #

description

quantity

1276019B71
ref: 1
108LE,-12760-19B70-1

CHAIN,CAMSHAFT DRIVE

€ 59.50

1277114D00
ref: 2

GUIDE,CAM CHAIN

€ 34.50

1281114D00
ref: 3

TENSIONER,CAM CHAIN

€ 30.00

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6-1

1283029B21
ref: 6-1
MODEL L/M/N

ADJUSTER ASSEMBLY,TENSIONER

€ 72.50

6-2

1283029B11
ref: 6-2
MODEL P/R

ADJUSTER ASSY,TENSIONER

€ 72.50

1283202A00
ref: 7

O RING

€ 2.00

1283426B00
ref: 8

PLUG,ADJUSTER

€ 8.00

1283329B00
ref: 9

SPRING

€ 2.50

1283714D00
ref: 10

GASKET,TENSIONER ADJUSTER(NA) (NAS)

€ 3.00

11-1

0712006205
ref: 11-1
MODEL L/M/N/P

PLUG ,6X20

€ 3.50

11-2

0712006203
ref: 11-2
MODEL R

BOLT

€ 3.50
