WIRING HARNESS
DR350SH 1994 (R) AUSTRALIA (E22)

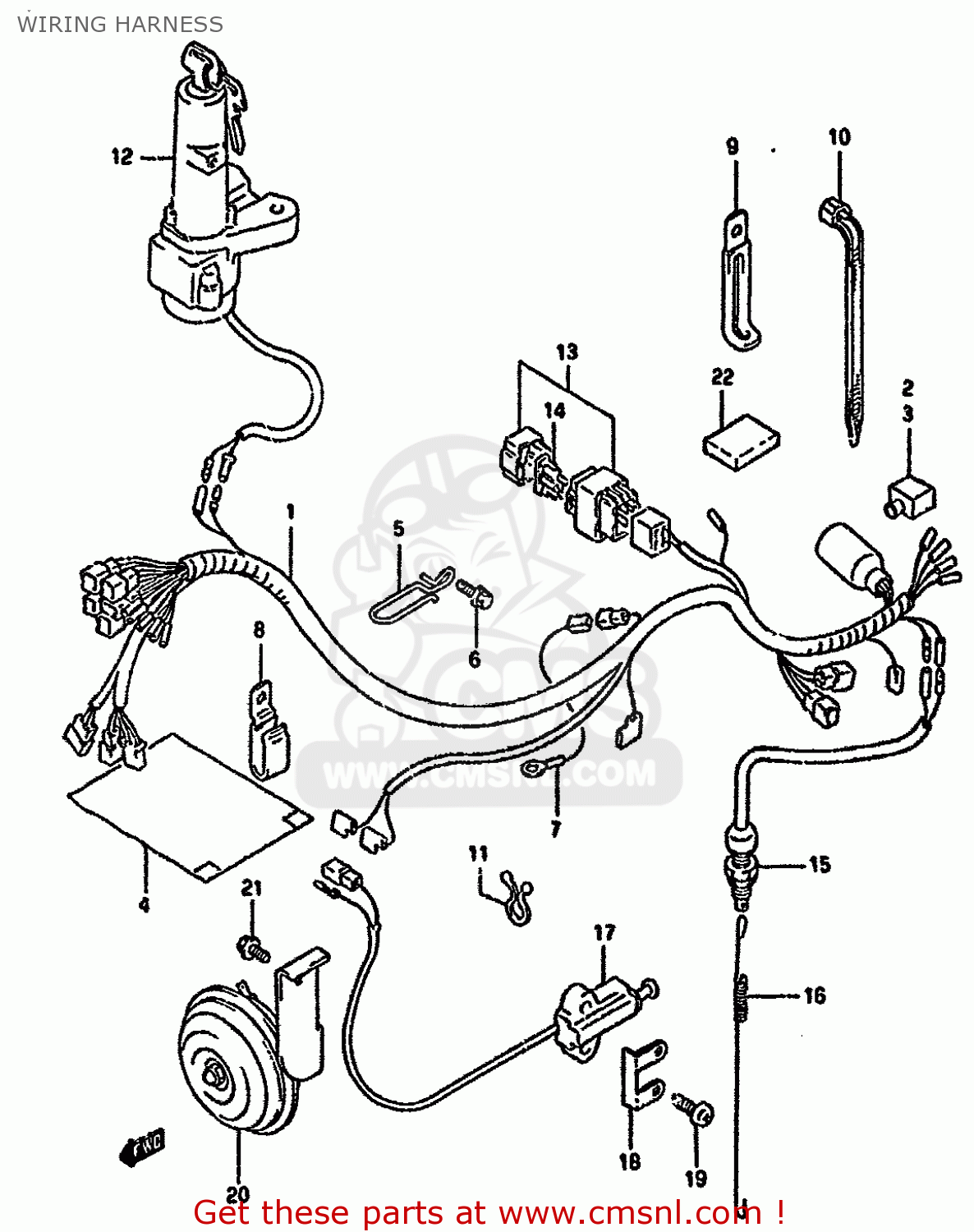

Wiring harness diagram DR350SH 1994 (R) AUSTRALIA (E22)
WIRING HARNESS DR350SH 1994 (R) AUSTRALIA (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661014D10
ref: 1-1
MODEL L/M
HARNESS,WIRING
€ 296.50
1-2
3661014D11
ref: 1-2
MODEL N E34,E39,E94
HARNESS,WIRING
€ 296.50
1-3
3661014D20
ref: 1-3
MODEL L/M E22
HARNESS,WIRING
€ 296.50
1-4
3661014D21
ref: 1-4
E24,MODEL N E22
HARNESS,WIRING
€ 296.50
1-5
3661014D50
ref: 1-5
MODEL P/R
HARNESS,WIRING
€ 325.00
2
3362403D00
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 6.00
3
3362411300
ref: 3
CAP,BATTERY PLUS TERMINAL
€ 3.00
4-1
3661815D00
ref: 4-1
MODEL L/M
COVER,WIRING HARNESS
€ 12.00
4-2
3661815D01
ref: 4-2
MODEL N/P
COVER,WIRING HARNESS
€ 12.00
4-3
3661815D11
ref: 4-3
MODEL L/M/N/P
COVER,WIRING HARNESS
€ 12.00
4-4
3661815D20
ref: 4-4
MODEL R
COVER,WIRING HARNESS
€ 12.00
5-1
3661914D10
ref: 5-1
MODEL L/M
GUIDE,WIRING HARNESS
€ 5.00
5-2
3661915D11
ref: 5-2
MODEL N/P/R
GUIDE,WIRING HARNESS
€ 142.00
6-1
0151706105
ref: 6-1
MODEL L/M/N/P
BOLT
€ 2.50
6-2
0155006103
ref: 6-2
MODEL R
BOLT
€ 2.50
7
3685114D00
ref: 7
WIRE
€ 3.00
8
0940306307
ref: 8
CLAMP
€ 4.50
9-1
0940406422
ref: 9-1
CLAMP
€ 2.50
9-2
0940406424
ref: 9-2
MODEL L/M/N/P
CLAMP
€ 2.00
9-3
0940406426
ref: 9-3
MODEL R
CLAMP
€ 3.00
9-4
0940408402
ref: 9-4
CLAMP
€ 3.50
9-5
0940408405
ref: 9-5
CLAMP
€ 3.50
9-6
0940408404
ref: 9-6
CLAMP
€ 3.00
10-1
0940702401
ref: 10-1
CLAMP
€ 2.50
10-2
0940710404
ref: 10-2
CLAMP(L:100)
€ 4.00
10-3
0940714403
ref: 10-3
CLAMP(L:125)
€ 2.50
10-4
0940714409
ref: 10-4
CLAMP
€ 2.50
10-6
0940725401
ref: 10-6
CLAMP(L:235)
€ 4.00
11
0940800012
ref: 11
CLIP(ID:11.5)
€ 2.00
12
3711003D00
ref: 12
SWITCH ASSEMBLY,IGNITION
€ 58.50
13
3674004701
ref: 13
BOX ASSY,FUSE
€ 16.00
14
0948115101
ref: 14
FUSE(15A)
€ 1.50
15
3774014D00
ref: 15
SWITCH ASSY,STOP LAMP
€ 21.00
16
0944306080
ref: 16
SPRING
€ 4.00
17
3784048B21
ref: 17
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
18
3784114D00
ref: 18
PROTECTOR,SIDE STAND SWITCH
€ 4.50
19-1
0214206205
ref: 19-1
MODEL L/M/N/P
SCREW, CENTER
€ 2.00
19-2
0214206203
ref: 19-2
MODEL R
SCREW
€ 2.00
20-1
3850014D00
ref: 20-1
MODEL L
HORN ASSEMBLY
€ 54.50
20-2
3850014D01
ref: 20-2
MODEL M/N/P/R
HORN ASSEMBLY
€ 54.50
20-3
3850014D10
ref: 20-3
MODEL L E34
HORN ASSY
€ 0.00
20-4
3850014D11
ref: 20-4
MODEL M/N/P/R E34
HORN ASSY
€ 0.00
21-1
0151706164
ref: 21-1
MODEL L/M/N/P
BOLT
€ 2.50
21-2
0155006163
ref: 21-2
MODEL R
BOLT
€ 2.50
22
3692014D00
ref: 22
PROTECTOR,WIRING HARNESS
€ 5.50
