HEADLAMP (MODEL R)
DR350SH 1994 (R) AUSTRALIA (E22)

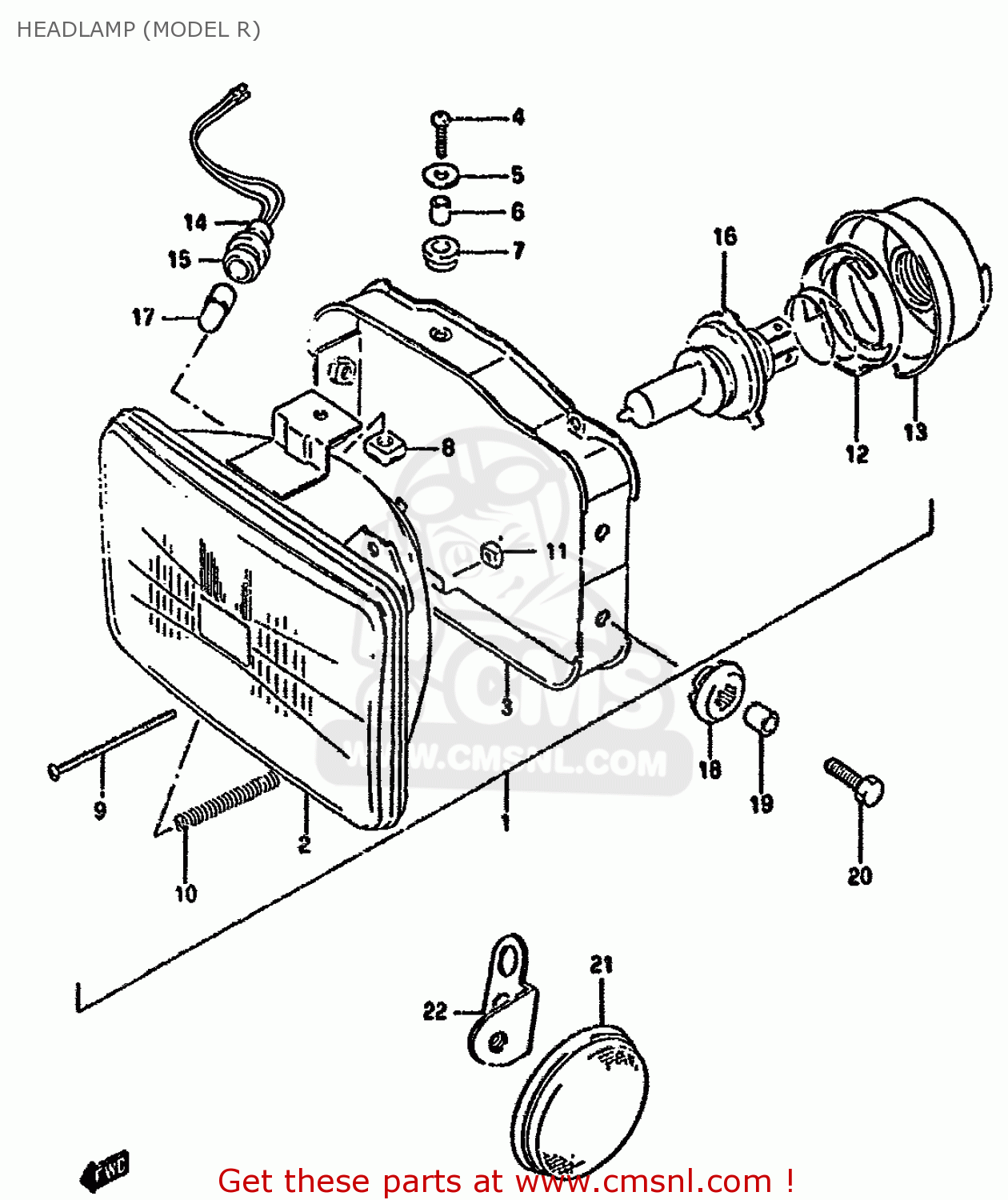

Headlamp (model r) diagram DR350SH 1994 (R) AUSTRALIA (E22)
HEADLAMP (MODEL R) DR350SH 1994 (R) AUSTRALIA (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510014A00999
ref: 1-1
HEADLAMP ASSY
€ 176.50
1-2
3510014A51999
ref: 1-2
E4,E18,E21,E22,E34,E
HEADLAMP ASSY
€ 175.50
1-3
3510014D00
ref: 1-3
E24
HEADLAMP ASSY
€ 0.00
2-1
3512114A00
ref: 2-1
LAMP UNIT
€ 102.00
2-2
3512114A51
ref: 2-2
E4,E18,E21,E22,E34,E
LAMP UNIT
€ 102.00
2-3
3512114D00
ref: 2-3
E24
LAMP UNIT
€ 0.00
3
3514114A00
ref: 3
HOUSING
€ 31.00
4
0211205207
ref: 4
SCREW
€ 3.00
5
3513845230
ref: 5
WASHER
€ 2.00
6
3513314A00
ref: 6
SPACER
€ 3.50
7
3513945230
ref: 7
CUSHION
€ 1.50
8
3513545900
ref: 8
NUT
€ 2.50
9
3515145900
ref: 9
SCREW
€ 4.00
10
3515449200
ref: 10
SPRING
€ 3.50
11
3513545600
ref: 11
NUT
€ 3.00
12
3513601A00
ref: 12
HOLDER,BULB
€ 6.00
13
3517301440
ref: 13
COVER,SOCKET
€ 10.00
14-1
3611844B00
ref: 14-1
SOCKET
€ 13.00
14-2
3611849320
ref: 14-2
E4,E18,E22,E34,E39,E
SOCKET
€ 12.00
15
3611622630
ref: 15
JOINT,RUBBER
€ 5.00
16-1
0947112060
ref: 16-1
BULB(12V60/55W,H4)
€ 8.00
16-2
0947112144
ref: 16-2
E94
BULB(12V60/55W ,YELLOW)
€ 0.00
17-1
0947112001
ref: 17-1
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
17-2
0947112063
ref: 17-2
E4,E18,E21,E22,E34,E
BULB(12V4W)
€ 6.00
18
0932009018
ref: 18
CUSHION
€ 2.00
19
0918006138
ref: 19
SPACER(6.3X9.1X11.5)
€ 1.00
20
0911606167
ref: 20
BOLT(6X20)
€ 2.00
21
3595014A00
ref: 21
E39
REFLECTOR,REFLEX FR
€ 15.00
22-1
3595614D00
ref: 22-1
E39
BRACKET,REFLECTOR
€ 0.00
22-2
3595714D00
ref: 22-2
E39
BRACKET
€ 0.00
22-1
3595614D00
ref: 22-1
E39
BRACKET,REFLECTOR
€ 0.00
22-2
3595714D00
ref: 22-2
E39
BRACKET
€ 0.00
