MAGNETO (MODEL P/R)

DR350SH 1994 (R) AUSTRALIA (E22)

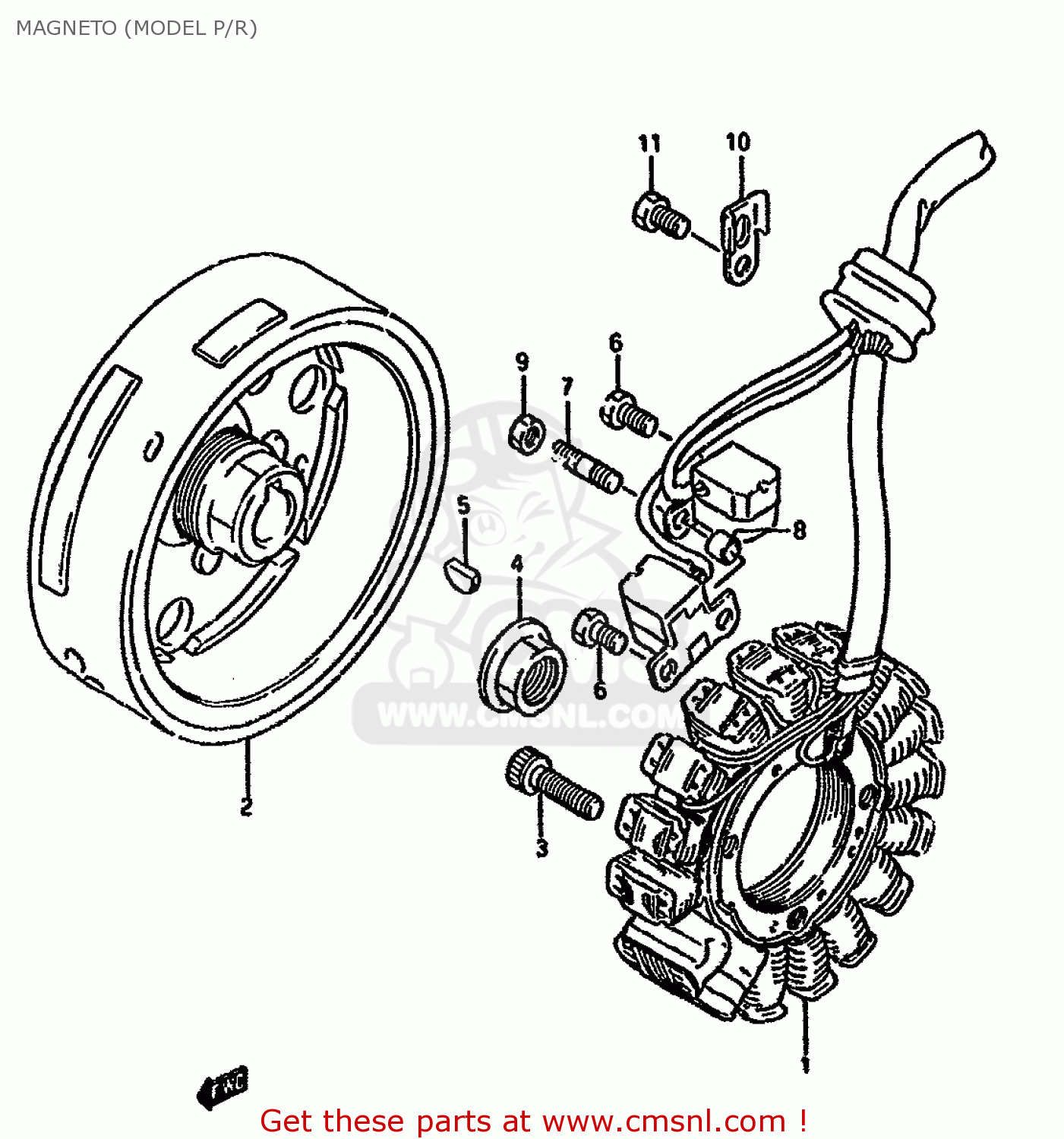

Magneto (model p/r) diagram DR350SH 1994 (R) AUSTRALIA (E22)

prices are in EUR

ref

part #

description

quantity

3210114D40
ref: 1

STATOR ASSEMBLY

€ 818.50

3210214D30
ref: 2

ROTOR

€ 621.00

3-1

0711006257
ref: 3-1
MODEL L/M/N/P

BOLT

€ 2.50

3-2

0713006253
ref: 3-2
MODEL R

BOLT,CL.COVER

€ 3.00

0915914015
ref: 4

NUT

€ 3.00

0942004008
ref: 5

KEY

€ 3.50

0910005019
ref: 6

BOLT(5X10)

€ 1.50

0910805014
ref: 7

BOLT,STUD(5X18)

€ 2.00

0918005009
ref: 8

SPACER (5.5X9.5X6.5)

€ 2.00

9-1

0831011057
ref: 9-1
MODEL L/M/N/P

NUT 5MM

€ 2.50

9-2

0831000053
ref: 9-2
MODEL R

NUT

€ 2.50

3149745000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0910005019
ref: 11

BOLT(5X10)

€ 1.50
