STAND-REAR BRAKE
DR350SH 1994 (R) AUSTRALIA (E22)

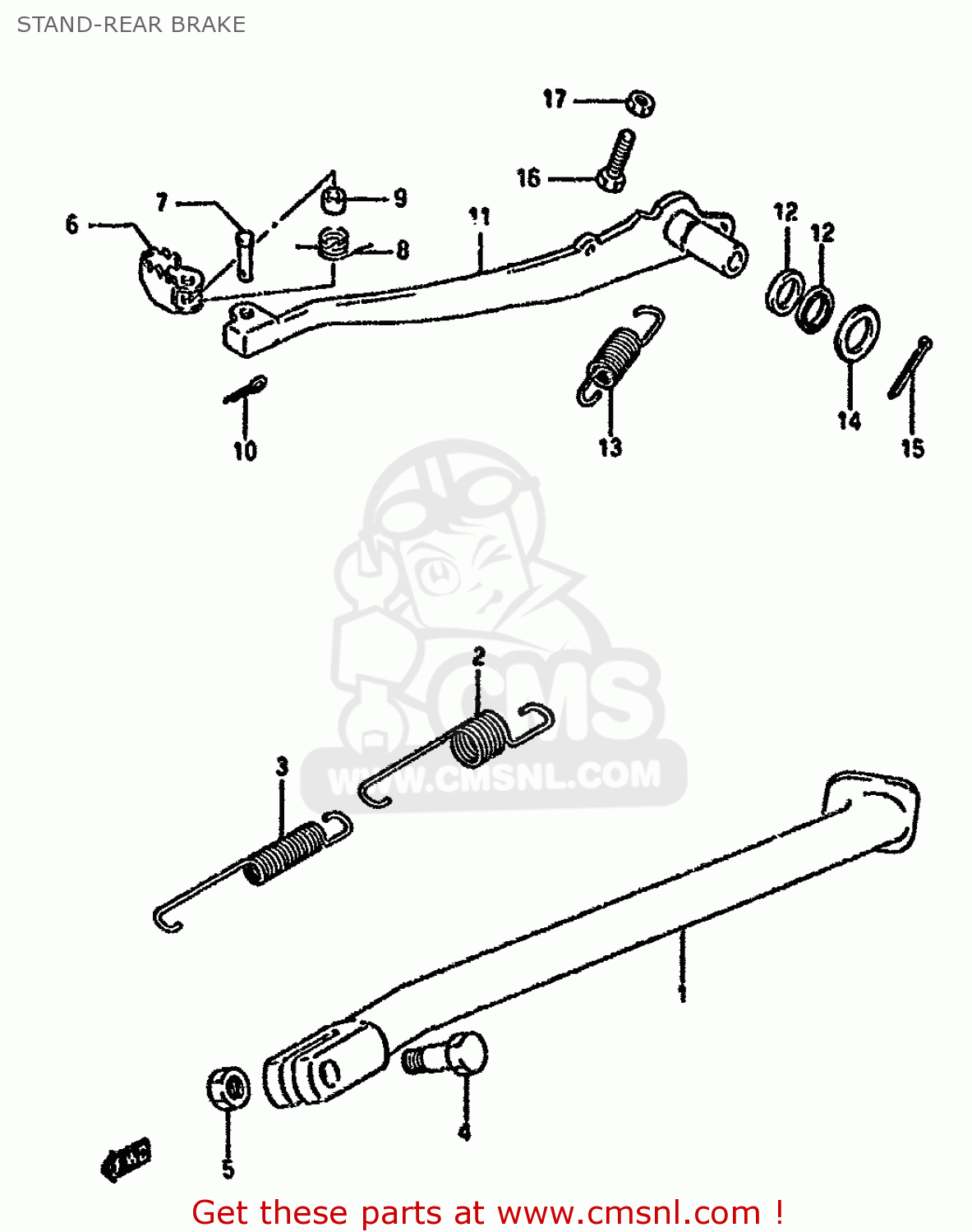

Stand-rear brake diagram DR350SH 1994 (R) AUSTRALIA (E22)
STAND-REAR BRAKE DR350SH 1994 (R) AUSTRALIA (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231014D110NF
ref: 1-1
MODEL L
STAND,SIDE
€ 209.00
1-2
4231014D120NF
ref: 1-2
MODEL M/N
STAND,SIDE
€ 209.00
1-3
4231014D11019
ref: 1-3
MODEL L
STAND,SIDE
€ 209.00
1-4
4231014D12019
ref: 1-4
MODEL M/N/P/R
STAND,PROP
€ 209.00
1-5
4231015D200NF
ref: 1-5
DR350SHN
STAND,PROP (BLUE)
€ 86.00
1-6
4231015D20019
ref: 1-6
DR350SHN/SHP/SHR
STAND,PROP(BLACK)
€ 86.00
2
0944319010
ref: 2
SPRING
€ 6.00
3
0944312036
ref: 3
SPRING
€ 7.50
4
0911110047
ref: 4
BOLT(10X30)
€ 4.50
5-1
0831022107
ref: 5-1
MODEL L/M/N/P
NUT
€ 2.50
5-2
0915610097
ref: 5-2
MODEL R
NUT
€ 0.00
6
4311014130
ref: 6
PEDAL,BRAKE
€ 6.00
7
0920006038
ref: 7
PIN
€ 2.00
8-1
0944411004
ref: 8-1
MODEL L/M/N/P
SPRING
€ 3.00
8-2
0944411005
ref: 8-2
MODEL R
SPRING
€ 3.00
9
0918006137
ref: 9
SPACER(9.2X9X6.5)
€ 2.50
10
0411120158
ref: 10
PIN
€ 1.50
11
4312015D00
ref: 11
ARM,BRAKE PEDAL
€ 54.00
12
0928415006
ref: 12
SEAL,OIL(15X21X3)
€ 3.50
13
0944314025
ref: 13
SPRING
€ 6.50
14
0916015002
ref: 14
WASHER(15.5X26X2.3)
€ 2.00
15
0411130308
ref: 15
COTTER PIN
€ 1.50
16
0910006009
ref: 16
BOLT(6X23)
€ 1.50
17-1
0831011067
ref: 17-1
MODEL L/M/N/P
NUT 6MM
€ 2.50
17-2
0831000063
ref: 17-2
MODEL R
NUT 6MM
€ 2.00
