SPEEDOMETER (DR350SHN/SHP/SHR)

DR350SH 1994 (R) AUSTRALIA (E22)

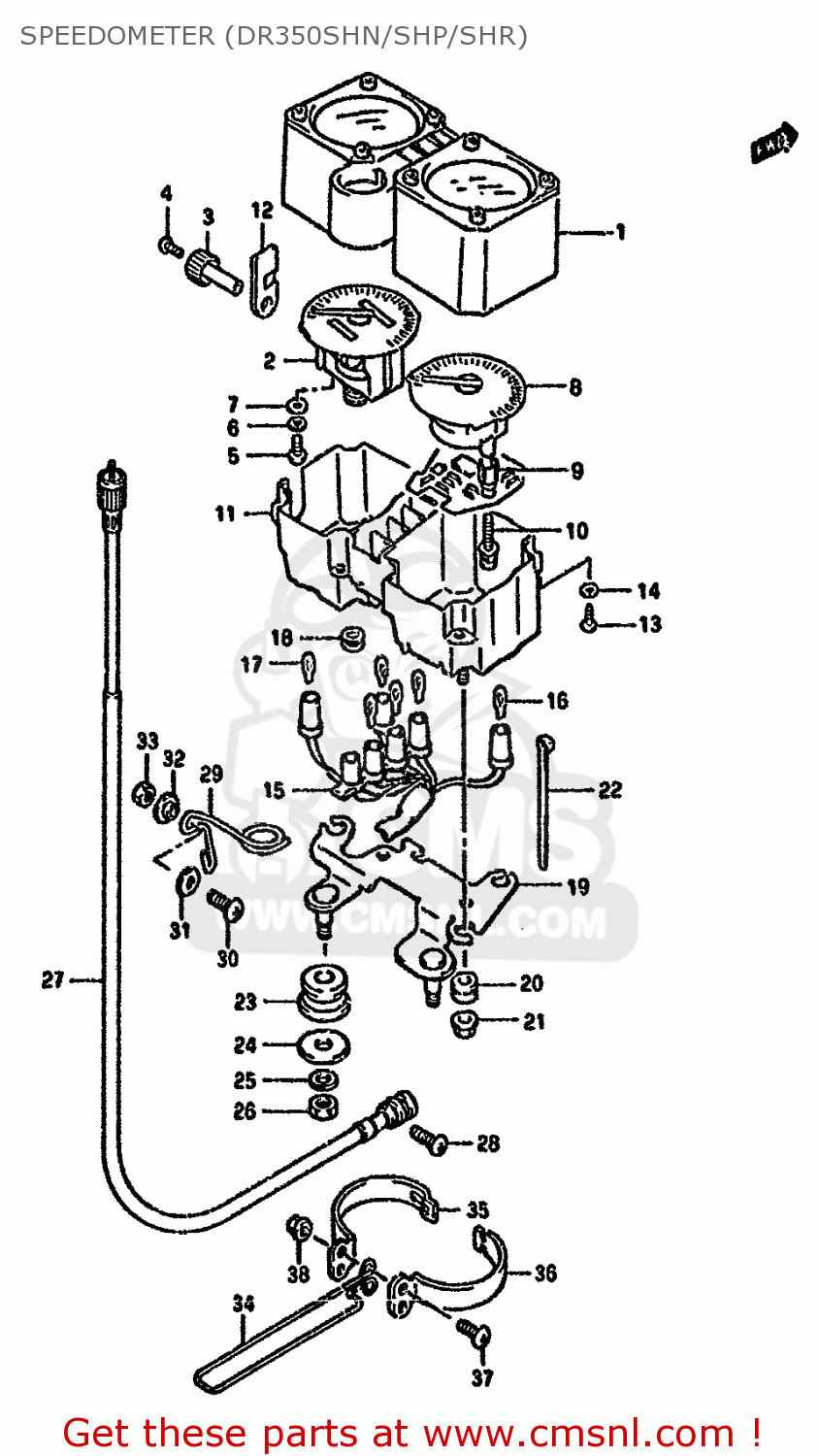

Speedometer (dr350shn/shp/shr) diagram DR350SH 1994 (R) AUSTRALIA (E22)

SPEEDOMETER (DR350SHN/SHP/SHR) DR350SH 1994 (R) AUSTRALIA (E22)
SPEEDOMETER (DR350SHN/SHP/SHR) DR350SH 1994 (R) AUSTRALIA (E22)
SPEEDOMETER (DR350SHN/SHP/SHR) DR350SH 1994 (R) AUSTRALIA (E22)
prices are in EUR
ref
part #
description
quantity
1
3415014C10
ref: 1
HOOD,METER
3415014C10
€ 99.50
2
3411014D10
ref: 2
SPEEDOMETER
€ 402.50
3
3412444B30
ref: 3
KNOB,TRIP
3412444B30
€ 7.00
4
3418412D00
ref: 4
SCREW,TRIP KNOB
3418412D00
€ 2.00
5-1
0211203106
ref: 5-1
MODEL N/P
SCREW
€ 1.50
5-2
0211203103
ref: 5-2
MODEL R
SCREW
0211203103
€ 1.50
6-1
0832121036
ref: 6-1
MODEL N/P
LOCK WASHER
0832121036
€ 1.50
6-2
0832121033
ref: 6-2
MODEL R
WASHER,LOCK
0832121033
€ 1.50
7
0832221036
ref: 7
WASHER 3.3X8X0
€ 1.50
8
3421014D00
ref: 8
TACHOMETER
3421014D00
€ 313.50
9
3418714A00
ref: 9
SPACER
€ 4.50
10
3428314A00
ref: 10
SCREW
3428314A00
€ 2.00
11
3411144B10
ref: 11
CASE,METER
3411144B10
€ 54.00
12
3419614A00
ref: 12
CUSHION,METER
3419614A00
€ 11.50
13-1
0311205129
ref: 13-1
MODEL N/P
SCREW
€ 1.50
13-2
0311205123
ref: 13-2
MODEL R
SCREW
0311205123
€ 1.50
14
0832121057
ref: 14
LOCK WASHER
0832121057
€ 2.00
15
3417014D00
ref: 15
SOCKET,METER
€ 78.00
16
0947112085
ref: 16
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
17
0947112100
ref: 17
BULB(12V1.7W,WB372,T7)
0947112100
€ 2.00
18
3419414A00
ref: 18
CAP
3419414A00
€ 8.00
19
3495014D00
ref: 19
BRACKET
3495014D00
€ 99.50
20
3499643410
ref: 20
CUSHION,METER
3499643410
€ 3.00
21
3418514A00
ref: 21
NUT
€ 5.50
22
3495416730
ref: 22
CLAMP
€ 2.50
23
3495631001
ref: 23
CUSHION,METER BRACKET
3495631001
€ 4.50
24
0916008057
ref: 24
WASHER (8.5X20X1.6)
0916008057
€ 2.00
25-1
0832121084
ref: 25-1
MODEL N/P
WASHER,LOCK,8.
0832121084
€ 2.50
25-2
0832101083
ref: 25-2
MODEL R
LOCK WASHER
0832101083
€ 2.50
26-1
0831012085
ref: 26-1
MODEL N/P
NUT ,8MM
0831012085
€ 1.50
26-2
0831000083
ref: 26-2
MODEL R
NUT
0831000083
€ 1.50
27-1
3491014D11
ref: 27-1
MODEL N
CABLE ASSEMBLY,SPEEDOMETER
€ 40.50
27-2
3491014D12
ref: 27-2
MODEL P/R
CABLE ASSEMBLY,SPEEDOMETER
€ 40.50
28-1
0211205164
ref: 28-1
MODEL N/P
SCREW
0211205164
€ 2.00
28-2
0211205163
ref: 28-2
MODEL R
SCREW
0211205163
€ 2.00
29-1
3493803D20
ref: 29-1
MODEL N
GUIDE, CABLE NO.2
€ 7.50
29-2
3493803D21
ref: 29-2
MODEL P/R
GUIDE, CABLE NO.2
€ 7.50
30-1
0214206164
ref: 30-1
MODEL N
SCREW
0214206164
€ 2.50
30-2
0214206167
ref: 30-2
MODEL P
SCREW
0214206167
€ 2.00
30-3
0214206163
ref: 30-3
MODEL R
SCREW
0214206163
€ 2.50
31
0916006057
ref: 31
WASHER
€ 2.00
32
0916906053
ref: 32
WASHER
0916906053
€ 2.00
33-1
0831012066
ref: 33-1
MODEL N/P
NUT
0831012066
€ 2.00
33-2
0831000063
ref: 33-2
MODEL R
NUT 6MM
0831000063
€ 2.00
34-1
3493808D00
ref: 34-1
MODEL N
GUIDE,CABLE
€ 0.00
34-2
3493808D01
ref: 34-2
MODEL P/R
GUIDE,SPEEDOMETER CABLE
€ 0.00
35
3492608D01
ref: 35
BRACKET,CABLE GUIDE
€ 0.00
36
3492708D00
ref: 36
BRACKET,CABLE GUIDE
€ 0.00
37-1
0214205164
ref: 37-1
MODEL N
SCREW
0214205164
€ 2.50
37-2
0214205167
ref: 37-2
MODEL P
SCREW
0214205167
€ 1.50
37-3
0214205163
ref: 37-3
MODEL R
SCREW
0214205163
€ 2.50
38-1
0831616055
ref: 38-1
MODEL N
NUT ,5MM
€ 2.00
38-2
0831616058
ref: 38-2
MODEL P
NUT
€ 2.50
38-3
0831610053
ref: 38-3
MODEL R
NUT
0831610053
€ 2.50
