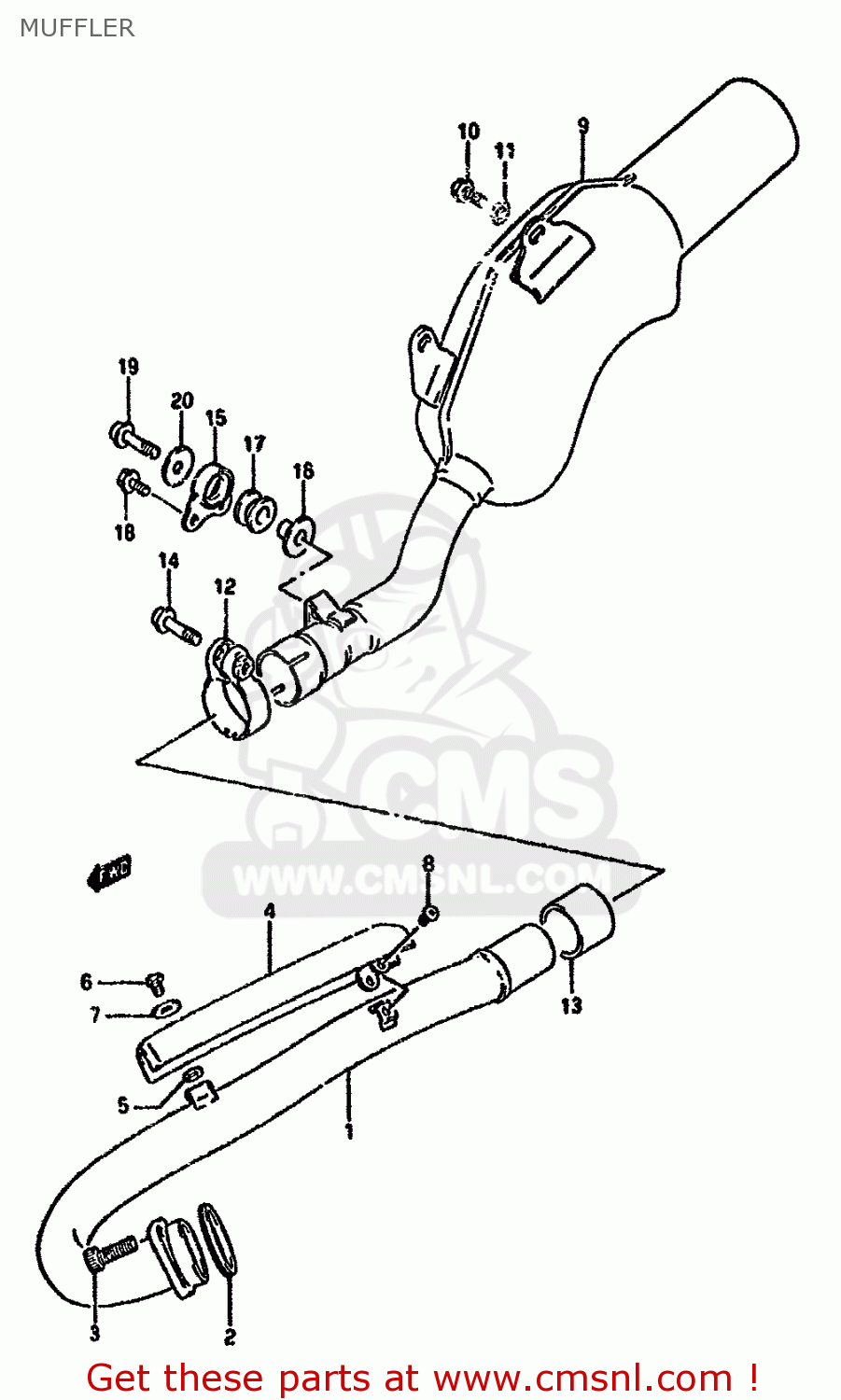

MUFFLER

ref

part #

description

quantity

1-1

1415014D11
ref: 1-1
MODEL L/M

PIPE,EXHAUST

€ 239.50

1-2

1415014D20
ref: 1-2
MODEL N/P/R

PIPE,EXHAUST

€ 239.50

2-1

1418114D00
ref: 2-1
MODEL L-14181-18C00

GASKET (NAS)

€ 6.50

2-2

1418118C00
ref: 2-2
MODEL M/N

GASKET,EXHAUST (NAS)

€ 6.50

2-3

1418140C00
ref: 2-3
MODEL P/R

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3-1

0711008255
ref: 3-1
MODEL L/M/N/P

BOLT

€ 3.50

3-2

0713008257
ref: 3-2
MODEL R

BOLT

€ 3.50

4

1418014D10
ref: 4

COVER,EXHAUST PIPE

€ 57.00

5

0916806120
ref: 5

GASKET(5.8X13X1.4) (NAS)

€ 2.00

6

0913906076
ref: 6

SCREW(6X10)

€ 2.50

7

0916006056
ref: 7

WASHER(6.5X18X1)

€ 2.00

8-1

0214205084
ref: 8-1
MODEL L/M/N/P

SCREW

€ 2.00

8-2

0214205083
ref: 8-2
MODEL R

SCREW

€ 2.00

9-1

1431014D62
ref: 9-1
MODEL L/M/N/P

MUFFLER ASSY

€ 558.50

9-2

1431014D65
ref: 9-2
MODEL R

BODY,MUFFLER

€ 558.50

10-1

0910608107
ref: 10-1
MODEL L/M

BOLT(8X20)

€ 2.00

10-2

0910308286
ref: 10-2
MODEL N/P/R

BOLT(8X20)

€ 3.50

11

0916008053
ref: 11

WASHER (8.5X19X2.3)

€ 2.00

12

1446907A11
ref: 12
FOR 14310-14D20

CLAMP,PREMUFFLER CONNECTOR,L

€ 17.50

13

1477114D00
ref: 13

CONNECTOR,MUFFLER JOINT

€ 19.50

14-1

0712008355
ref: 14-1
MODEL L/M

BOLT

€ 4.00

14-2

0151708355
ref: 14-2
MODEL N/P

BOLT

€ 3.50

14-3

0155008353
ref: 14-3
MODEL R

BOLT

€ 3.50

15-1

1477014D00
ref: 15-1
MODEL L/M/N/P

DAMPER,MUFFLER SUPPORT

€ 15.00

15-2

1477014D01
ref: 15-2
MODEL R

DAMPER,MUFFLER SUPPORT JOINT

€ 15.00

16

0918008151
ref: 16

SPACER(8.6X12X17.5)

€ 6.00

17

0932012043
ref: 17

CUSHION

€ 8.00

18

0910306149
ref: 18

BOLT

€ 2.50

19-1

0910608109
ref: 19-1
MODEL L/M

BOLT 8X35

€ 3.50

19-2

0910308287
ref: 19-2
MODEL N/P/R

BOLT(8X35)

€ 2.00

20

0916008057
ref: 20

WASHER (8.5X20X1.6)

€ 2.00
