CYLINDER
DR350SH 1994 (R) AUSTRALIA (E22)

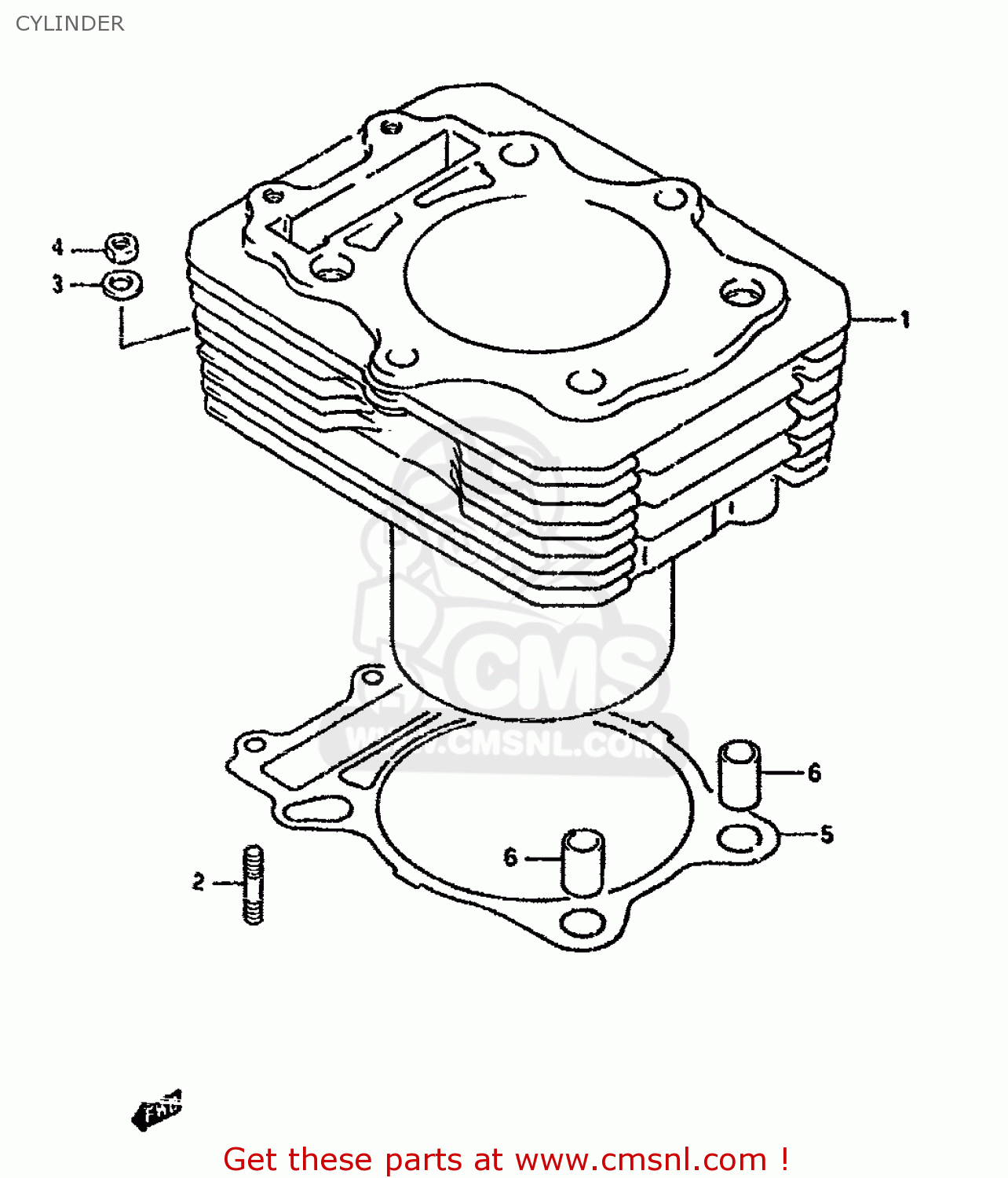

Cylinder diagram DR350SH 1994 (R) AUSTRALIA (E22)
CYLINDER DR350SH 1994 (R) AUSTRALIA (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121014D010F0
ref: 1-1
MODEL L-11210-14D00-
CYLINDER
€ 554.50
1-2
1121014D110F0
ref: 1-2
MODEL M/N/P
CYLINDER
€ 554.50
1-3
1121047D000F0
ref: 1-3
MODEL R
CYLINDER
€ 554.50
2
0142106208
ref: 2
STUD 6X20
€ 2.50
3-1
0832211068
ref: 3-1
MODEL L/M/N/P
WASHER 6MM
€ 2.00
3-2
0832201063
ref: 3-2
MODEL R
WASHER
€ 2.00
4-1
0914006022
ref: 4-1
MODEL L/M/N/P
NUT
€ 3.00
4-2
0914006502
ref: 4-2
MODEL R
NUT
€ 3.00
5
1124114D01
ref: 5
GASKET,CYLINDER (NAS)
€ 12.00
6
0920613001
ref: 6
PIN
€ 2.50
