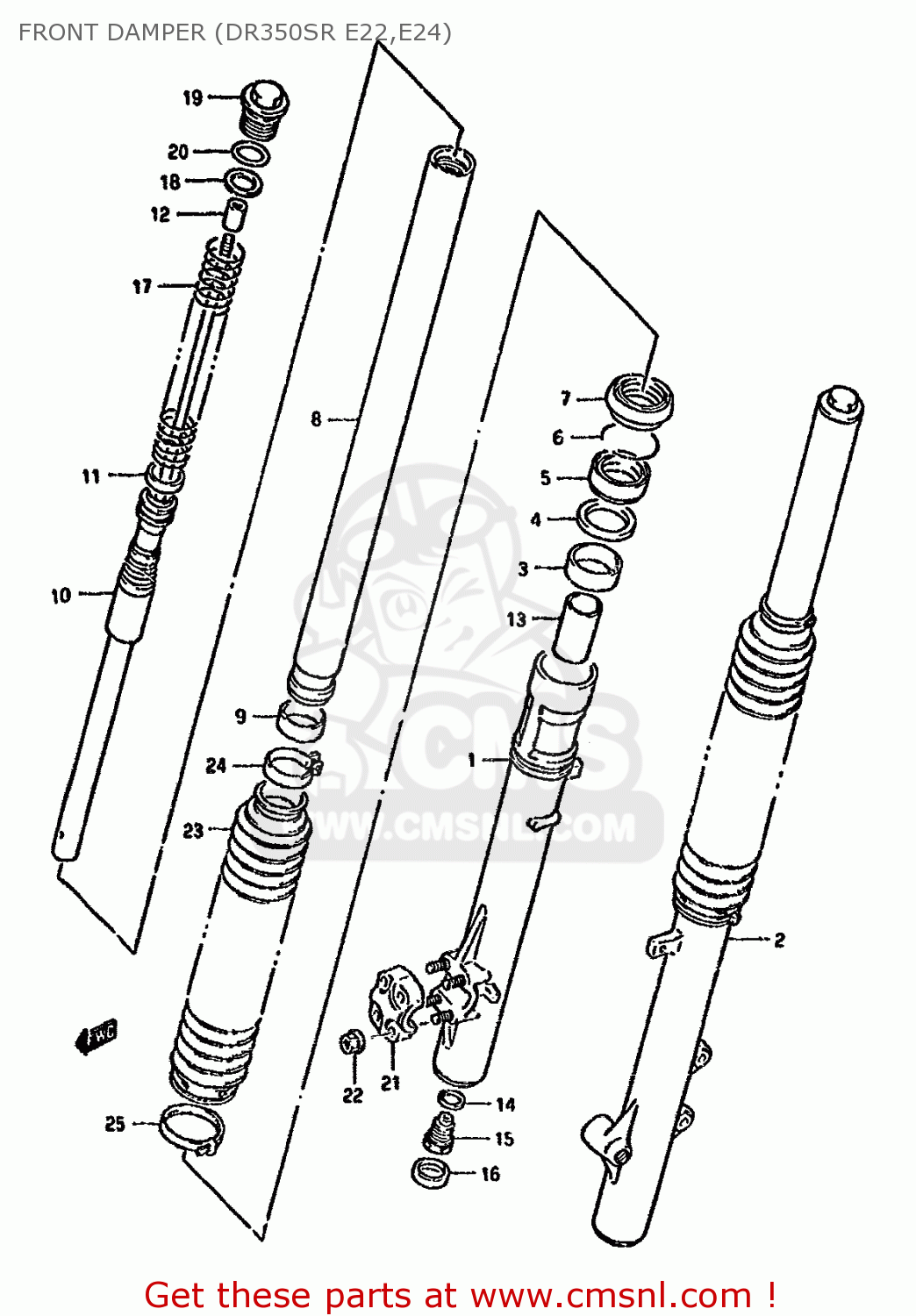

FRONT DAMPER (DR350SR E22,E24)

ref

part #

description

quantity

0

5110314E30
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 0.00

0

5110414E30
ref: 0

DAMPER ASSEMBLY,LEFT

€ 349.50

1

5113014E30
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114114E30
ref: 2

TUBE,OUTER,L

€ 0.00

3

5115207D00
ref: 3

BUSH,GUIDE

€ 24.50

4

5116817C00
ref: 4

SPACER,SEAL

€ 5.00

5

5115314D00
ref: 5

SEAL,OIL

€ 20.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5117314D00
ref: 7

DUST SEAL

€ 19.50

8

5111014E30
ref: 8

TUBE,INNER

€ 284.50

9

5112114D00
ref: 9

BUSH,SLIDE

€ 16.50

10

5119014E30
ref: 10

CYLINDER

€ 49.50

11

5119714E30
ref: 11

BUSH,SLIDE

€ 8.50

12

5112914E30
ref: 12

NUT,ROD

€ 0.00

13

5119514E30
ref: 13

PIECE,OIL LOCK

€ 0.00

14

5114808D00
ref: 14

GASKET (NAS)

€ 5.50

15

5117008D00
ref: 15

CTR BOLT

€ 82.50

16

5118908D00
ref: 16

CAP

€ 7.50

17

5117114E30
ref: 17

SPRING,MAIN

€ 0.00

18

5118617C00
ref: 18

SEAT,SPRING LWR

€ 4.50

19

5135114E30
ref: 19

BOLT,FORK

€ 47.50

20

5111717C00
ref: 20

O RING

€ 3.50

21

5113214D00
ref: 21

HOLDER,AXLE

€ 30.50

22

5116814D00
ref: 22

NUT,HOLDER

€ 3.50

23-1

5157114D00163
ref: 23-1
FOR C3P

BOOT

€ 62.50

23-2

5157114D0038K
ref: 23-2
FOR C3K

BOOT

€ 47.00

24

5157514D00
ref: 24

BAND,BOOT UPR

€ 8.50

25

5157614D00
ref: 25

BAND,BOOT LWR

€ 10.00

24

5113808D00
ref: 24

BOLT,CTR

€ 5.00

25

5118015D50
ref: 25

JACK ASSY

€ 623.00

26

5118715D50
ref: 26

O RING,JACK

€ 4.00

27

5121008D00
ref: 27

GUIDE,FR FORK PROTECTOR

€ 27.00

28

0910305012
ref: 28

BOLT(5X27)

€ 2.00

25

5116814D00
ref: 25

NUT,HOLDER

€ 3.50

26-1

5157114D00163
ref: 26-1

BOOT

€ 62.50

26-2

5157114D0038K
ref: 26-2

BOOT

€ 47.00

27

5157514D00
ref: 27

BAND,BOOT UPR

€ 8.50

28

5157614D00
ref: 28

BAND,BOOT LWR

€ 10.00

all assemblies
