FRAME (MODEL R)
DR350SH 1994 (R) AUSTRALIA (E22)

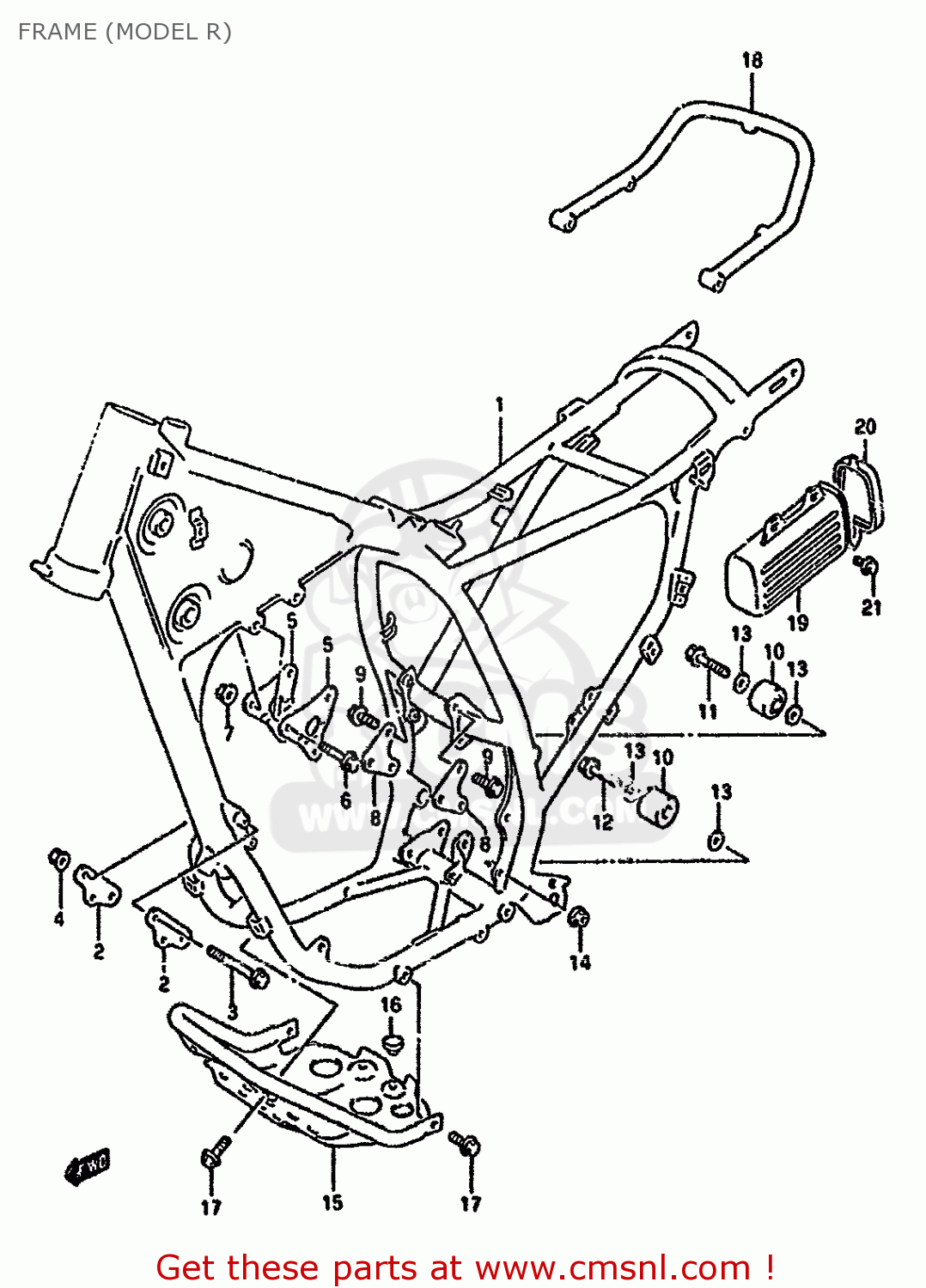

Frame (model r) diagram DR350SH 1994 (R) AUSTRALIA (E22)
FRAME (MODEL R) DR350SH 1994 (R) AUSTRALIA (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
41100140720NF
ref: 1-1
FOR C3K
FRAME (BLUE)
€ 0.00
1-2
4110014D7224K
ref: 1-2
FOR C3P
FRAME (CHARCOAL)
€ 2,246.00
1-3
4110014D930NF
ref: 1-3
E18,E39 FOR C3K
FRAME (BLUE)
€ 1,972.50
1-4
4110014D9324K
ref: 1-4
E18,E39 FOR C3P
FRAME (CHARCOAL)
€ 0.00
1-5
4110014D530NF
ref: 1-5
E24 FOR C3K
FRAME (BLUE)
€ 0.00
1-6
4110014D5324K
ref: 1-6
E24 FOR C3P
FRAME (CHARCOAL)
€ 0.00
2
4191114D01
ref: 2
PLATE,ENGINE MOUNT FR
€ 21.00
3
0910308294
ref: 3
BOLT(8X85)
€ 4.50
4
0915908034
ref: 4
NUT
€ 2.00
5
4199114D01
ref: 5
PLATE,ENGINE MOUNT UPR
€ 30.50
6
0910308293
ref: 6
BOLT(8X70)
€ 4.50
7
0915908034
ref: 7
NUT
€ 2.00
8
4197114D01
ref: 8
PLATE,ENGINE MOUNTING,REAR
€ 21.00
9
0910308283
ref: 9
BOLT(8X16)
€ 2.50
10
4391027C11
ref: 10
ROLLER,CHAIN
€ 36.50
11
0910308178
ref: 11
BOLT(8X38)
€ 5.00
12
0910308068
ref: 12
BOLT 8X45
€ 4.50
13
0821108121
ref: 13
WASHER
€ 2.00
14
0831320083
ref: 14
NUT
€ 2.50
15
4251014D1013L
ref: 15
PROTECTOR,ENGINE(SILVER)
€ 269.50
16
0932110026
ref: 16
CUSHION
€ 9.00
17
0155008123
ref: 17
BOLT
€ 3.50
18-1
4398014D121TS
ref: 18-1
GRIP,REAR (WHITE)
€ 208.50
18-2
4398014D421TS
ref: 18-2
E24
GRIP,REAR (WHITE)
€ 0.00
19
4743114D00
ref: 19
HOLDER,TOOL
€ 25.50
20
4743214D00
ref: 20
CAP,TOOL HOLDER
€ 8.50
21
0911606144
ref: 21
BOLT 6X16
€ 2.50
6
0910308293
ref: 6
BOLT(8X70)
€ 4.50
7
0915908034
ref: 7
NUT
€ 2.00
8
4197114D01
ref: 8
PLATE,ENGINE MOUNTING,REAR
€ 21.00
9
0910308283
ref: 9
BOLT(8X16)
€ 2.50
10-1
4391027C10
ref: 10-1
MODEL L/M
ROLLER,CHAIN
€ 36.50
10-2
4391027C11
ref: 10-2
MODEL N/P
ROLLER,CHAIN
€ 36.50
11
0910308178
ref: 11
BOLT(8X38)
€ 5.00
12
0910308068
ref: 12
BOLT 8X45
€ 4.50
13-1
0916008074
ref: 13-1
MODEL L/M
WASHER(8.5X13X1.6)
€ 2.50
13-2
0821108121
ref: 13-2
MODEL N/P
WASHER
€ 2.00
14
0831321087
ref: 14
NUT 8MM
€ 2.50
15-1
4251014D1013L
ref: 15-1
PROTECTOR,ENGINE(SILVER)
€ 269.50
15-2
4251014D2013L
ref: 15-2
MODEL N/P E18
PROTECTOR,ENGINE (SILVER)
€ 281.00
16
0932110026
ref: 16
CUSHION
€ 9.00
17
0151708128
ref: 17
BOLT 8X12
€ 3.50
18-1
4398014D120NF
ref: 18-1
GRIP,REAR (BLUE)
€ 263.00
18-2
4398014D121AZ
ref: 18-2
MODEL M/N,DR350SHP E
GRIP,REAR (YELLOW)
€ 208.50
18-3
4398014D121TS
ref: 18-3
MODEL P
GRIP,REAR (WHITE)
€ 208.50
18-4
4398014D420NF
ref: 18-4
E15,E24
GRIP,REAR (BLUE)
€ 263.00
18-5
4398014D421AZ
ref: 18-5
MODEL M/N E15,E24
GRIP,REAR (YELLOW)
€ 208.50
18-6
4398014D421TS
ref: 18-6
MODEL P E24
GRIP,REAR (WHITE)
€ 0.00
19
4743114D00
ref: 19
HOLDER,TOOL
€ 25.50
20
4743214D00
ref: 20
CAP,TOOL HOLDER
€ 8.50
21
0911606085
ref: 21
BOLT M6X16
€ 2.50
