RIGHT HANDLE SWITCH (SEE NOTE)

DR350SH 1994 (R) AUSTRALIA (E22)

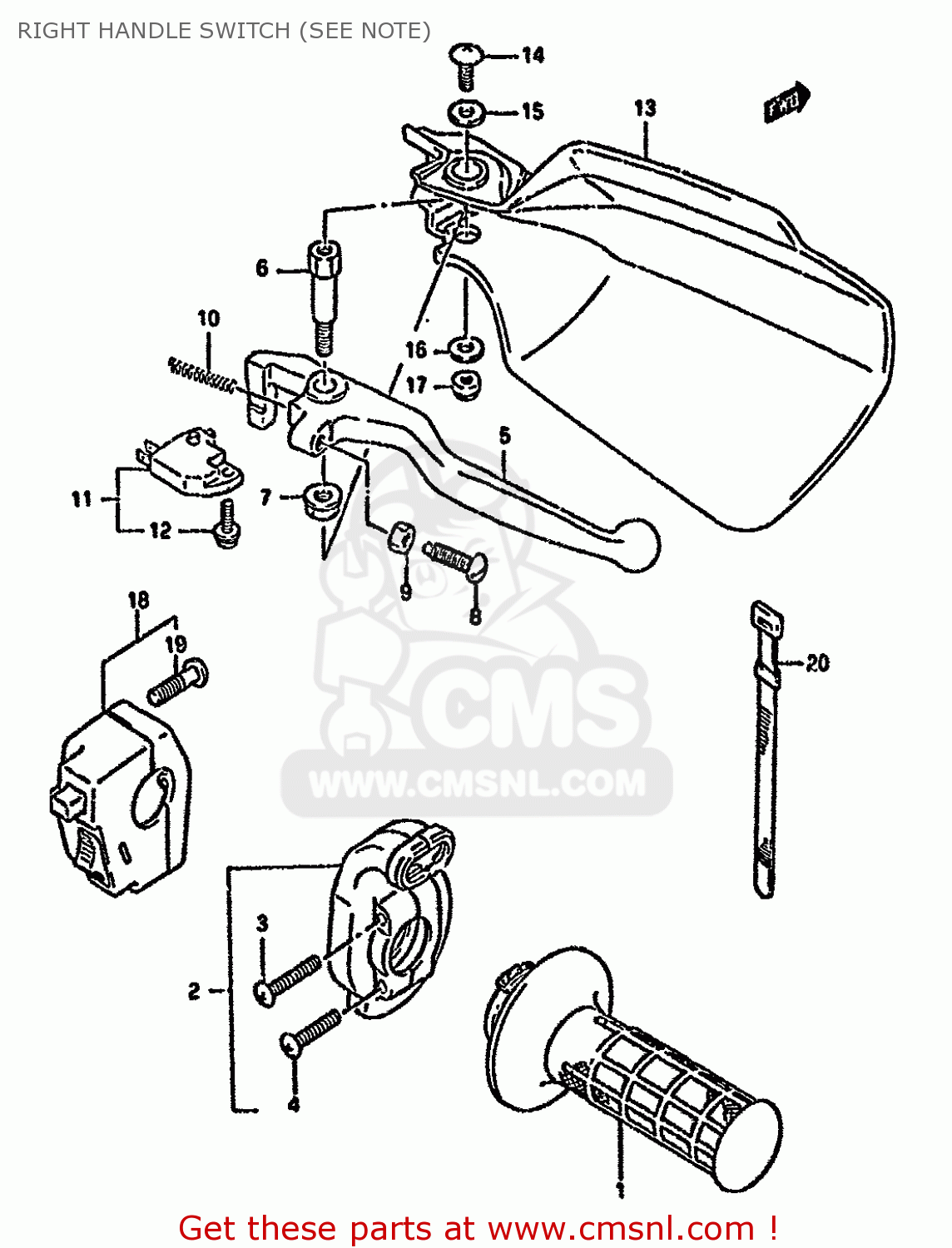

Right handle switch (see note) diagram DR350SH 1994 (R) AUSTRALIA (E22)

RIGHT HANDLE SWITCH (SEE NOTE) DR350SH 1994 (R) AUSTRALIA (E22)
RIGHT HANDLE SWITCH (SEE NOTE) DR350SH 1994 (R) AUSTRALIA (E22)
RIGHT HANDLE SWITCH (SEE NOTE) DR350SH 1994 (R) AUSTRALIA (E22)
prices are in EUR
ref
part #
description
quantity
1
5711014D11
ref: 1
GRIP,THROTTLE
5711014D11
€ 25.50
2
5710014D00
ref: 2
CASE ASSY,THROTTLE
5710014D00
€ 24.00
3
0912505066
ref: 3
SCREW(5X25)
0912505066
€ 2.00
4
0211205205
ref: 4
SCREW 5X20
0211205205
€ 2.50
5
5742103D00
ref: 5
LEVER,BRAKE
5742103D00
€ 14.50
6
5743105D00
ref: 6
BOLT,BRAKE LEVER PIVOT
5743105D00
€ 9.00
7
0831921068
ref: 7
NUT 6MM
0831921068
€ 2.00
8
5743114511
ref: 8
BOLT,ADJUST
5743114511
€ 3.50
9
0831012055
ref: 9
NUT ,5MM
0831012055
€ 2.50
10
5731814502
ref: 10
SPRING,RETURN
5731814502
€ 3.00
11
5746017C00
ref: 11
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
12
5746517C00
ref: 12
SCREW
5746517C00
€ 1.50
13-1
5734105D000NF
ref: 13-1
FOR 28X,C3K
COVER,KNUCKLE,R
5734105D000NF
€ 28.00
13-2
5734105D0025Y
ref: 13-2
FOR 30H,C3P
COVER,KNUCKLE,R
5734105D0025Y
€ 24.50
14-1
0912505042
ref: 14-1
MODEL L/M/N/P
SCREW(5X10)
0912505042
€ 2.50
14-2
0214205107
ref: 14-2
DR350SR
SCREW
0214205107
€ 2.50
14-3
0912505042
ref: 14-3
DR350SHR
SCREW(5X10)
0912505042
€ 2.50
15-1
0916005017
ref: 15-1
DR350SN/SP/SR
WASHER (5.5X16X1.2)
0916005017
€ 2.50
15-2
0916005024
ref: 15-2
DR350SHN/SHP/SHR
WASHER(5.5X16X1.5)
0916005024
€ 1.50
16
0916006042
ref: 16
WASHER (6.5X17X1.6)
0916006042
€ 2.00
17
0831921068
ref: 17
NUT 6MM
0831921068
€ 2.00
18-1
3720003D11
ref: 18-1
-37200-14A01
SWITCH ASSY, HANDLE, RH
€ 101.50
18-2
3720014A01
ref: 18-2
SWITCH ASSY,HANDLE,R
3720014A01
€ 101.50
19
0912505066
ref: 19
SCREW(5X25)
0912505066
€ 2.00
20
0940712402
ref: 20
CLAMP(L:120)
0940712402
€ 3.00
