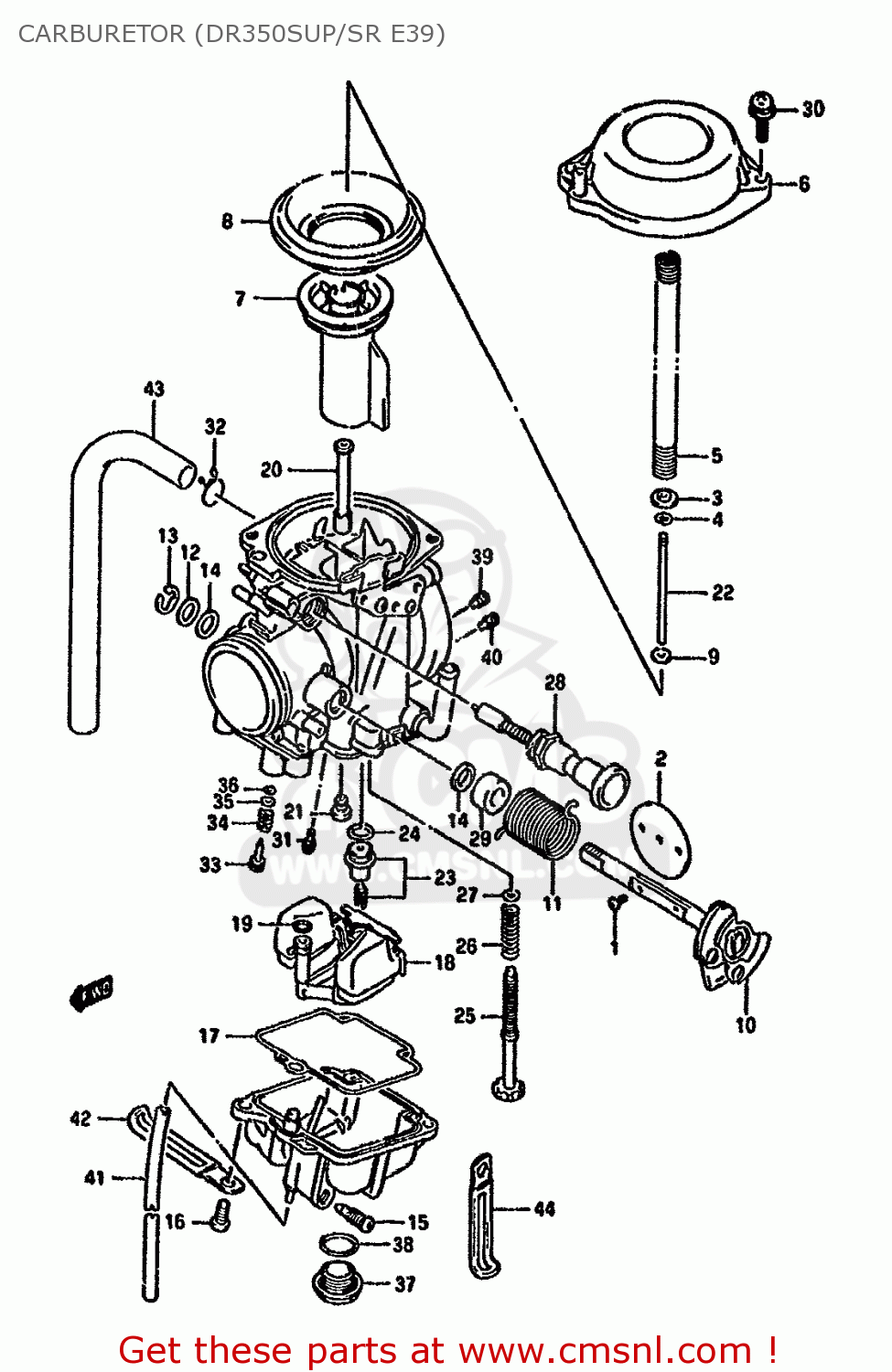

CARBURETOR (DR350SUP/SR E39)

ref

part #

description

quantity

0

1320014EG0
ref: 0

CARBURETOR ASSY

€ 0.00

1

1360442A00
ref: 1

SCREW

€ 3.50

2

1355145B00
ref: 2

VALVE,THROTTLE (115)

€ 21.00

3

1338242A00
ref: 3

RING

€ 3.50

4

1339401D00
ref: 4

E RING

€ 4.50

5

1341744B00
ref: 5

SPRING

€ 6.00

6

1350245B00
ref: 6

COVER,DIAPHRAGM

€ 36.00

7

1355144B10
ref: 7

VALVE PISTON

€ 74.50

8

1350744B00
ref: 8

DIAPHRAGM

€ 29.00

9

1338744480
ref: 9

RING

€ 7.50

10

1355014E00
ref: 10

SHAFT ASSEMBLY

€ 33.50

11

1326831D00
ref: 11

SPRING

€ 9.50

12

1355747070
ref: 12

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

13

1361744080
ref: 13

E RING

€ 3.50

14

1355644B00
ref: 14

SEAL

€ 3.50

15

1324713A00
ref: 15

SCREW,DRAIN

€ 5.50

16

1360205128
ref: 16

SCREW

€ 2.50

17

1325844B00
ref: 17

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

18

1324017E10
ref: 18

FLOAT ASSY

€ 40.00

19

1327847090
ref: 19

O RING

€ 2.00

20

0949400691
ref: 20

JET,NEEDLE (O-6)

€ 40.50

21

0949126011
ref: 21

JET,MAIN(130)

€ 11.50

22

1338314D10
ref: 22

NEEDLE,JET

€ 13.50

23

1337044B00
ref: 23

VALVE ASSEMBLY,NEEDLE

€ 46.50

24

1337444080
ref: 24

O-RING,NEEDLE VALVE

€ 6.00

25

1326714D10
ref: 25

SCREW,ADJUSTER

€ 22.50

26

1327133C00
ref: 26

SPRING

€ 4.50

27

1342738300
ref: 27

WASHER

€ 1.50

28

1341114E00
ref: 28

PLUNGER ASSEMBLY

€ 51.00

29

1357428A00
ref: 29

RING

€ 4.50

30

1360234390
ref: 30

SCREW

€ 2.50

31

0949235010
ref: 31

JET,PILOT(37.5)

€ 10.50

32

1367148B10
ref: 32

CLIP

€ 1.50

33

1327947070
ref: 33

SCREW,PILOT

€ 11.50

34

1326847070
ref: 34

SPRING

€ 5.00

35

1329129900
ref: 35

WASHER

€ 2.00

36

1329529900
ref: 36

O RING,PILOT AIR SCREW

€ 4.00

37

1324732210
ref: 37

SCREW,GUIDE

€ 13.00

38

1324941310
ref: 38

O RING,DRAIN PLUG

€ 5.00

39

0949324007
ref: 39

JET,AIR(1.2)

€ 13.50

40

0949360004
ref: 40

JET,AIR(0.6)

€ 11.00

41

1368336A00
ref: 41
L:300-150

HOSE

€ 8.00

42

1367105A20
ref: 42

CLIP

€ 3.00

43

1368343410
ref: 43
L:300-200

HOSE

€ 17.50

44

0940406402
ref: 44

CLAMP

€ 2.50

24

1337444080
ref: 24

O-RING,NEEDLE VALVE

€ 6.00

25

1326714D10
ref: 25

SCREW,ADJUSTER

€ 22.50

26

1337514D10
ref: 26

SPRING

€ 6.50

27

1342738300
ref: 27

WASHER

€ 1.50

28

1341114E00
ref: 28

PLUNGER ASSEMBLY

€ 51.00

29

1357428A00
ref: 29

RING

€ 4.50

30

0211275163
ref: 30

SCREW

€ 2.50

31-1

0949242010
ref: 31-1

JET,PILOT(42.5)

€ 8.50

31-2

0949235010
ref: 31-2
MODEL N/P/R:E18,E39

JET,PILOT(37.5)

€ 10.50

31-3

0949240014
ref: 31-3
MODEL N:E15,E22

JET(40)

€ 8.50

32-1

1367148B10
ref: 32-1
MODEL N/P

CLIP

€ 1.50

32-2

0940110410
ref: 32-2
MODEL R

CLIP

€ 1.50

33-1

1327947070
ref: 33-1
EXCEPT E18

SCREW,PILOT

€ 11.50

33-2

1327947070
ref: 33-2
E15,E22

SCREW,PILOT

€ 11.50

34

1326847070
ref: 34
EXCEPT E18

SPRING

€ 5.00

35

1329129900
ref: 35
EXCEPT E18

WASHER

€ 2.00

36

1329529900
ref: 36
EXCEPT E18

O RING,PILOT AIR SCREW

€ 4.00

37

1324732210
ref: 37

SCREW,GUIDE

€ 13.00

38

1324941310
ref: 38

O RING,DRAIN PLUG

€ 5.00

39-1

0949326004
ref: 39-1

JET,AIR(1.3)

€ 14.50

39-2

0949325003
ref: 39-2
MODEL N:E18

JET,AIR(1.25)

€ 11.00

39-3

0949326004
ref: 39-3
MODEL P:E18

JET,AIR(1.3)

€ 14.50

39-4

0949324007
ref: 39-4
MODEL P/R:E22

JET,AIR(1.2)

€ 13.50

39-5

0949327002
ref: 39-5
E39

JET,AIR(1.35)

€ 15.50

40

0949360004
ref: 40

JET,AIR(0.6)

€ 11.00

41-1

1368336A00
ref: 41-1
L:300-150

HOSE

€ 8.00

41-2

0935230503300
ref: 41-2
L:300-150

HOSE

€ 8.00

42

1367105A20
ref: 42

CLIP

€ 3.00

43-1

1368343410
ref: 43-1
L:300-200

HOSE

€ 17.50

43-2

0935270113600
ref: 43-2
L:300-150

HOSE(7X11X600)

€ 17.50

44-1

1368732C00
ref: 44-1

HOSE

€ 13.00

44-2

0935250823300
ref: 44-2
L:300-200

HOSE

€ 13.00

45

0940406402
ref: 45

CLAMP

€ 2.50

all assemblies
