FRONT CALIPER
DR350SU 1993 (P) AUSTRIA ( E39)

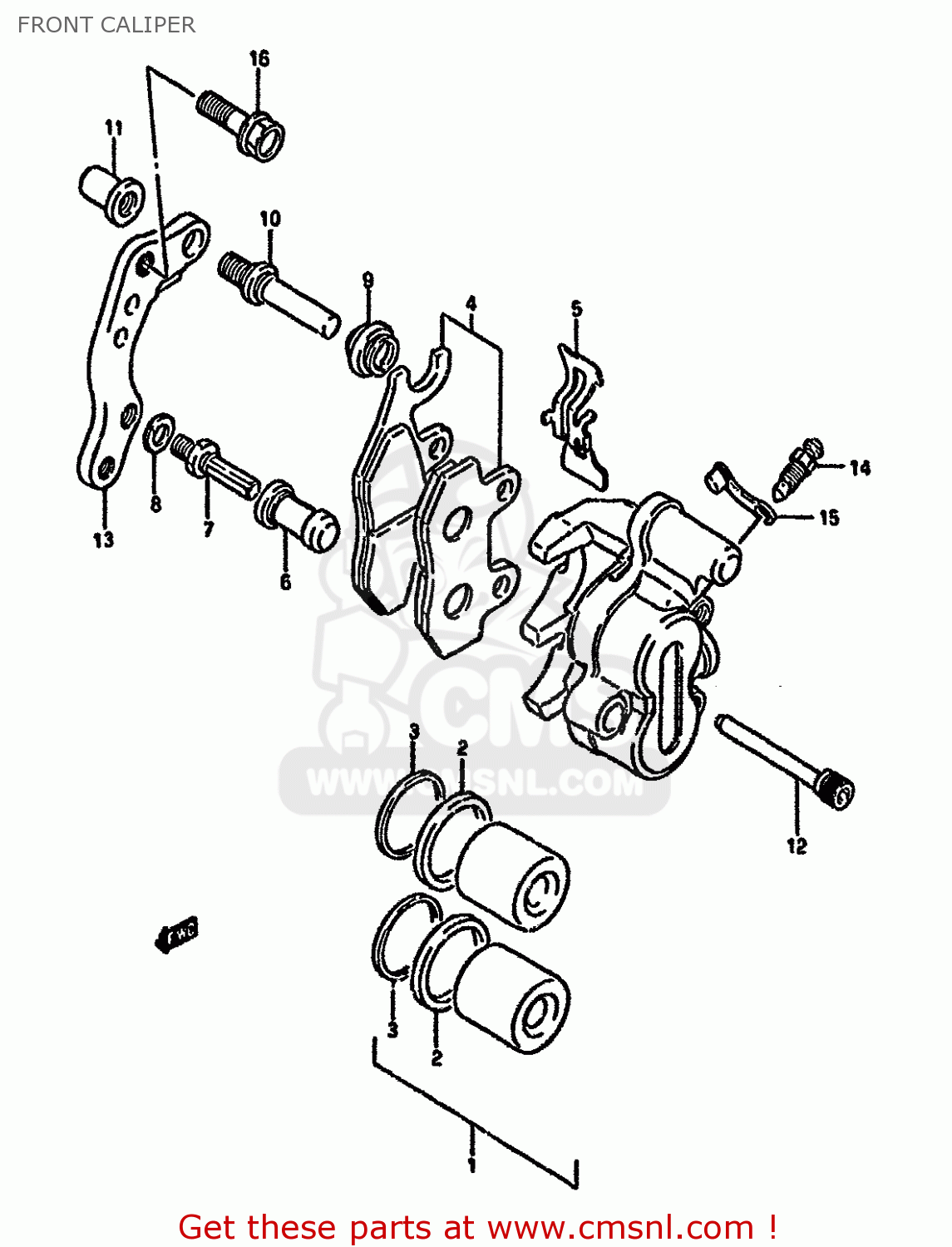

Front caliper diagram DR350SU 1993 (P) AUSTRIA ( E39)
FRONT CALIPER DR350SU 1993 (P) AUSTRIA ( E39)
×
prices are in EUR
ref
part #
description
quantity
0
5930008D00
ref: 0
CALIPER ASSEMBLY,FRONT,LEFT
€ 39.50
1
5930026840
ref: 1
PISTON SET
€ 66.50
2
5910700B20
ref: 2
SEAL,PISTON
€ 13.00
3
5910800B20
ref: 3
SEAL,DUST
€ 10.50
4
5930008810
ref: 4
PAD SET (NAS)
€ 47.00
5
5931500B20
ref: 5
SPRING
€ 8.00
6
5938613A00
ref: 6
BOOT
€ 6.50
7
5938213A00
ref: 7
BOLT,PIN
€ 6.50
8
5931413A00
ref: 8
WASHER,WAVE
€ 2.00
9
5930314500
ref: 9
BOOT
€ 5.50
10
5938700B20
ref: 10
PIN,SLIDE
€ 12.50
11
5938800B20
ref: 11
NUT
€ 10.00
12
5934500B20
ref: 12
PIN,HOLDER
€ 9.50
13
5935100B20
ref: 13
BRACKET
€ 60.50
14
5912101A00
ref: 14
BLEEDER
€ 8.50
15
5912201A00
ref: 15
CAP,BLEEDER
€ 4.50
16-1
0910308226
ref: 16-1
DR350SL/SM/SN/SP/SR
BOLT(8X24)
€ 2.00
16-2
0910308263
ref: 16-2
DR350SHN/SHP/SHR
BOLT(8X29)
€ 3.00
