SEAT (MODEL R)
DR350SU 1993 (P) AUSTRIA ( E39)

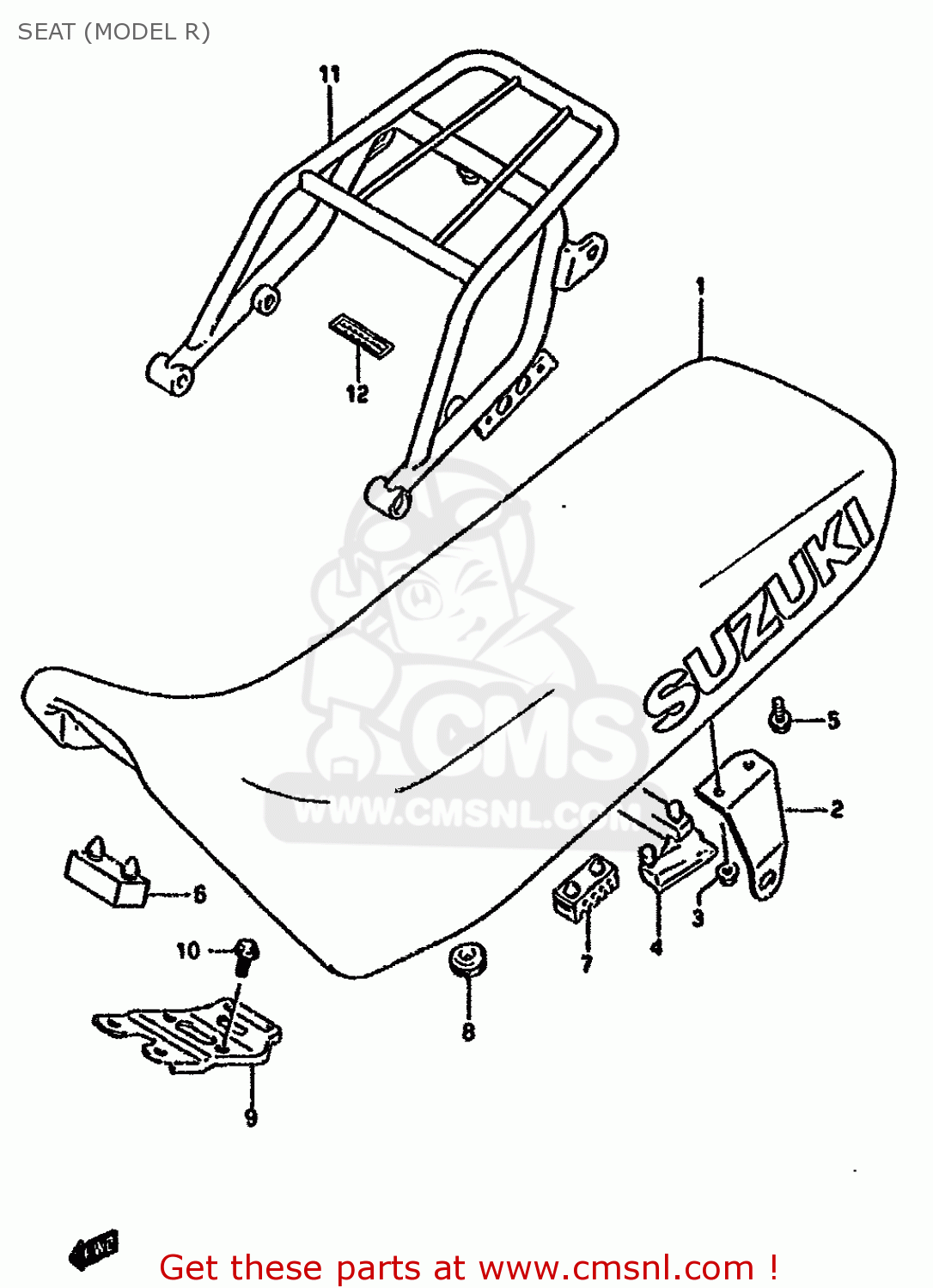

Seat (model r) diagram DR350SU 1993 (P) AUSTRIA ( E39)
SEAT (MODEL R) DR350SU 1993 (P) AUSTRIA ( E39)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510015D00G56
ref: 1-1
FOR C3P
SEAT SET
€ 279.50
1-2
4510015D0090D
ref: 1-2
FOR C3K
SEAT ASSY
€ 0.00
1-3
4510015D10G56
ref: 1-3
E4,E18,E21,E24,E34,E
SEAT SET
€ 279.50
1-4
4510015D1090D
ref: 1-4
E4,E18,E21,E24,E34,E
SEAT ASSY
€ 0.00
2-1
4511614D00
ref: 2-1
BRACKET,SEAT,R
€ 8.00
2-2
4511714D00
ref: 2-2
BRACKET,SEAT,L
€ 8.00
3
0831610063
ref: 3
NUT
€ 2.50
4
4525514D00
ref: 4
CUSHION
€ 30.00
5
0155006103
ref: 5
BOLT
€ 2.50
6
0932108006
ref: 6
CUSHION
€ 3.00
7
4514931300
ref: 7
CUSHION,SEAT(40X20X15)
€ 2.00
8
0932008013
ref: 8
CUSHION
€ 4.00
9-1
4512015D01
ref: 9-1
PLATE,SEAT FR HOOK
€ 16.50
9-2
4512014D00
ref: 9-2
E24
PLATE,SEAT FR HOOK
€ 12.00
10
0155008123
ref: 10
BOLT
€ 3.50
11
46310150131TS
ref: 11
OPT
CARRIER,SPORT (WHITE)
€ 0.00
12
6839114D00
ref: 12
OPT
LABEL,WARNING
€ 0.00
9-2
4512015D01
ref: 9-2
MODEL N/P
PLATE,SEAT FR HOOK
€ 16.50
9-3
4512014D00
ref: 9-3
E24
PLATE,SEAT FR HOOK
€ 12.00
10
0151708126
ref: 10
BOLT
€ 3.50
11-1
0110708125
ref: 11-1
MODEL L/M/N
BOLT
€ 1.50
11-2
0192408125
ref: 11-2
MODEL P
BOLT
€ 2.50
12
0832211084
ref: 12
WASHER
€ 1.50
13-1
4631015D110NF
ref: 13-1
OPT,MODEL L
CARRIER
€ 142.50
13-2
4631015D110RP
ref: 13-2
OPT,MODEL L
CARRIER
€ 154.50
13-3
4631015D130NF
ref: 13-3
OPT,MODEL M/N/P
CARRIER
€ 114.50
13-4
4631015D131AZ
ref: 13-4
OPT,MODEL M/N,DR350S
CARRIER,SPORT (YELLOW)
€ 618.00
13-5
46310150131TS
ref: 13-5
OPT,MODEL P
CARRIER,SPORT (WHITE)
€ 0.00
