REAR CALIPER (MODEL R)
DR350SU 1993 (P) AUSTRIA ( E39)

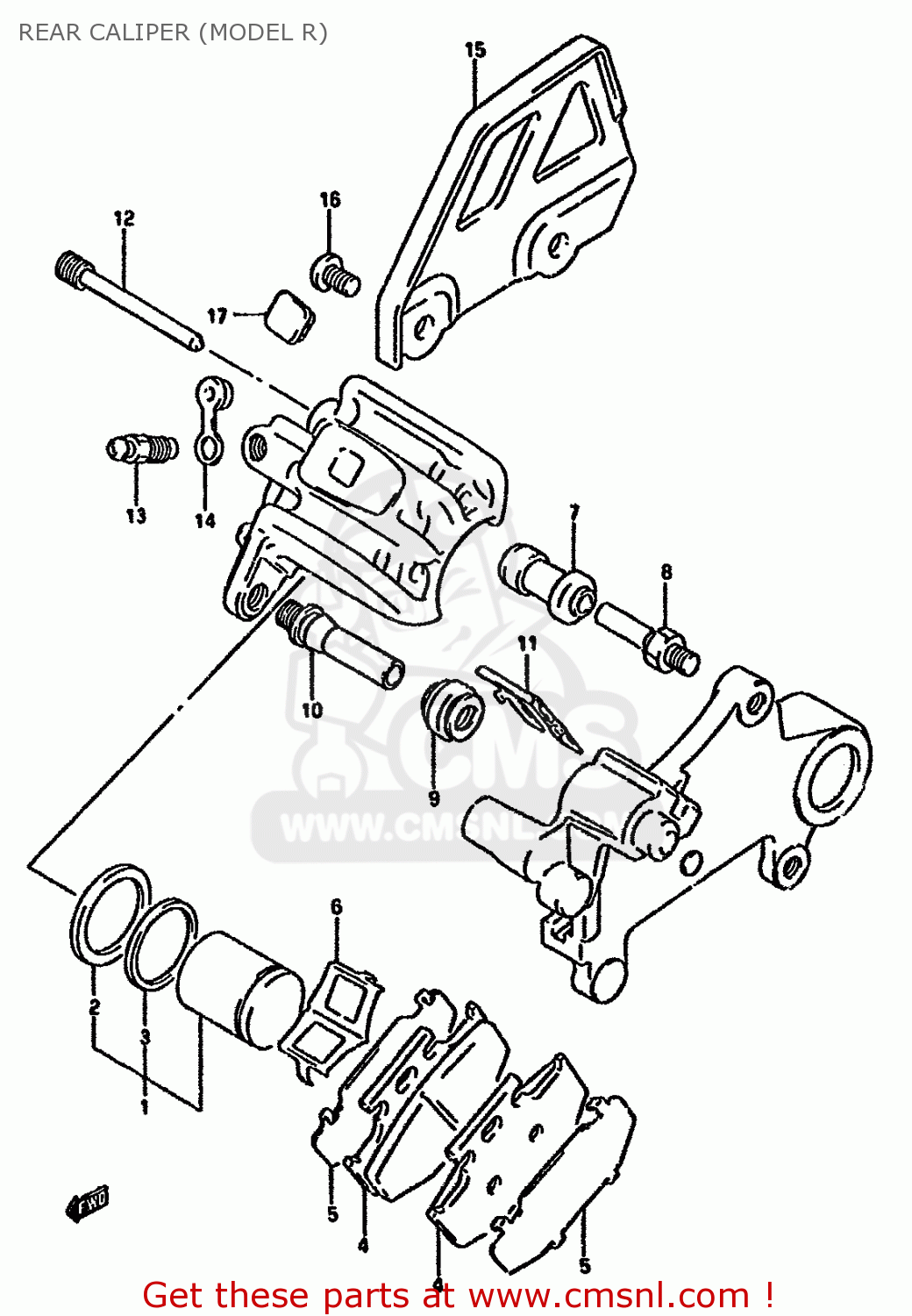

Rear caliper (model r) diagram DR350SU 1993 (P) AUSTRIA ( E39)
REAR CALIPER (MODEL R) DR350SU 1993 (P) AUSTRIA ( E39)
×
prices are in EUR
ref
part #
description
quantity
0
6910015D20
ref: 0
CALIPER ASSY,RR
€ 248.00
1
6910003810
ref: 1
PISTON SET
€ 56.50
2
5910717C00
ref: 2
SEAL,PISTON
€ 12.00
3
5910817C00
ref: 3
SEAL
€ 12.00
4
6914015D00
ref: 4
PAD (MCA)
€ 59.50
5
6913228C00
ref: 5
SHIM
€ 6.50
6
5931527C10
ref: 6
SPRING,PAD
€ 6.00
7
5938613A00
ref: 7
BOOT
€ 6.50
8
5938214500
ref: 8
PIN,BOLT
€ 7.50
9
5930314500
ref: 9
BOOT
€ 5.50
10
5930527C00
ref: 10
PIN
€ 13.50
11
6911343D00
ref: 11
RETAINER,BRACKET
€ 6.50
12
5934514600
ref: 12
PIN,HANGER
€ 10.50
13
5912101A00
ref: 13
BLEEDER
€ 8.50
14
5912201A00
ref: 14
CAP,BLEEDER
€ 4.50
15
6972514D00
ref: 15
GUARD,RR CALIPER
€ 18.50
16
0214206123
ref: 16
SCREW 6X12
€ 2.00
17
6917114D00
ref: 17
COVER,RR CALIPER BODY
€ 3.50
18
6917114D00
ref: 18
COVER,RR CALIPER BODY
€ 3.50
