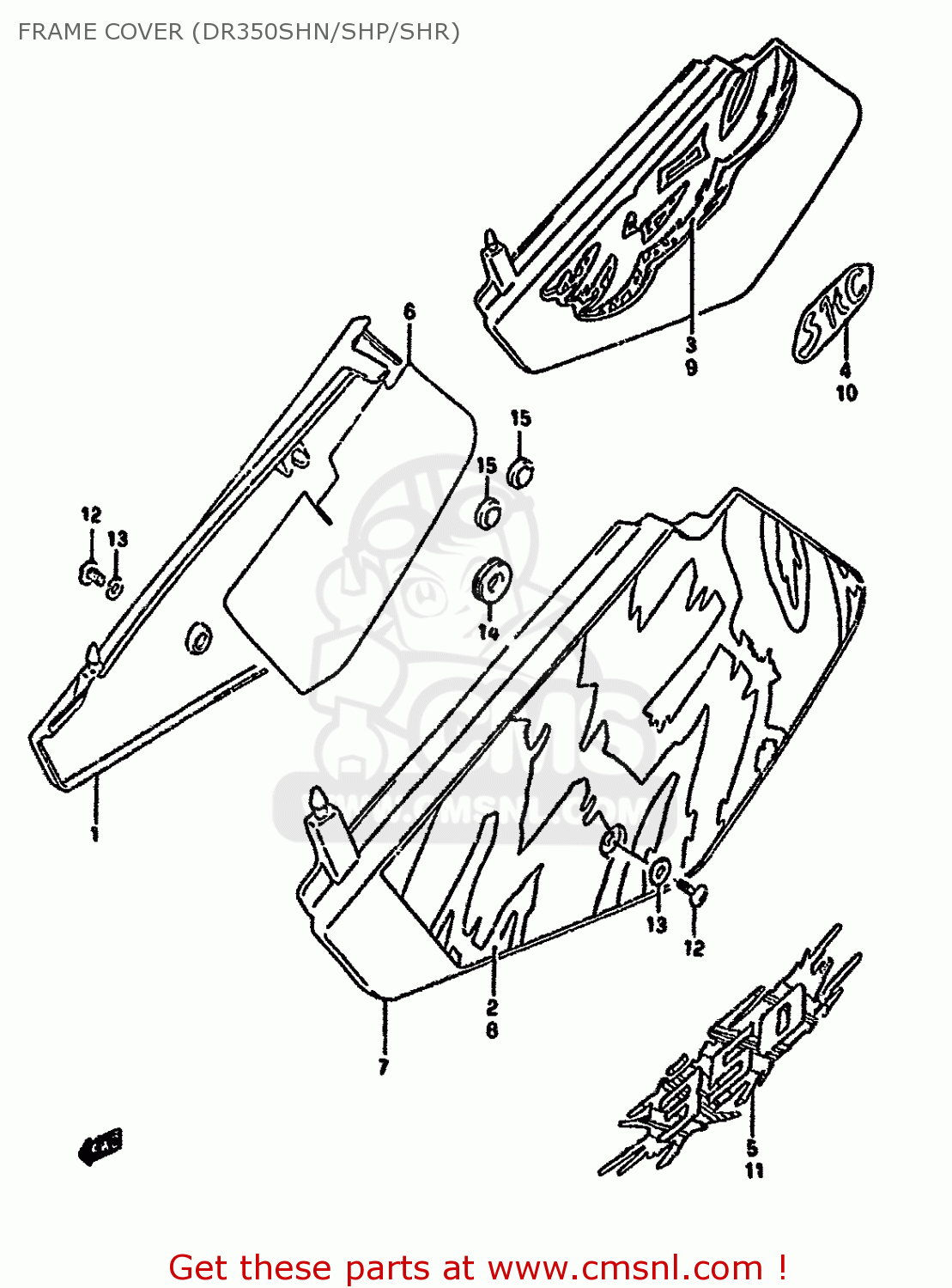

FRAME COVER (DR350SHN/SHP/SHR)

ref

part #

description

quantity

1

4711114D0030H
ref: 1

COVER,FRAME,R(WHITE)

€ 48.50

2-1

6813514D70MB2
ref: 2-1
MODEL N FOR 28X

TAPE,FRAME COVER RH

€ 0.00

2-2

6813514D70MB1
ref: 2-2
MODEL N FOR 30H

TAPE,FRAME COVER RH

€ 0.00

3-1

6813114E00A8A
ref: 3-1
MODEL P FOR 30H

EMBLEM,FRAME COVER,R

€ 37.00

3-2

6813114E00A4F
ref: 3-2
MODEL P FOR 28X

EMBLEM,FRAME COVER,RIGHT

€ 37.50

4

6813214E00A6N
ref: 4
MODEL P

EMBLEM "SHC"

€ 9.00

5-1

6814014D00C5B
ref: 5-1
MODEL R FOR C3P

EMBLEM,FRAME COVER

€ 34.00

5-2

6814014D001WN
ref: 5-2
MODEL R FOR C3K

EMBLEM

€ 34.50

6

4716614D00
ref: 6

SHIELD,FRAME COVER,R

€ 25.50

7

4721115D0030H
ref: 7

COVER,FRAME,L(WHITE)

€ 48.50

8-1

6814514D80MB2
ref: 8-1
MODEL N FOR 28X

TAPE,FRAME COVER LH

€ 0.00

8-2

6814514D80MB1
ref: 8-2
MODEL N FOR 30H

TAPE,FRAME COVER LH

€ 0.00

9-1

6814114E10A8A
ref: 9-1
MODEL P FOR 30H

EMBLEM,LH

€ 37.00

9-2

6814114E10A4F
ref: 9-2
MODEL P FOR 28X

EMBLEM,FRAME COVER,LEFT

€ 43.00

10

6813214E00A6N
ref: 10
MODEL P

EMBLEM "SHC"

€ 9.00

11-1

6814014D00C5B
ref: 11-1
MODEL R FOR C3P

EMBLEM,FRAME COVER

€ 34.00

11-2

6814014D001WN
ref: 11-2
MODEL R FOR C3K

EMBLEM

€ 34.50

12-1

0913906073
ref: 12-1
MODEL N

SCREW

€ 5.00

12-2

0214206167
ref: 12-2
MODEL P/R

SCREW

€ 2.00

13

0916906028
ref: 13

WASHER

€ 2.00

14

0932008029
ref: 14

CUSHION

€ 2.50

15

0932110018
ref: 15

CUSHION

€ 5.00
