GEAR SHIFTING
DR350SU 1993 (P) AUSTRIA ( E39)

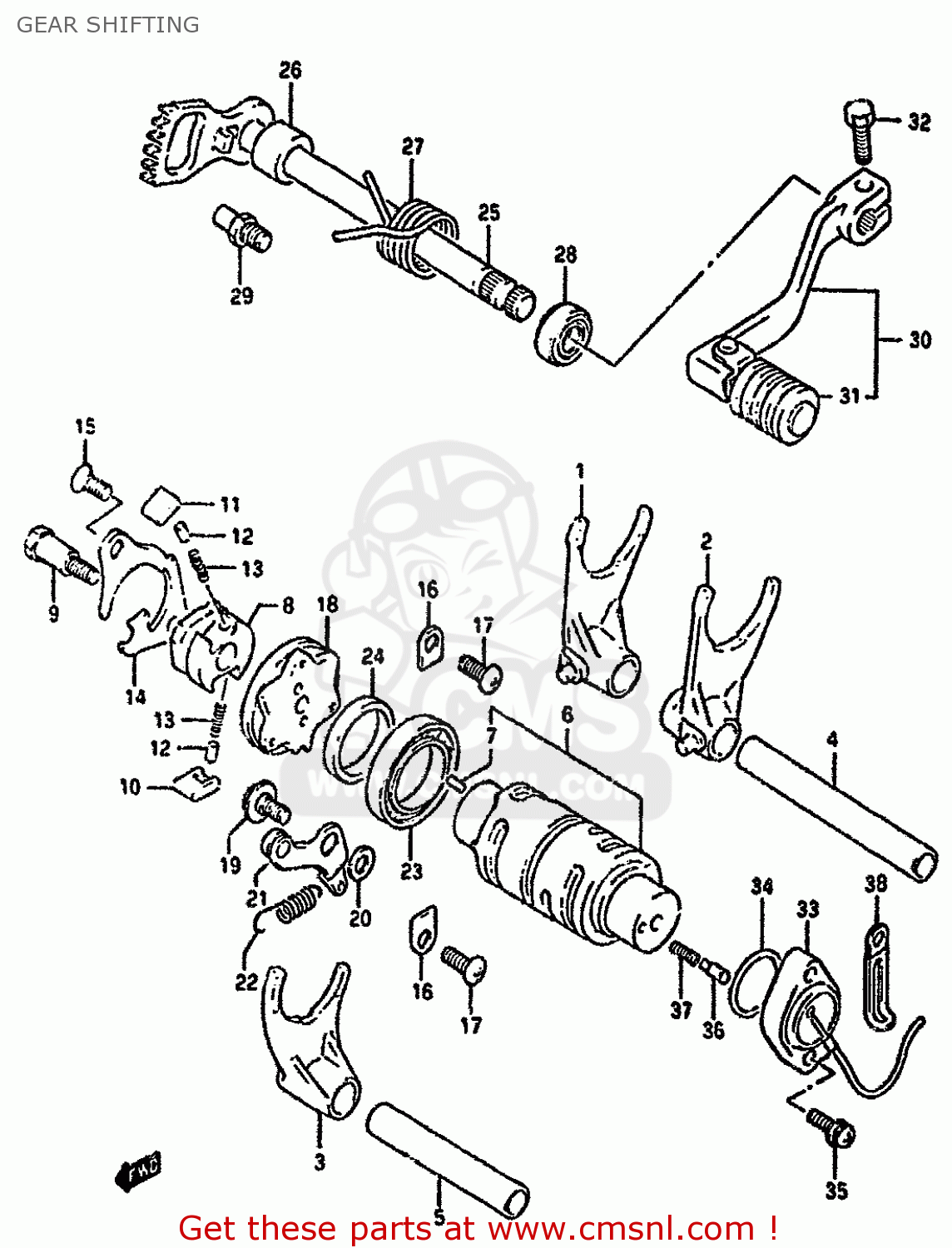

Gear shifting diagram DR350SU 1993 (P) AUSTRIA ( E39)
GEAR SHIFTING DR350SU 1993 (P) AUSTRIA ( E39)
×
prices are in EUR
ref
part #
description
quantity
1
2521114D01
ref: 1
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522114D02
ref: 2
FORK,GEAR SHIFT NO.2
€ 71.50
3
2523114D01
ref: 3
FORK,GEAR SHIFT NO.3
€ 71.50
4
2541127C00
ref: 4
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542114D00
ref: 5
SHAFT,GEAR SHIFT FORK(L:70)
€ 18.00
6
2531014D01
ref: 6
CAM,GEAR SHIFT
€ 117.00
7
0422104089
ref: 7
PIN
€ 1.50
8
2532231301
ref: 8
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9
2531238A00
ref: 9
PIN,SHIFT CAM DRIVEN GEAR
€ 4.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
€ 1.50
13
0944004003
ref: 13
SPRING
€ 1.50
14
2533114D00
ref: 14
LIFTER,GEAR SHIFT PAWL
€ 16.50
15
0212206128
ref: 15
SCREW
€ 3.00
16
2474121A00
ref: 16
RETAINER
€ 2.00
17
0211206128
ref: 17
SCREW 6X12
€ 2.00
18
2538014D01
ref: 18
PLATE,GEAR SHIFT CAM
€ 33.00
19
0911106041
ref: 19
BOLT(6X14.3)
€ 3.00
20
0821106141
ref: 20
WASHER
€ 2.50
21
2535014D01
ref: 21
STOPPER,GEAR SHIFT CAM
€ 10.50
22
0944309026
ref: 22
SPRING
€ 3.00
23
0811369050
ref: 23
BEARING
€ 36.00
24
0916025068
ref: 24
WASHER(25X32X5.3)
€ 5.50
25
2551014D01
ref: 25
SHAFT,GEAR SHIFT
€ 83.50
26
0918012068
ref: 26
SPACER(12X20X15.3)
€ 3.00
27
0944426004
ref: 27
SPRING
€ 4.00
28
0928512002
ref: 28
OIL SEAL
€ 7.00
29
2567136A00
ref: 29
STOPPER,GEAR SHIFT ARM
€ 3.00
30-1
2560014D04
ref: 30-1
MODEL L/M/N -25600-1
LEVER ASSY,GEAR SHIFT
€ 113.00
30-2
2560015D20
ref: 30-2
MODEL P/R
LEVER ASSY,GEAR SHIFT
€ 37.50
31
2565203D00
ref: 31
RUBBER,GEAR SHIFT PEDAL
€ 3.50
32-1
0110706205
ref: 32-1
MODEL L/M/N/P-09100-
BOLT
€ 2.00
32-2
0150006203
ref: 32-2
MODEL R
BOLT
€ 2.00
33-1
3772044400
ref: 33-1
MODEL L/M/N/P
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 103.50
33-2
3772047D00
ref: 33-2
MODEL R
BASE ASSY,NEUTRAL SW TERMINAL
€ 103.50
34
0928026005
ref: 34
O RING(D:2.4,ID:26.2)
€ 2.50
35
0211275208
ref: 35
SCREW
€ 3.00
36
0920905011
ref: 36
PIN(5X15.5)
€ 2.00
37
0944004010
ref: 37
SPRING
€ 1.50
38
0940406402
ref: 38
CLAMP
€ 2.50
