TAIL LAMP
DR350SU 1993 (P) AUSTRIA ( E39)

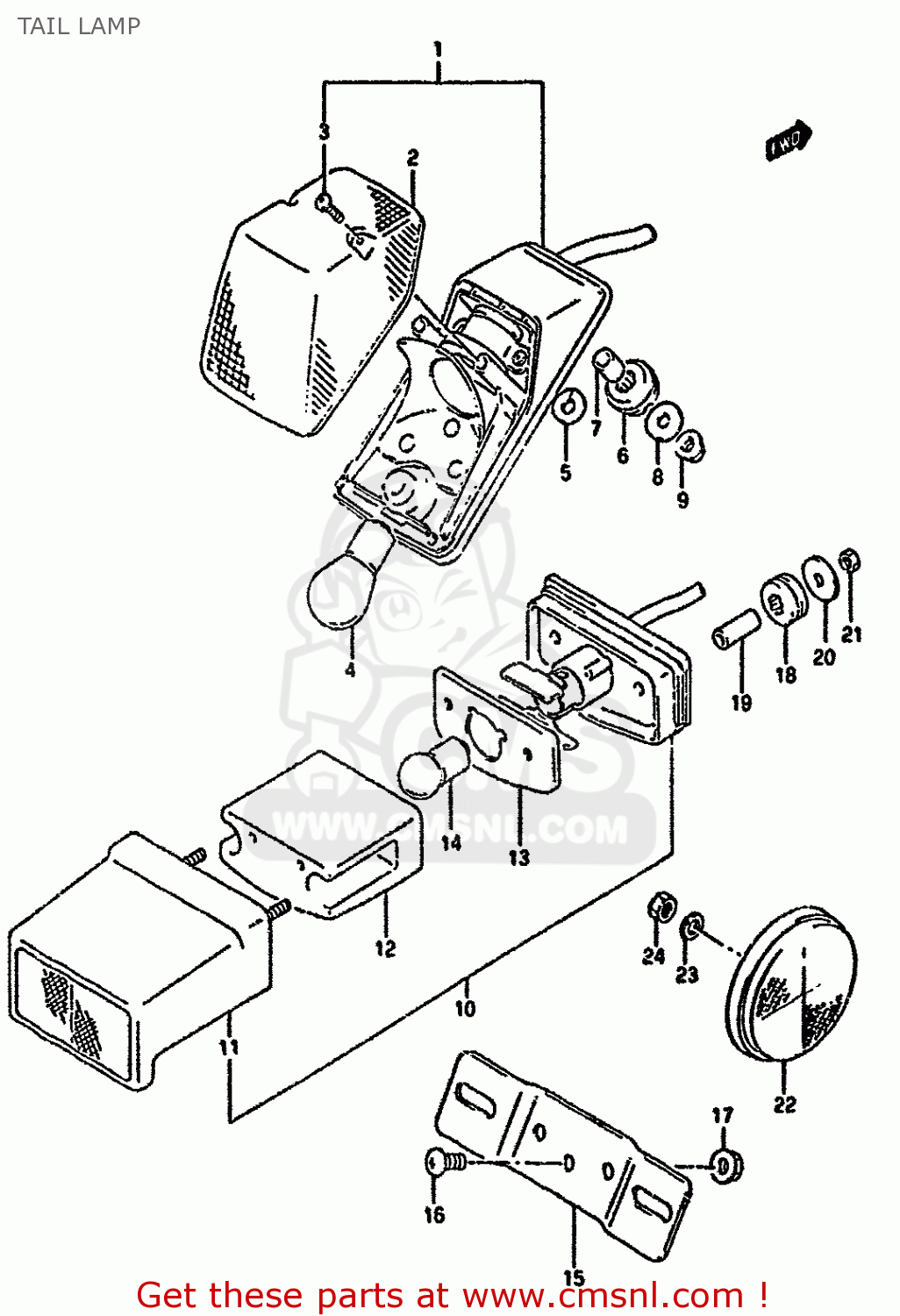

Tail lamp diagram DR350SU 1993 (P) AUSTRIA ( E39)
TAIL LAMP DR350SU 1993 (P) AUSTRIA ( E39)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571014D20
ref: 1-1
MODEL L/M/N
LAMP ASSY,TAIL
€ 105.00
1-2
3571014D21
ref: 1-2
MODEL P/R
LAMP ASSY,RR COMBINATION
€ 105.00
2
3571203D00
ref: 2
LENS
€ 18.50
3
0351104165
ref: 3
SCREW
€ 1.50
4
0947112083
ref: 4
BULB(12V21/5W)
€ 6.00
5
3592803D00
ref: 5
GASKET (NAS)
€ 3.00
6
0932009010
ref: 6
CUSHION
€ 2.50
7
0918006121
ref: 7
SPACER(6.4X9.2X12)
€ 2.50
8-1
0916006102
ref: 8-1
MODEL L/M/N
WASHER (6.5X20X1.6)
€ 2.00
8-2
0916006059
ref: 8-2
MODEL P
WASHER,COVER,FRONT
€ 2.00
8-3
0916006088
ref: 8-3
MODEL R
WASHER(6.5X20X1.6)
€ 2.00
9-1
0831616066
ref: 9-1
MODEL L/M/N
NUT
€ 2.50
9-2
0831012066
ref: 9-2
MODEL P
NUT
€ 2.00
9-3
0831000063
ref: 9-3
MODEL R
NUT 6MM
€ 2.00
10
3591014D10
ref: 10
LAMP ASSY,LICENSE
€ 159.50
11
3591714D10
ref: 11
REFLECTOR/COVER
€ 73.50
12
3591238A20
ref: 12
LENS
€ 13.00
13
3591338A30
ref: 13
GASKET,LICENSE LAMP (NAS)
€ 2.00
14
0947112140
ref: 14
BULB(12V5W,BF150-40160A)
€ 4.00
15-1
3592744110
ref: 15-1
PLATE,RR LICENSE
€ 22.50
15-2
3592714D20
ref: 15-2
E39
BRACKET, LICENSE PLATE
€ 0.00
16-1
0214206164
ref: 16-1
MODEL L/M/N/P
SCREW
€ 2.50
16-2
0214206163
ref: 16-2
MODEL R
SCREW
€ 2.50
17-1
0831616066
ref: 17-1
MODEL L/M/N/P
NUT
€ 2.50
17-2
0831610063
ref: 17-2
MODEL R
NUT
€ 2.50
18
0932009009
ref: 18
CUSHION
€ 5.00
19
0918005040
ref: 19
SPACER (5.5X9.5X19.50)
€ 4.00
20-1
0916005039
ref: 20-1
MODEL L/M/N/P
WASHER (5.1X20X1.4)
€ 2.00
20-2
0916005501
ref: 20-2
MODEL R
WASHER(5.5X20X1.2)
€ 2.00
21-1
0831022056
ref: 21-1
MODEL L/M/N/P
NUT 5MM
€ 2.50
21-2
0831000053
ref: 21-2
MODEL R
NUT
€ 2.50
22
3595014A00
ref: 22
E39
REFLECTOR,REFLEX FR
€ 15.00
23-1
0832121055
ref: 23-1
MODEL L/M/N/P E39
WASHER,LOCK
€ 3.00
23-2
0832101053
ref: 23-2
MODEL R E39
LOCK,WASHER
€ 3.00
24-1
0831012055
ref: 24-1
MODEL L/M/N/P E39
NUT ,5MM
€ 2.50
24-2
0831000053
ref: 24-2
MODEL R E39
NUT
€ 2.50
