RIGHT HANDLE SWITCH (SEE NOTE)

DR350SU 1993 (P) AUSTRIA ( E39)

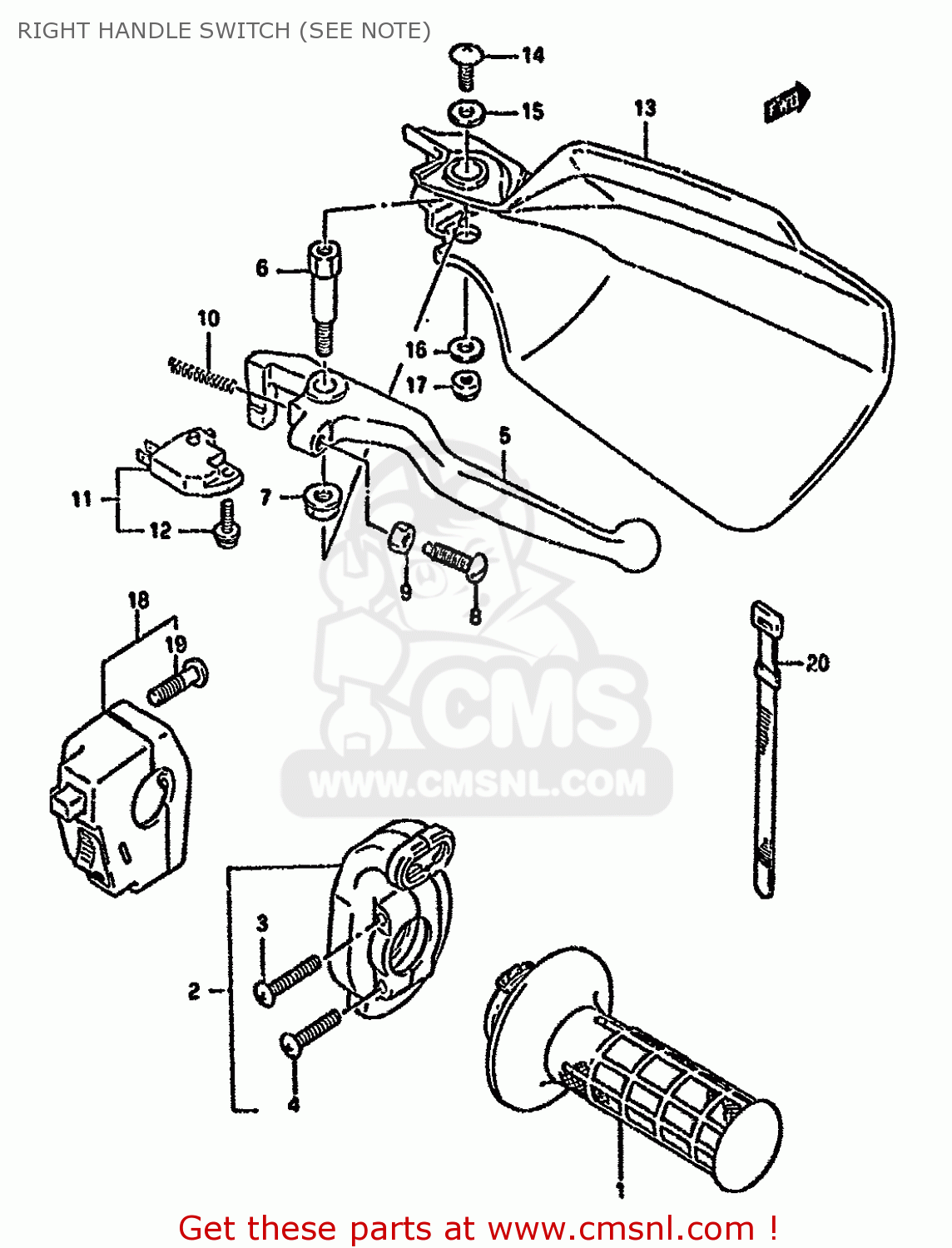

Right handle switch (see note) diagram DR350SU 1993 (P) AUSTRIA ( E39)

RIGHT HANDLE SWITCH (SEE NOTE) DR350SU 1993 (P) AUSTRIA ( E39)
RIGHT HANDLE SWITCH (SEE NOTE) DR350SU 1993 (P) AUSTRIA ( E39)
RIGHT HANDLE SWITCH (SEE NOTE) DR350SU 1993 (P) AUSTRIA ( E39)
prices are in EUR
ref
part #
description
quantity
1
5711014D11
ref: 1
GRIP,THROTTLE
5711014D11
€ 25.50
2
5710014D00
ref: 2
CASE ASSY,THROTTLE
5710014D00
€ 24.00
3
0912505066
ref: 3
SCREW(5X25)
0912505066
€ 2.00
4
0211205205
ref: 4
SCREW 5X20
0211205205
€ 2.50
5
5742103D00
ref: 5
LEVER,BRAKE
5742103D00
€ 14.50
6
5743105D00
ref: 6
BOLT,BRAKE LEVER PIVOT
5743105D00
€ 9.00
7
0831921068
ref: 7
NUT 6MM
0831921068
€ 2.00
8
5743114511
ref: 8
BOLT,ADJUST
5743114511
€ 3.50
9
0831012055
ref: 9
NUT ,5MM
0831012055
€ 2.50
10
5731814502
ref: 10
SPRING,RETURN
5731814502
€ 3.00
11
5746017C00
ref: 11
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
12
5746517C00
ref: 12
SCREW
5746517C00
€ 1.50
13-1
5734105D000NF
ref: 13-1
FOR 28X,C3K
COVER,KNUCKLE,R
5734105D000NF
€ 28.00
13-2
5734105D0025Y
ref: 13-2
FOR 30H,C3P
COVER,KNUCKLE,R
5734105D0025Y
€ 24.50
14-1
0912505042
ref: 14-1
MODEL L/M/N/P
SCREW(5X10)
0912505042
€ 2.50
14-2
0214205107
ref: 14-2
DR350SR
SCREW
0214205107
€ 2.50
14-3
0912505042
ref: 14-3
DR350SHR
SCREW(5X10)
0912505042
€ 2.50
15-1
0916005017
ref: 15-1
DR350SN/SP/SR
WASHER (5.5X16X1.2)
0916005017
€ 2.50
15-2
0916005024
ref: 15-2
DR350SHN/SHP/SHR
WASHER(5.5X16X1.5)
0916005024
€ 1.50
16
0916006042
ref: 16
WASHER (6.5X17X1.6)
0916006042
€ 2.00
17
0831921068
ref: 17
NUT 6MM
0831921068
€ 2.00
18-1
3720003D11
ref: 18-1
-37200-14A01
SWITCH ASSY, HANDLE, RH
€ 101.50
18-2
3720014A01
ref: 18-2
SWITCH ASSY,HANDLE,R
3720014A01
€ 101.50
19
0912505066
ref: 19
SCREW(5X25)
0912505066
€ 2.00
20
0940712402
ref: 20
CLAMP(L:120)
0940712402
€ 3.00
