REAR CUSHION LEVER
DR350SU 1993 (P) AUSTRIA ( E39)

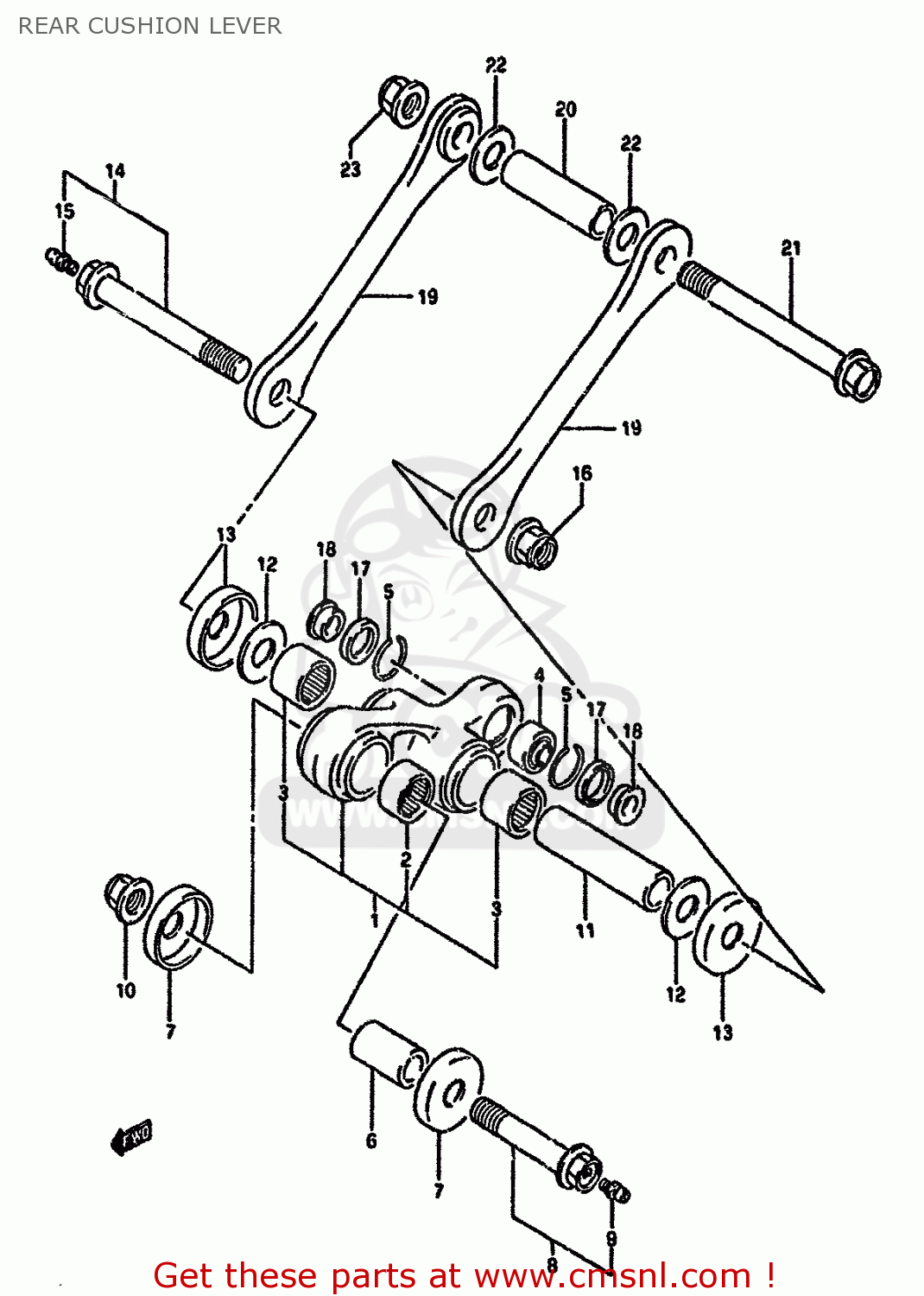

Rear cushion lever diagram DR350SU 1993 (P) AUSTRIA ( E39)
REAR CUSHION LEVER DR350SU 1993 (P) AUSTRIA ( E39)
×
prices are in EUR
ref
part #
description
quantity
1-1
6260214850
ref: 1-1
DR350SL/SM/SN/SP/SR
LEVER SET,RR CUSHION
€ 282.00
1-2
6260015830
ref: 1-2
DR350SHN/SHP/SHR
LEVER SET,REAR CUSHION
€ 290.50
2
0926320074
ref: 2
BEARING(20X27X32)
€ 25.00
3
0926320071
ref: 3
BEARING(20X27X23.5)
€ 21.50
4
6217527C00
ref: 4
BEARING,REAR SHOCK ABSORBER
€ 66.00
5
6265734A01
ref: 5
RING,STOPPER
€ 1.50
6
6231705D00
ref: 6
SPACER,RR CUSHION LEVER FR
€ 18.50
7
6216228C01
ref: 7
SEAL,REAR CUSHION LEVER
€ 6.50
8
6265014D00
ref: 8
BOLT,RR CUSHION LEVER FR
€ 12.50
9
0835121008
ref: 9
GREASE NIPPLE
€ 13.50
10
0831931128
ref: 10
NUT 12MM
€ 4.00
11
6262614D00
ref: 11
SPACER,RR CUSHION LEVER CTR
€ 20.00
12
0821114321
ref: 12
WASHER
€ 4.00
13
6268327C00
ref: 13
SEAL,RR CUSHION LEVER
€ 7.00
14
6262014D00
ref: 14
BOLT,RR CUSHION LEVER CTR
€ 26.50
15
0835121008
ref: 15
GREASE NIPPLE
€ 13.50
16
0831931148
ref: 16
NUT
€ 9.00
17
0928517001
ref: 17
SEAL,OIL(17X24X3)
€ 3.50
18
6268427C10
ref: 18
COLLAR
€ 9.00
19-1
6264014D00
ref: 19-1
DR350SL/SM/SN/SP/SR
ROD,RR CUSHION
€ 44.50
19-2
6264015D50
ref: 19-2
DR350SHN/SHP/SHR
ROD,REAR CUSHION
€ 0.00
20
6264614D00
ref: 20
SPACER,RR CUSHION ROD
€ 17.00
21-1
6262214D00
ref: 21-1
DR350SL,DR350SHN/SHP
BOLT,REAR CUSHION ROD
€ 9.50
21-2
6262214D10
ref: 21-2
DR350SM/SN/SP/SR
BOLT,RR CUSHION ROD
€ 29.50
22
0821114323
ref: 22
WASHER
€ 3.50
23
0831931148
ref: 23
NUT
€ 9.00
