REAR WHEEL
DR350SU 1993 (P) AUSTRIA ( E39)

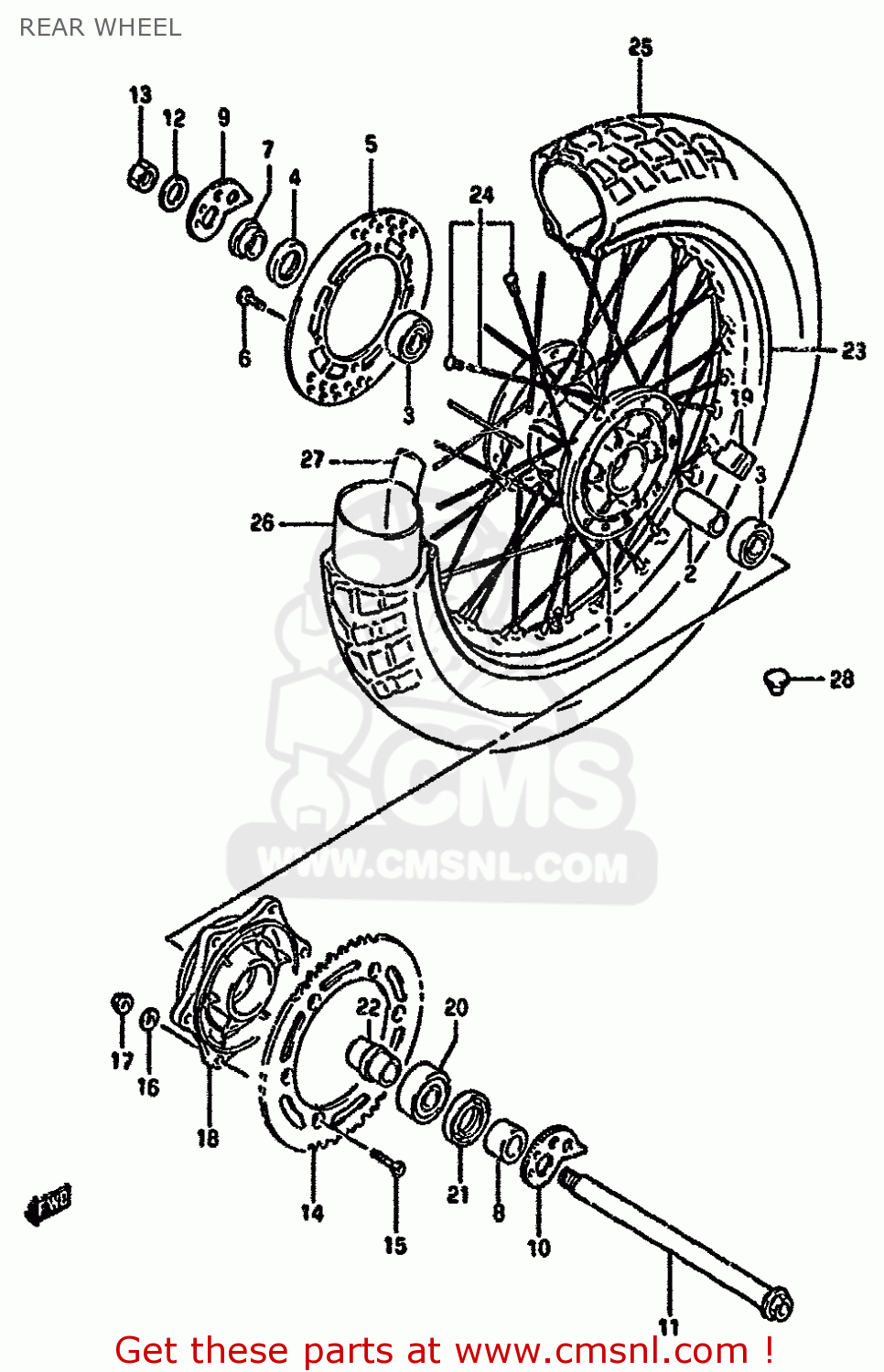

Rear wheel diagram DR350SU 1993 (P) AUSTRIA ( E39)
REAR WHEEL DR350SU 1993 (P) AUSTRIA ( E39)
×
prices are in EUR
ref
part #
description
quantity
1
6411115D00
ref: 1
HUB,RR WHEEL
€ 307.50
2
6473115D00
ref: 2
SPACER,RR HUB BEARING
€ 14.00
3
0812362047
ref: 3
BEARING
€ 17.00
4
0928326019
ref: 4
SEAL,OIL(26X47X5)
€ 9.50
5
6921103D01
ref: 5
DISC,RR BRAKE
€ 160.00
6-1
0910608091
ref: 6-1
MODEL L/M/N-09106-08
BOLT
€ 4.00
6-2
0910608111
ref: 6-2
MODEL P/R
BOLT
€ 4.00
7
6474105D00
ref: 7
SPACER,RR AXLE,R
€ 9.00
8
6475115D00
ref: 8
SPACER,RR AXLE,L
€ 17.50
9-1
6141014D00
ref: 9-1
MODEL L
ADJUSTER,CHAIN
€ 26.50
9-2
6141014D10
ref: 9-2
MODEL M/N/P/R
ADJUSTER,CHAIN,R
€ 31.50
10-1
6142114D00
ref: 10-1
MODEL L
ADJUSTER,CHAIN,LEFT
€ 12.00
10-2
6142114D10
ref: 10-2
MODEL M/N/P/R
ADJUSTER,CHAIN,L
€ 15.00
11-1
6471115D10
ref: 11-1
MODEL L-64710-14D20
AXLE,REAR (L:282.7)
€ 72.00
11-2
6471115D60
ref: 11-2
MODEL M/N/P
AXLE,REAR (L:283.5)
€ 70.00
11-3
6471115D50
ref: 11-3
MODEL R
AXLE,RR
€ 70.00
12
0916019022
ref: 12
WASHER(19X32X3.2)
€ 5.00
13
0831921188
ref: 13
NUT 18MM
€ 3.50
14-1
6451114D11
ref: 14-1
MODEL L/M/N-64511-22
SPROCKET,REAR
€ 78.50
14-2
6451122D10
ref: 14-2
MODEL P
SPROCKET,REAR
€ 78.50
14-3
6451115D50
ref: 14-3
MODEL R
SPROCKET,RR(NT:41)
€ 60.00
15
0912008010
ref: 15
BOLT(8X30.5)
€ 2.50
16-1
0832211088
ref: 16-1
MODEL L/M/N/P
WASHER
€ 2.00
16-2
0832201083
ref: 16-2
MODEL R
WASHER
€ 1.50
17
0831931087
ref: 17
NUT
€ 2.50
18
6461115D00
ref: 18
DRUM,REAR SPROCKET MOUNT
€ 75.50
19
6465115D00
ref: 19
ABSORBER,RR HUB SHOCK
€ 9.00
20
0926225061
ref: 20
BEARING(25X52X15)
€ 27.50
21
0928334003
ref: 21
SEAL,OIL(34X52X6)
€ 9.00
22
6473315D00
ref: 22
RETAINER,RR SPROCKET DRUM
€ 23.00
23-1
6531115D00
ref: 23-1
DR350SL/SM/SN/SP/SR
RIM,REAR WHEEL (18X2.15)
€ 250.50
23-2
6531115D00
ref: 23-2
DR350SN/SP/SR E16,E2
RIM,REAR WHEEL (18X2.15)
€ 250.50
23-3
6531115D10
ref: 23-3
DR350SN/SP/SR E16,24
RIM,REAR WHEEL (18X2.15)
€ 340.00
24
6532015D00
ref: 24
SPOKE SET,RR WHEEL
€ 54.50
25-1
6511015D00
ref: 25-1
MODEL L/M
TIRE
€ 201.00
25-2
6511008D10
ref: 25-2
MODEL N/P/R
TIRE,REAR 110/90-18
€ 201.00
26
6520014540
ref: 26
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
27
6526115D00
ref: 27
PROTECTOR,WHL INR TUBE
€ 5.50
28
0925008013
ref: 28
CAP(OD:12)
€ 2.00
