CRANKSHAFT
DR350SU 1993 (P) AUSTRIA ( E39)

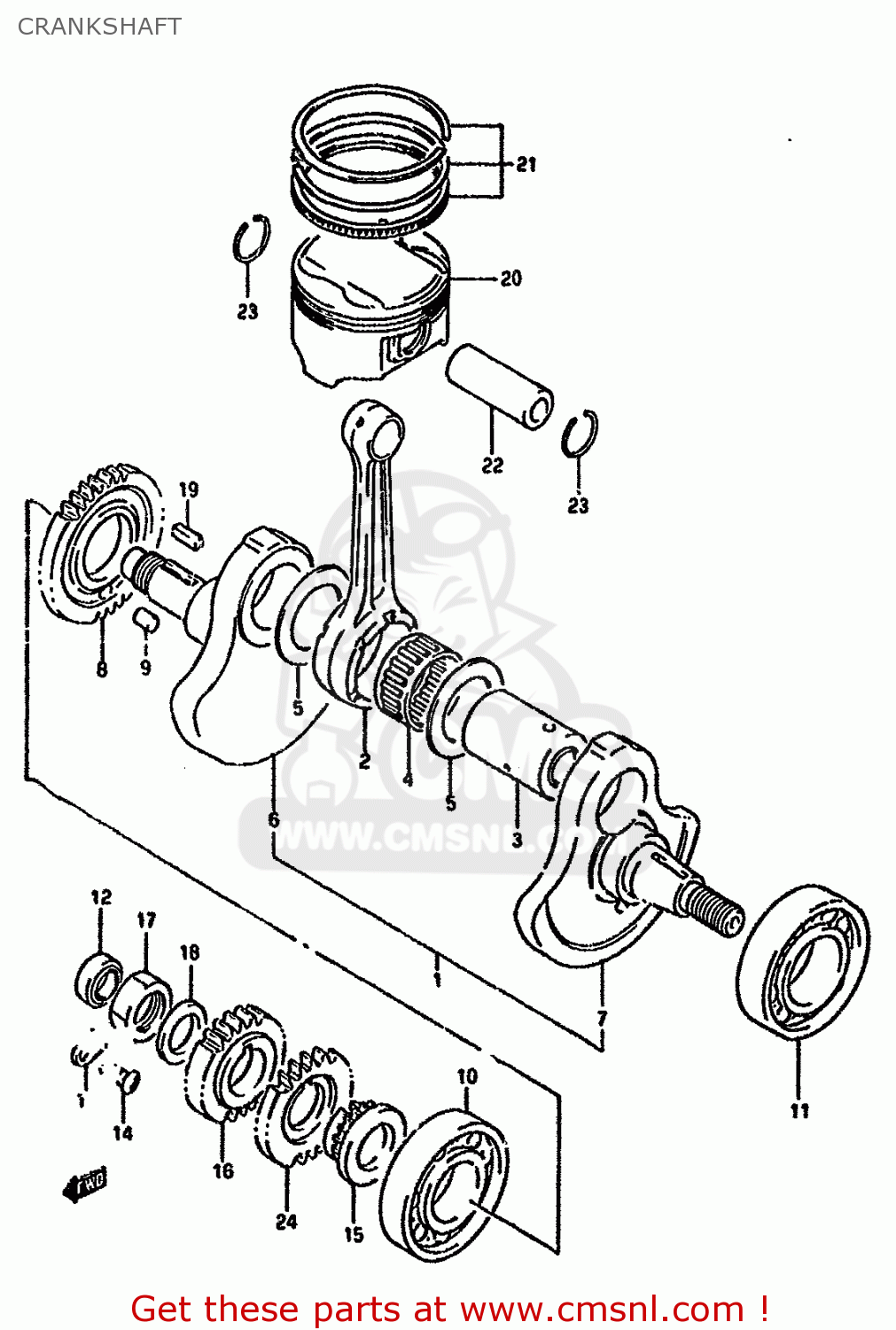

Crankshaft diagram DR350SU 1993 (P) AUSTRIA ( E39)
CRANKSHAFT DR350SU 1993 (P) AUSTRIA ( E39)
×
prices are in EUR
ref
part #
description
quantity
1
1220014D00
ref: 1
CRANKSHAFT ASSY
€ 695.50
2
1216114D00
ref: 2
ROD,CONNECTING
€ 98.50
3
1221014D02
ref: 3
PIN COMP,CRANK
€ 56.00
4
0926334005
ref: 4
BEARING(34X43X22)
€ 45.50
5
0916034003
ref: 5
WASHER(34X52X1)
€ 6.50
6-1
1222114D00
ref: 6-1
MODEL L/M/N/P
CRANKSHAFT
€ 302.50
6-2
1222114D01
ref: 6-2
MODEL R
CRANKSHAFT,R
€ 302.50
7
1226114D00
ref: 7
CRANKSHAFT,L
€ 179.50
8
1266114D00
ref: 8
GEAR,CRANK BAL DRIVE(NT:37)
€ 118.00
9
0422108149
ref: 9
PIN
€ 2.50
10
0926230077
ref: 10
BEARING(30X72X19)
€ 47.50
11
0926235038
ref: 11
BEARING(35X72X17)
€ 38.00
12
0928214003
ref: 12
SEAL,OIL(14X24X6)
€ 8.00
13
2474218A00
ref: 13
RETAINER,BEARING
€ 2.00
14
0211206123
ref: 14
SCREW
€ 1.50
15
1273114D00
ref: 15
NT:17
SPROCKET,CAM CHAIN DRIVE
€ 50.00
16-1
2111114D00
ref: 16-1
MODEL L/M/N/P
GEAR,PRIMARY DRIVE
€ 41.00
16-2
2111115D20
ref: 16-2
MODEL R
GEAR,PRIMARY DRIVE (NT:
€ 50.00
17
0914018012
ref: 17
NUT
€ 8.00
18
0916418001
ref: 18
WASHER
€ 3.00
19
0942105009
ref: 19
KEY
€ 8.00
20-1
1211114D000F0
ref: 20-1
MODEL L/M/N/P
PISTON (79.00MM)
€ 81.50
20-2
1211114D010F0
ref: 20-2
MODEL R
PISTON
€ 81.50
20-3
1211114D00050
ref: 20-3
OPT,MODEL L/M/N/P
PISTON (OS:0.5)
€ 133.00
20-4
1211114D01050
ref: 20-4
OPT,MODEL R
PISTON (OS:0.5)
€ 133.00
20-5
1211114D00100
ref: 20-5
OPT,MODEL L/M/N/P
PISTON (OS:1.0)
€ 107.00
20-6
1211114D01100
ref: 20-6
OPT,MODEL R
PISTON
€ 107.00
21-1
1214014D10
ref: 21-1
RING SET,PISTON
€ 57.00
21-2
1214014D10050
ref: 21-2
OPT
RING SET,PISTON(OS:0.50)
€ 70.00
21-3
1214014D10100
ref: 21-3
OPT
RING SET,PISTON(OS:1.0)
€ 63.00
22
1215124A00
ref: 22
PIN,PISTON
€ 18.50
23
0938120004
ref: 23
CIRCLIP,PISTON PIN
€ 2.00
24
1632115000
ref: 24
MODEL R
GEAR,OIL PUMP DRIVE
€ 0.00
