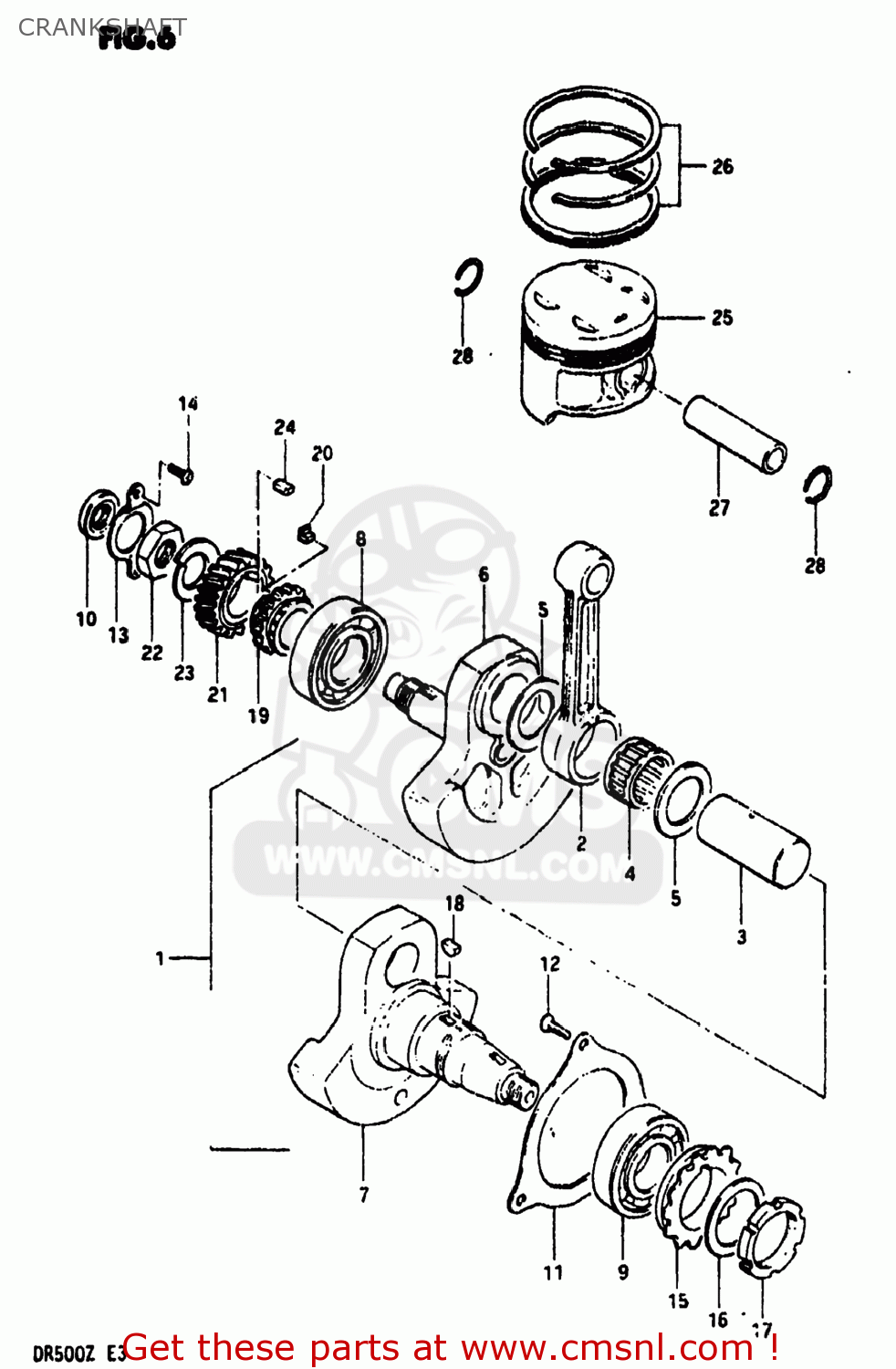

CRANKSHAFT

ref

part #

description

quantity

1

1220037401
ref: 1

CRANKSHAFT ASSEMBLY

€ 736.00

2

1216137400
ref: 2

ROD,CONNECTING

€ 91.00

3

1221037401
ref: 3
12210-12D10

PIN,CRANK

€ 82.50

4

0926335009
ref: 4

BEARING(35X44X26)

€ 54.00

5

0916035005
ref: 5

WASHER(35X55X1)

€ 8.00

6

1222037402
ref: 6

CRANKSHAFT

€ 0.00

7

1226137401
ref: 7

CRANKSHAFT,LEFT

€ 0.00

8

0926235009
ref: 8

BEARING(35X80X21)

€ 68.50

9

0926245003
ref: 9
09262-45011

BEARING

€ 50.00

10

0928216002
ref: 10

SEAL,OIL(16X30X6)

€ 8.50

11

1254137400
ref: 11

RETAINER,CRANKSHAFT BEARING,L

€ 13.50

12

0212206168
ref: 12
02122-06167

SCREW

€ 2.00

13

1254837400
ref: 13

RETAINER,CRANKSHAFT BEARING,R

€ 6.50

14

0211205088
ref: 14
02112-05087

SCREW

€ 2.00

15

1266237401
ref: 15
12662-37402

SPROCKET,BALANCER DRIVE

€ 161.00

16

0916440003
ref: 16

WASHER

€ 3.50

17

1266437400
ref: 17
12664-44B00

NUT,FLYWHEEL

€ 26.00

18

0834131039
ref: 18

KEY

€ 2.00

19

1273137400
ref: 19

SPROCKET,CAM CHAIN DRIVE

€ 91.00

20

1274932400
ref: 20

KEY,SPROCKET

€ 13.50

21

2111137400
ref: 21

GEAR,PRIMARY DRIVE

€ 33.50

22

0914020008
ref: 22
09140-20013

NUT (20MM)

€ 4.00

23

0916420003
ref: 23

WASHER

€ 2.50

24

0942107002
ref: 24

KEY

€ 4.00

25-1

1211137400
ref: 25-1
12111-37401

PISTON

€ 109.50

25-2

1211137400050
ref: 25-2
12103-37820-050

PISTON

€ 134.00

25-3

1211137400100
ref: 25-3
12103-37820-100

PISTON

€ 165.00

26-1

1214037430
ref: 26-1

RING SET,PISTON

€ 65.50

26-2

1214037430050
ref: 26-2

RING SET,PISTON (OS:0.5)

€ 0.00

26-3

1214037430100
ref: 26-3

RING SET,PISTON

€ 44.00

27

1215137400
ref: 27

PISTON PIN

€ 26.00

28

0938121002
ref: 28

RING,SNAP

€ 1.50
