CYLINDER

DR500 1981 (X) USA (E03)

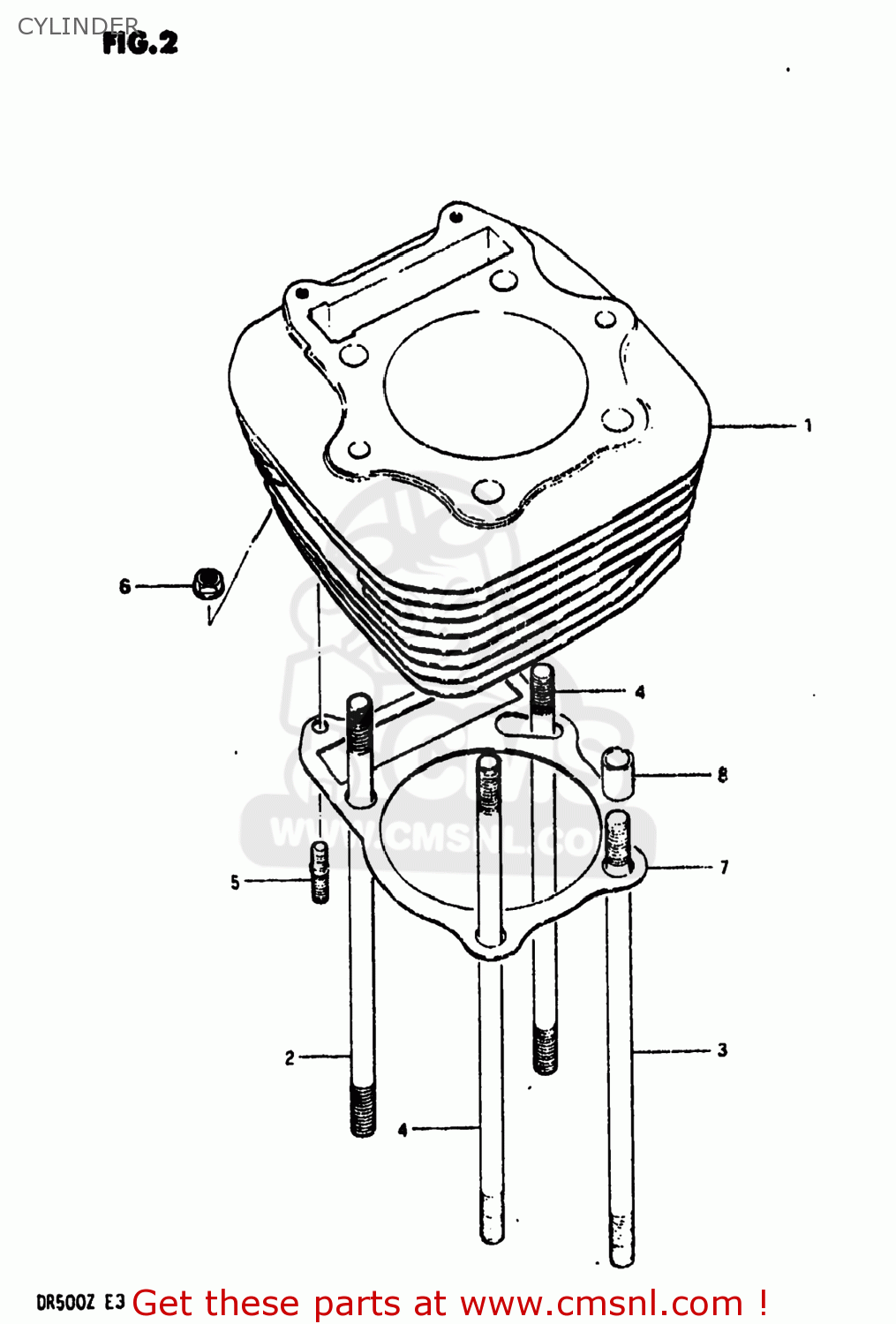

Cylinder diagram DR500 1981 (X) USA (E03)

CYLINDER DR500 1981 (X) USA (E03)

CYLINDER DR500 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121037403
ref: 1

CYLINDER

€ 468.50

2

0910810034
ref: 2
09108-10069

STUD

€ 7.00

3

0910810040
ref: 3

STUD

€ 4.00

4

0910810041
ref: 4

BOLT,STUD

€ 9.00

5

0142106258
ref: 5
01421-06257

STUD 6X25

€ 2.50

6

0831616068
ref: 6
08319-31067

NUT

€ 2.50

7

1124137401
ref: 7

GASKET,CYLINDER (MCA)

€ 11.50

8

0920613001
ref: 8
04211-13189

PIN

€ 2.50
