STAND - REAR BRAKE
DR500 1981 (X) USA (E03)

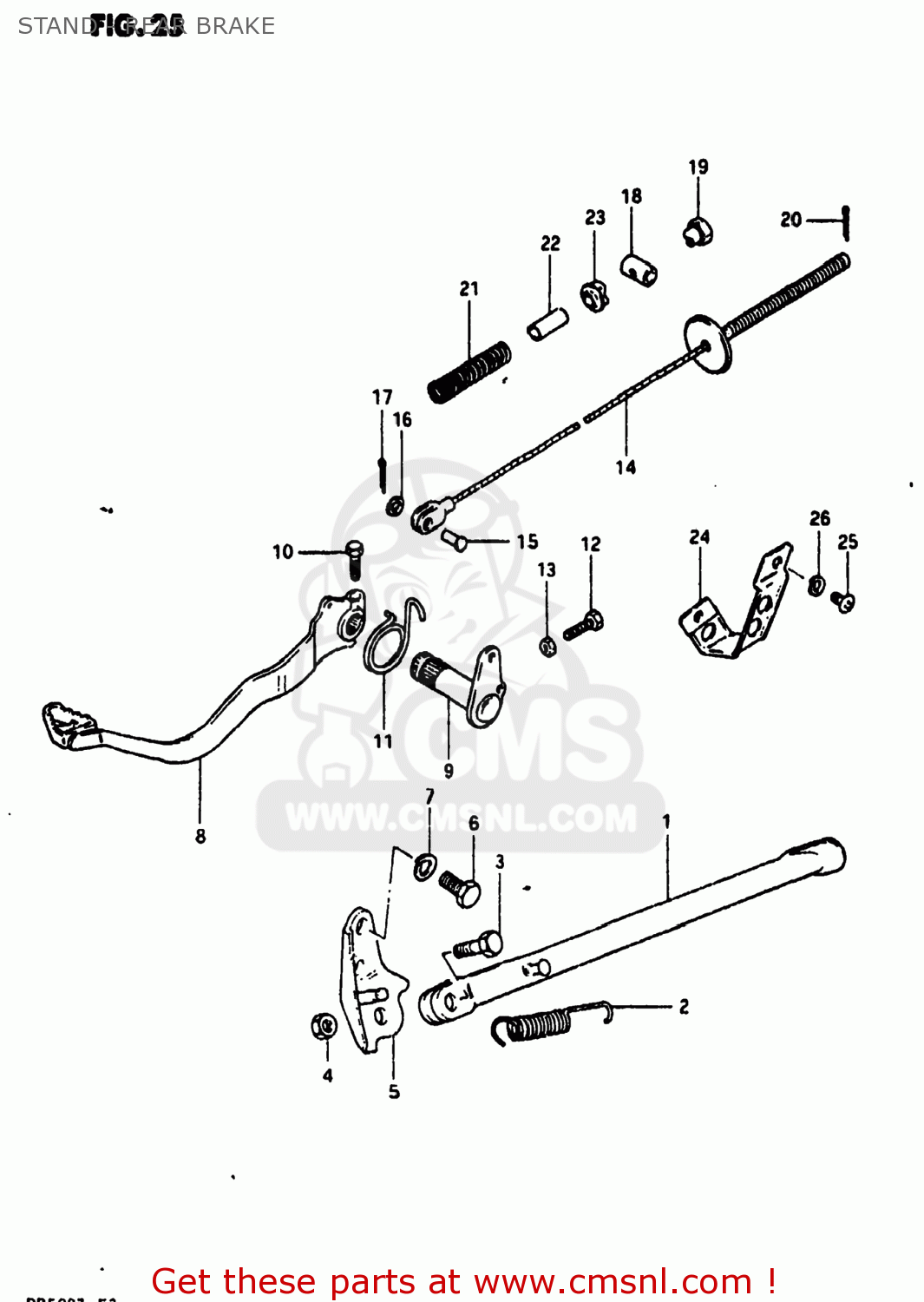

Stand - rear brake diagram DR500 1981 (X) USA (E03)
STAND - REAR BRAKE DR500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231032501
ref: 1
42310-05280-019
STAND,SIDE
€ 94.50
2
0944317007
ref: 2
SPRING
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
4233040400
ref: 5
BRACKET,PROP STAND
€ 65.00
6
0910010118
ref: 6
BOLT(10X19)
€ 3.00
7
0832121108
ref: 7
08321-01107
LOCK WASHER
€ 2.00
8
4311037401
ref: 8
PEDAL,BRAKE
€ 47.00
9
4312037400
ref: 9
ARM,BRAKE PEDAL
€ 23.00
10
0110706208
ref: 10
01500-06207
BOLT
€ 2.00
11
0944825005
ref: 11
09448-25005-XC0
SPRING
€ 3.50
12
0910006009
ref: 12
BOLT(6X23)
€ 1.50
13
0831011068
ref: 13
08310-00067
NUT
€ 2.50
14
5851040400
ref: 14
CABLE,RR BRAKE
€ 19.50
15
0920005001
ref: 15
PIN(L:17.5)
€ 1.50
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
17
0411120158
ref: 17
04111-2015A
PIN
€ 1.50
18
4338037200
ref: 18
PIN,BRAKE CABLE ADJUSTER
€ 16.00
19
0915006001
ref: 19
09150-06010
NUT
€ 3.50
20
0411120158
ref: 20
04111-2015A
PIN
€ 1.50
21
0944011012
ref: 21
SPRING
€ 3.00
22
6115579000
ref: 22
44420-44AR0
CUSHION,FR GRILLE,UPPER
€ 13.00
23
4337037300
ref: 23
CUSHION
€ 5.50
24
5862240400
ref: 24
GUIDE,CABLE
€ 2.50
25
0211205108
ref: 25
02112-05107
SCREW
€ 2.00
26
0832121058
ref: 26
08321-0105A
LOCK WASHER
€ 2.00
