STEERING STEM (MODEL Z)
DR500 1981 (X) USA (E03)

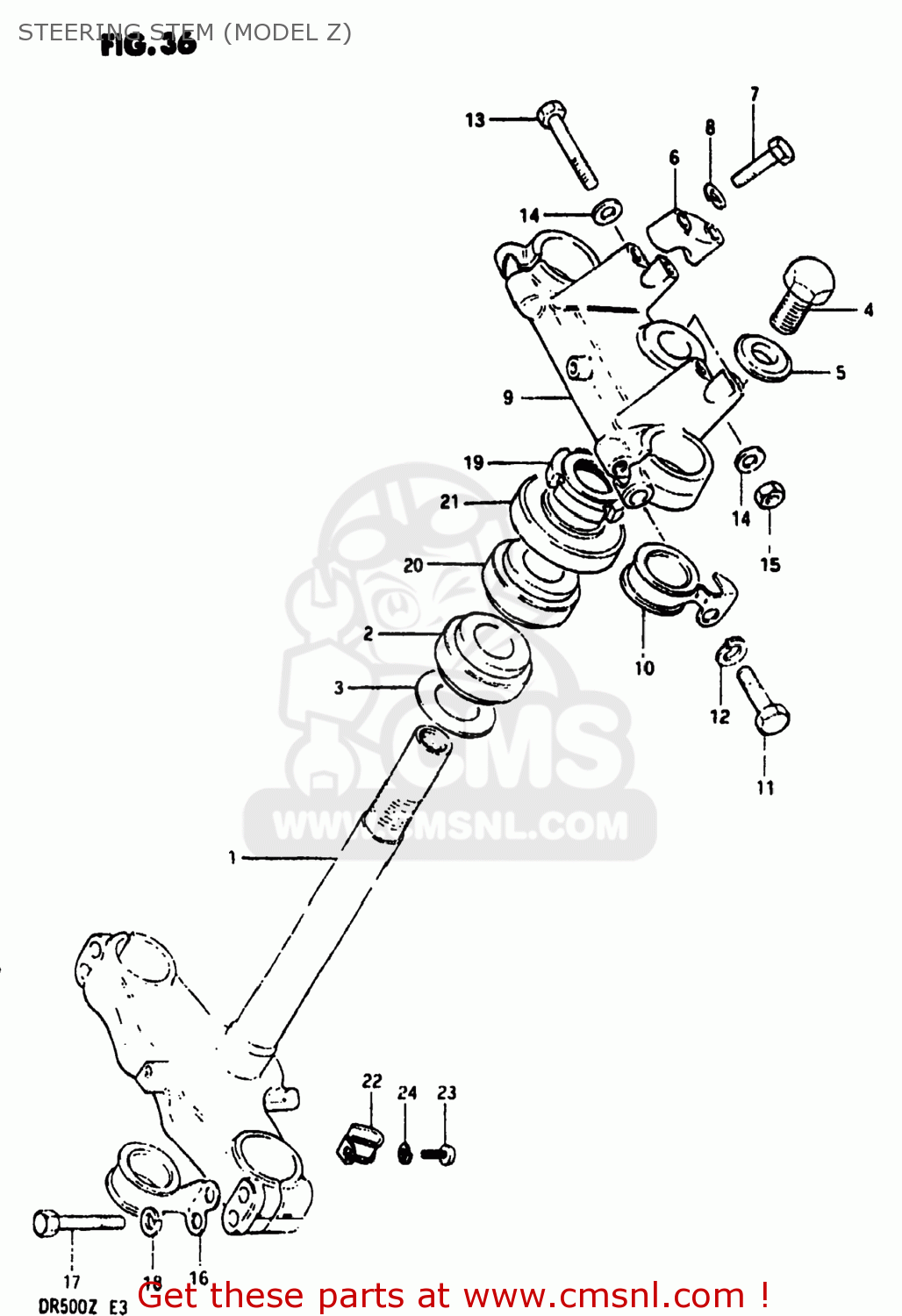

Steering stem (model z) diagram DR500 1981 (X) USA (E03)
STEERING STEM (MODEL Z) DR500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
514104050008C
ref: 1
51410-40510-08C
STEM,STEERING
€ 121.50
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821130402
ref: 3
09181-30184
WASHER,THRUST
€ 4.00
4
5135141320
ref: 4
BOLT
€ 8.50
5
5135641310
ref: 5
WASHER
€ 6.00
6
562114030008C
ref: 6
HOLDER,HANDLEBAR
€ 7.00
7
0110708358
ref: 7
01500-0835B
BOLT
€ 3.50
8
0832121088
ref: 8
08321-01087
LOCK WASHER
€ 2.00
9
513113720008C
ref: 9
HEAD,STEERING STEM
€ 57.00
10
5862137210
ref: 10
GUIDE,CABLE
€ 4.50
11
0110710458
ref: 11
01500-1045A
BOLT
€ 2.00
12
0832121108
ref: 12
08321-01107
LOCK WASHER
€ 2.00
13
0110708508
ref: 13
01500-08507
BOLT 8X50
€ 3.00
14
0832221088
ref: 14
08322-01087
WASHER
€ 2.00
15
0831012088
ref: 15
08310-00087
NUT
€ 2.00
16
5862137200
ref: 16
GUIDE,CABLE
€ 5.50
17
0110708458
ref: 17
01500-08453
BOLT 8X45
€ 2.50
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
19
5163128000
ref: 19
NUT,STEERING STEM(25X44X10)
€ 12.50
20
0926525008
ref: 20
09265-25019
TAPER,ROLLER BEARING
€ 48.50
21
5164340502
ref: 21
DUST SEAL,STEERING UPR
€ 8.00
22
5145305110
ref: 22
CLIP,BRAKE CABLE
€ 4.50
23
0211206108
ref: 23
02112-06107
SCREW
€ 1.50
24
0832121068
ref: 24
08321-01067
LOCK WASHER
€ 2.50
