FOOTREST
DR500 1981 (X) USA (E03)

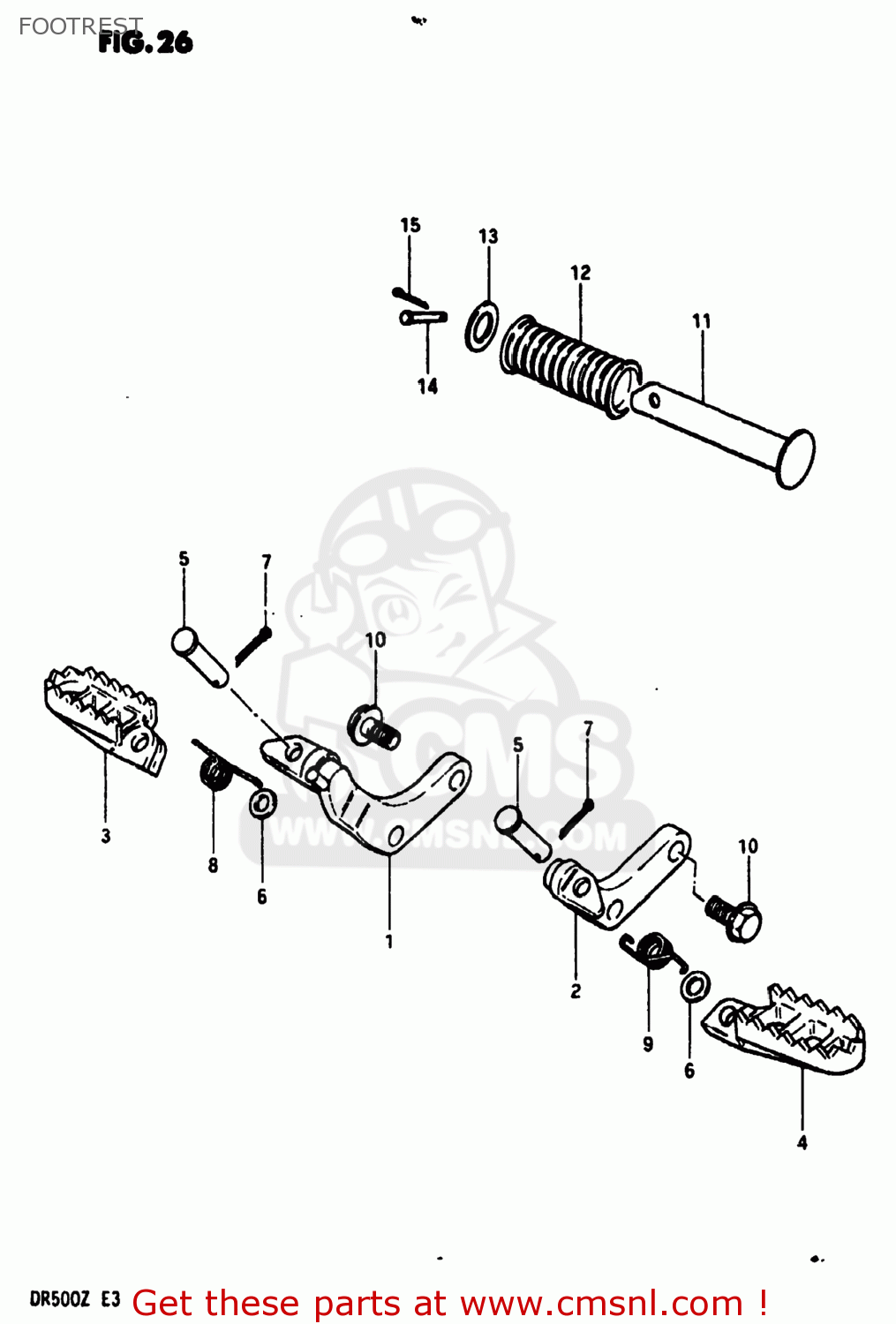

Footrest diagram DR500 1981 (X) USA (E03)
FOOTREST DR500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351037401
ref: 1
43510-37401-019
BAR,FRONT FOOTREST
€ 28.00
2
4352037401
ref: 2
43520-37401-019
BAR,FRONT FOOTREST,LEFT
€ 23.50
3
4355137201
ref: 3
43551-37202-019
FOOTREST,RIGHT
€ 31.00
4
4356140401
ref: 4
43561-40401-019
FOOTREST
€ 24.50
5
0920008035
ref: 5
09200-08064
PIN
€ 6.50
6
0832221088
ref: 6
08322-01087
WASHER
€ 2.00
7
0411120208
ref: 7
04111-2020A
PIN 20X20
€ 1.50
8
0944814022
ref: 8
SPRING
€ 2.00
9
0944814019
ref: 9
SPRING
€ 2.50
10
0910310037
ref: 10
BOLT(10X25)
€ 4.00
