KICK STARTER
DR500 1981 (X) USA (E03)

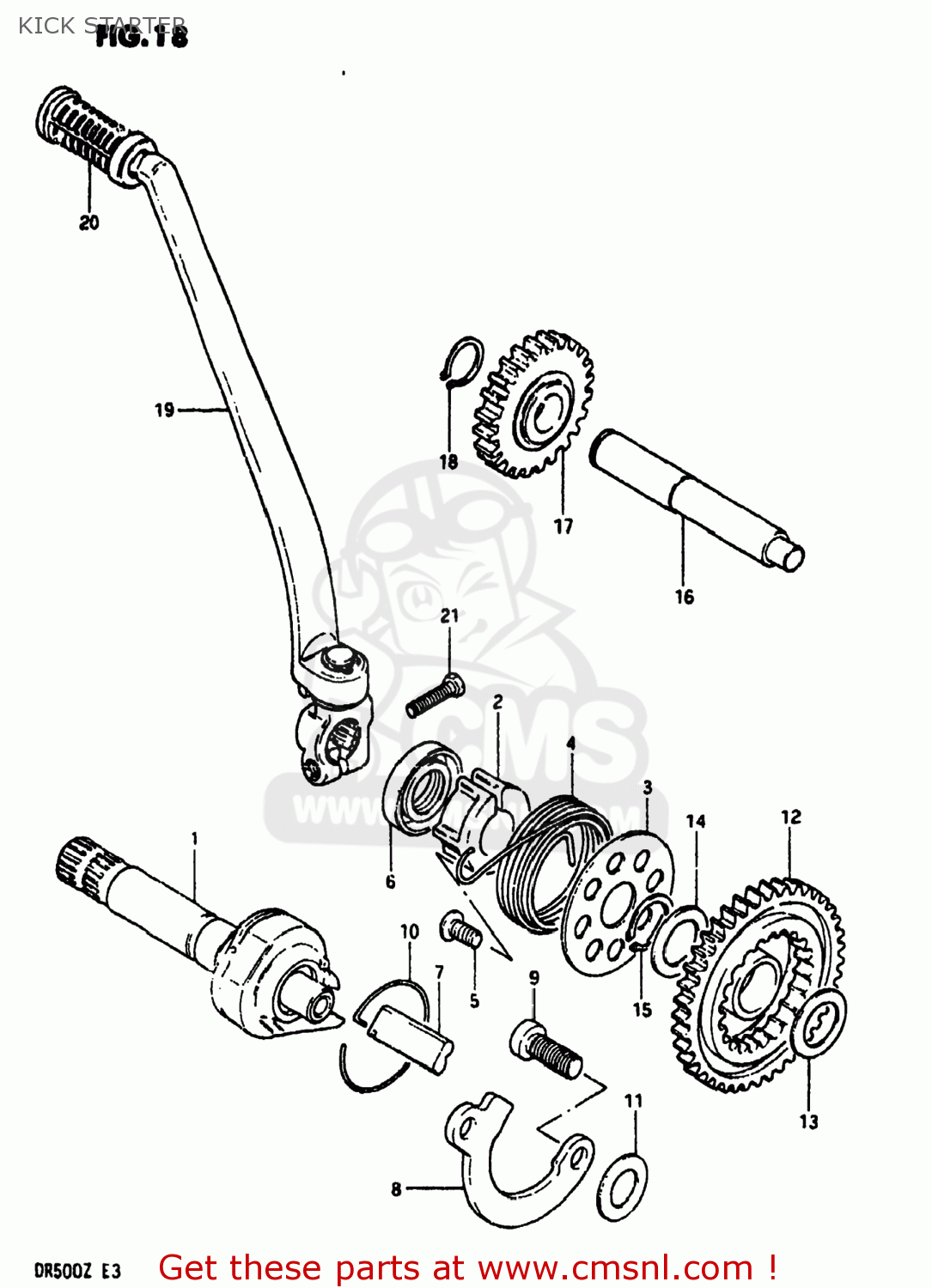

Kick starter diagram DR500 1981 (X) USA (E03)
KICK STARTER DR500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2621037400
ref: 1
SHAFT,KICK STARTER
€ 129.00
2
2622137400
ref: 2
GUIDE,KICK SHAFT SPRING
€ 8.00
3
2622237400
ref: 3
HOLDER,KICK SHAFT SPRING
€ 4.00
4
0944858001
ref: 4
SPRING
€ 10.00
5
0214206167
ref: 5
SCREW
€ 2.00
6
0928320025
ref: 6
SEAL,OIL(20X37X7)
€ 6.50
7
2623137400
ref: 7
PAWL,KICK STARTER
€ 10.50
8
2623237400
ref: 8
LIFTER,KICK STARTER
€ 15.50
9
2623337401
ref: 9
STOPPER,KICK STARTER
€ 4.50
10
2623437400
ref: 10
SPRING,KICK START PAWL RETURN
€ 6.50
11
0821116281
ref: 11
09181-16223
WASHER
€ 1.50
12
2624037400
ref: 12
GEAR,KICK STARTER DRIIVE
€ 88.00
13
0821120301
ref: 13
WASHER
€ 3.00
14
0821122301
ref: 14
09181-22167
WASHER,THRUST
€ 3.00
15
0833111209
ref: 15
08331-3120A
CIRCLIP
€ 2.50
16
2622337400
ref: 16
SHAFT,KICK STARTER IDLE
€ 0.00
17
2626037400
ref: 17
GEAR,KICK STARTER IDLE
€ 36.00
18
0938017001
ref: 18
CIRCLIP
€ 2.00
19
2630037401
ref: 19
LEVER ASSEMBLY,KICK STARTER
€ 96.50
20
2635216401
ref: 20
RUBBER,KICK STARTER PEDAL
€ 4.00
21
0910008134
ref: 21
BOLT(8X25)
€ 3.00
