MAGNETO
DR500 1981 (X) USA (E03)

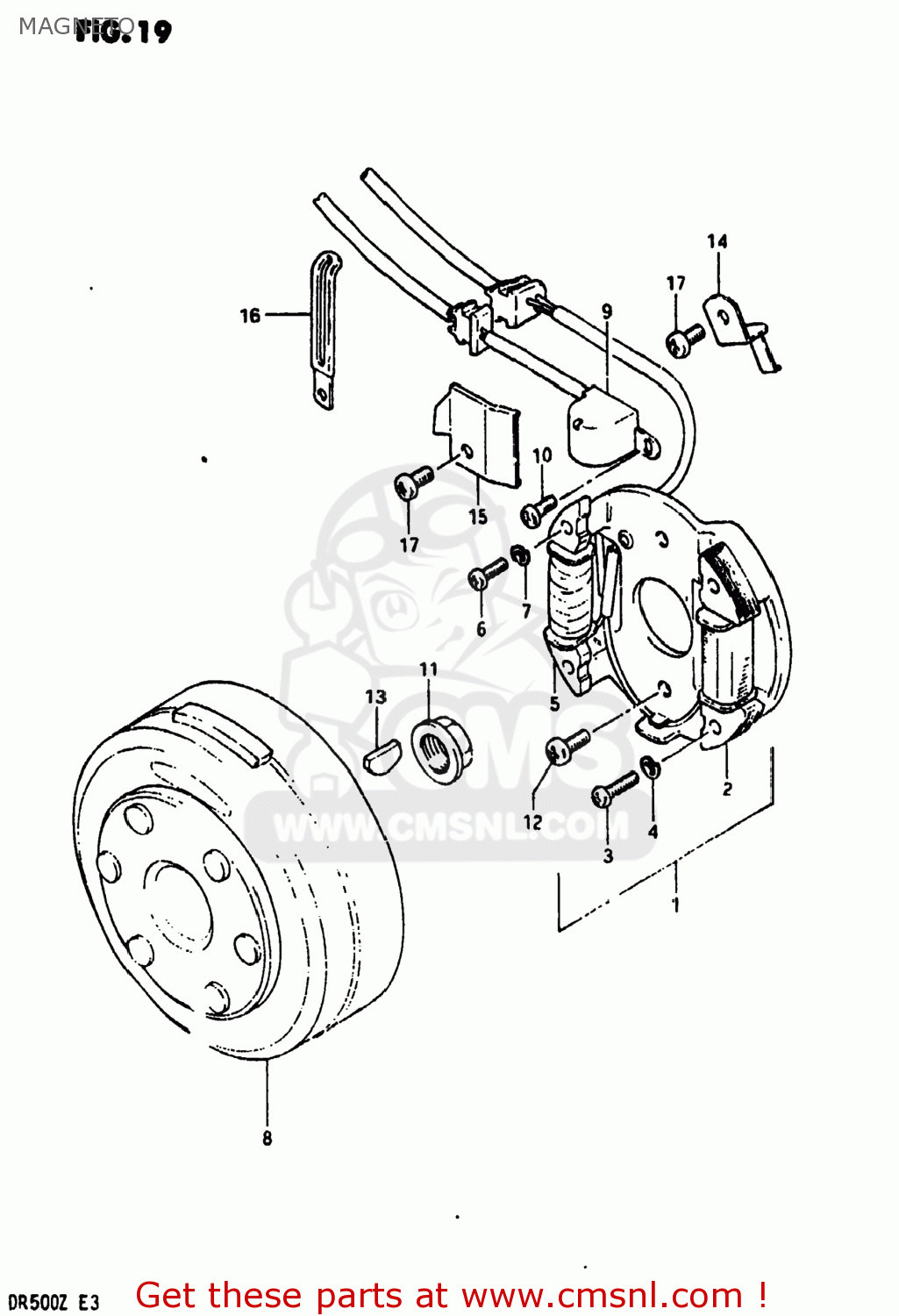

Magneto diagram DR500 1981 (X) USA (E03)
MAGNETO DR500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210137410
ref: 1
STATOR ASSEMBLY
€ 175.00
2
3212037410
ref: 2
COIL,LIGHTING
€ 46.50
3
0211205208
ref: 3
02112-05207
SCREW 5X20
€ 3.00
4
0832121058
ref: 4
08321-0105A
LOCK WASHER
€ 2.00
5
3214037410
ref: 5
COIL,PRIMARY
€ 124.00
6
0211205168
ref: 6
02112-05167
SCREW
€ 2.50
7
0832121058
ref: 7
08321-0105A
LOCK WASHER
€ 2.00
8
3210237410
ref: 8
ROTOR,FLYWHEEL
€ 202.50
9
3216037410
ref: 9
COIL ASSY,PICK UP
€ 138.00
10
0913905014
ref: 10
SCREW (SUS)
€ 2.50
11
3179249200
ref: 11
NUT,GENERATOR ROTOR
€ 10.00
12
0211206168
ref: 12
02112-06167
SCREW
€ 2.50
13
0834131049
ref: 13
09420-04008
KEY 4MM
€ 3.50
14
3237137400
ref: 14
CLAMP,MAGNETO LEAD WIRE
€ 1.50
15
3237137410
ref: 15
CLAMP,MAGNETO LEAD WIRE
€ 1.50
16
0940406412
ref: 16
09404-06432
CLAMP
€ 2.50
17
0211206108
ref: 17
02112-06107
SCREW
€ 1.50
