DR500 1981 (X) USA (E03)

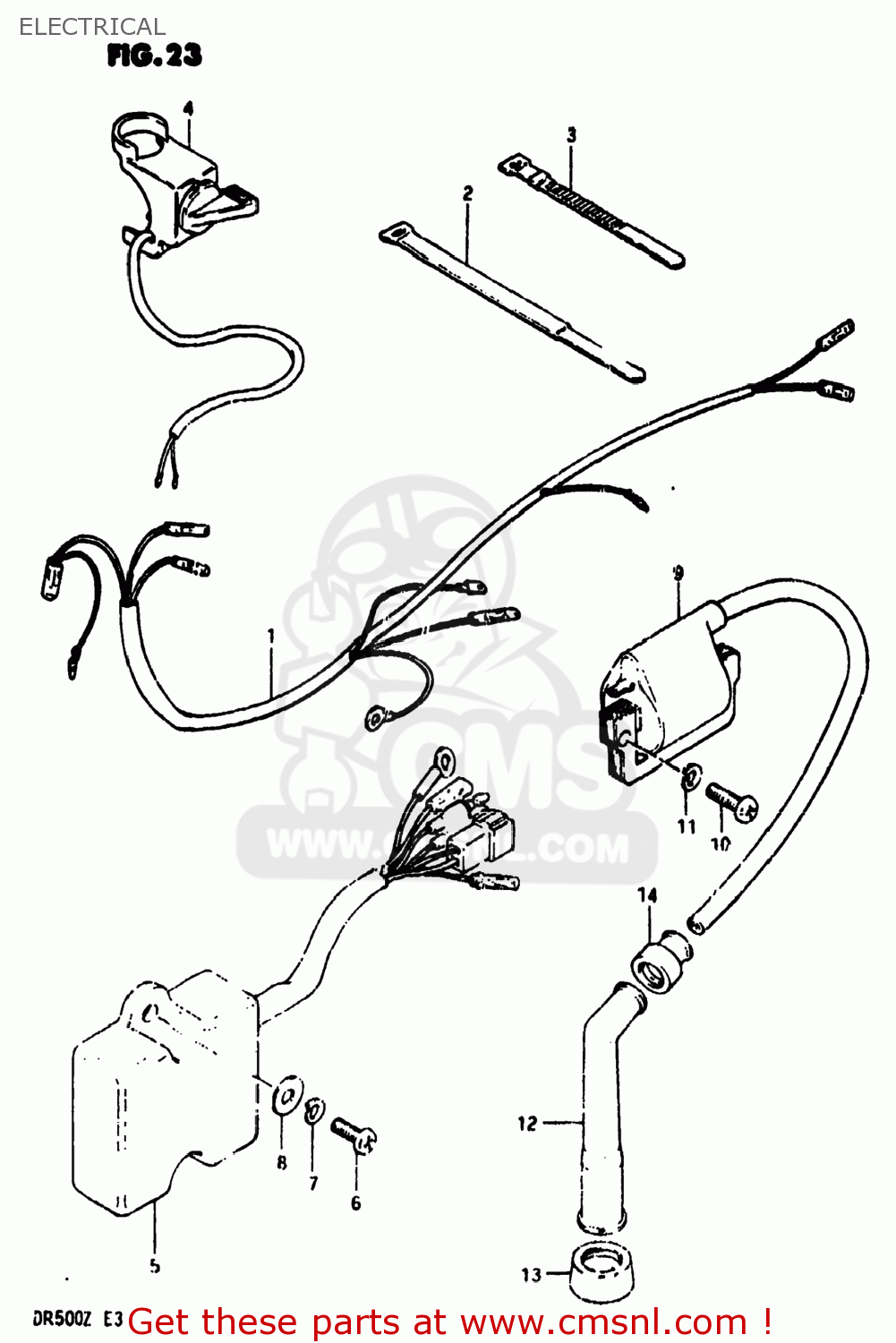

Electrical diagram DR500 1981 (X) USA (E03)
ELECTRICAL DR500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661037400
ref: 1
HARNESS,WIRING
€ 22.50
2-1
0940711301
ref: 2-1
09407-18301
CLAMP L:110
€ 6.00
2-3
0940718301
ref: 2-3
CLAMP
€ 6.00
3
0940712402
ref: 3
CLAMP(L:120)
€ 3.00
4-1
3783037400
ref: 4-1
37830-38200
SWITCH ASSEMBLY
€ 72.00
4-2
3783037410
ref: 4-2
37830-38200
SWITCH ASSEMBLY
€ 72.00
5
3290037410
ref: 5
CDI UNIT
€ 295.50
6
0211206168
ref: 6
02112-06167
SCREW
€ 2.50
7
0832121068
ref: 7
08321-01067
LOCK WASHER
€ 2.50
8
0916006039
ref: 8
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
9
3341037410
ref: 9
33410-23011
COIL ASSEMBLY,IGNITION
€ 83.00
10
0211206208
ref: 10
02112-06207
SCREW
€ 2.00
11
0832121068
ref: 11
08321-01067
LOCK WASHER
€ 2.50
12
3351045010
ref: 12
CAP ASSY,SPARK PLUG
€ 23.00
13
3354132410
ref: 13
33541-38210
SEAL,SPARK PLUG
€ 7.00
14
3354298000
ref: 14
33542-38B00
SEAL,SPARK PLU
€ 4.50
