FUEL TANK (MODEL X)
DR500 1981 (X) USA (E03)

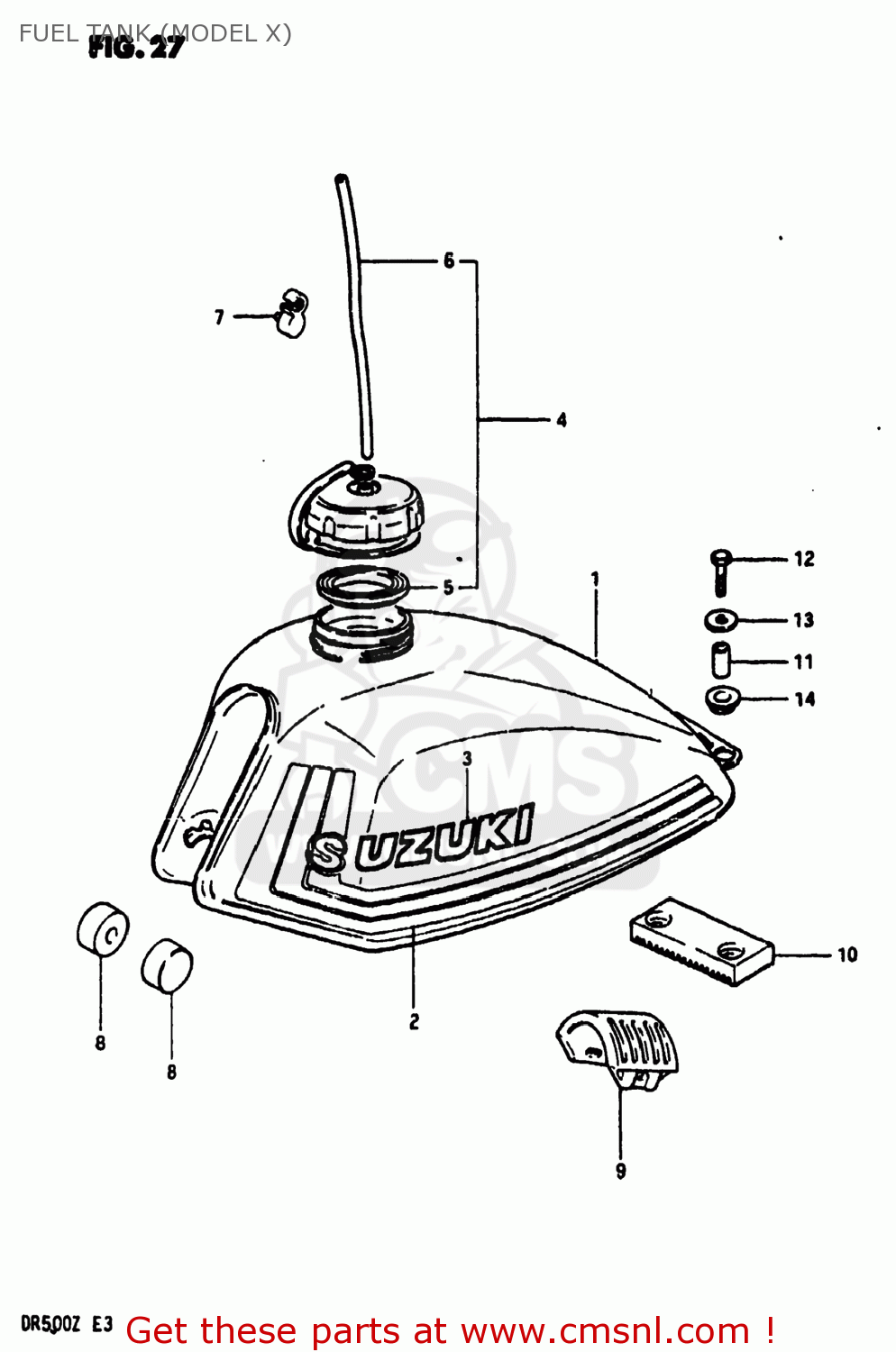

Fuel tank (model x) diagram DR500 1981 (X) USA (E03)
FUEL TANK (MODEL X) DR500 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
441003740010V
ref: 1
44110-37211-13L
TANK ASSEMBLY,FUEL
€ 457.00
2
681103740079U
ref: 2
TAPE SET,FUEL TANK
€ 21.00
3
681113720007G
ref: 3
EMBLEM
€ 6.00
4
4420048511
ref: 4
44200-48830
CAP SET,FUEL TANK
€ 32.50
5
4424840400
ref: 5
44248-05210
GASKET,FUEL TANK CAP (NAS)
€ 4.50
6
0934305129
ref: 6
44420-44AR0
HOSE
€ 13.00
7
4448632101
ref: 7
CLAMP,FUEL TANK BREATHER HOSE
€ 3.50
8
0932910016
ref: 8
CUSHION
€ 3.00
9
4454140602
ref: 9
CUSHION,FUEL TANK UPR FR
€ 6.00
10
4454137400
ref: 10
CUSHION,FUEL TANK,REAR
€ 8.00
11
0918006093
ref: 11
SPACER (6.5X10.5X29)
€ 2.00
12
0110706408
ref: 12
01500-0640B
BOLT 6X40
€ 2.00
13
0916006004
ref: 13
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
14
0932010022
ref: 14
CUSHION
€ 2.50
