FRONT FENDER

DR500 1981 (X) USA (E03)

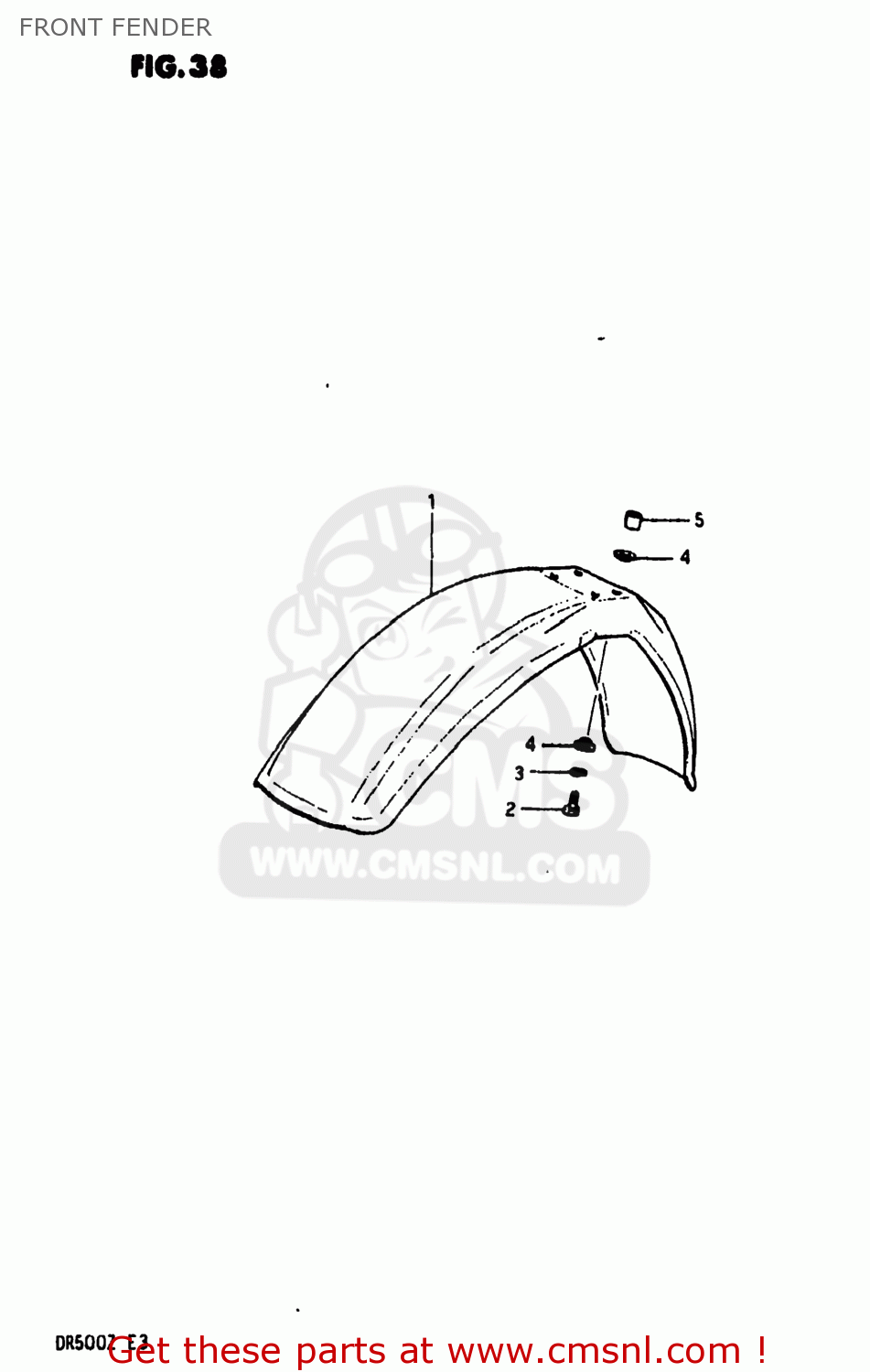

Front fender diagram DR500 1981 (X) USA (E03)

FRONT FENDER DR500 1981 (X) USA (E03)

FRONT FENDER DR500 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

531111410010V
ref: 1
53111-14101-13L

FENDER,FRONT

€ 100.00

2

0110706308
ref: 2
01500-06307

BOLT

€ 2.50

3

0832121068
ref: 3
08321-01067

LOCK WASHER

€ 2.50

4

0916906016
ref: 4

WASHER

€ 1.50

5

0918006006
ref: 5
09180-07019

SPACER (6.8X10X11.5)

€ 3.00
