AIR CLEANER
DR500 1982 (Z) USA (E03)

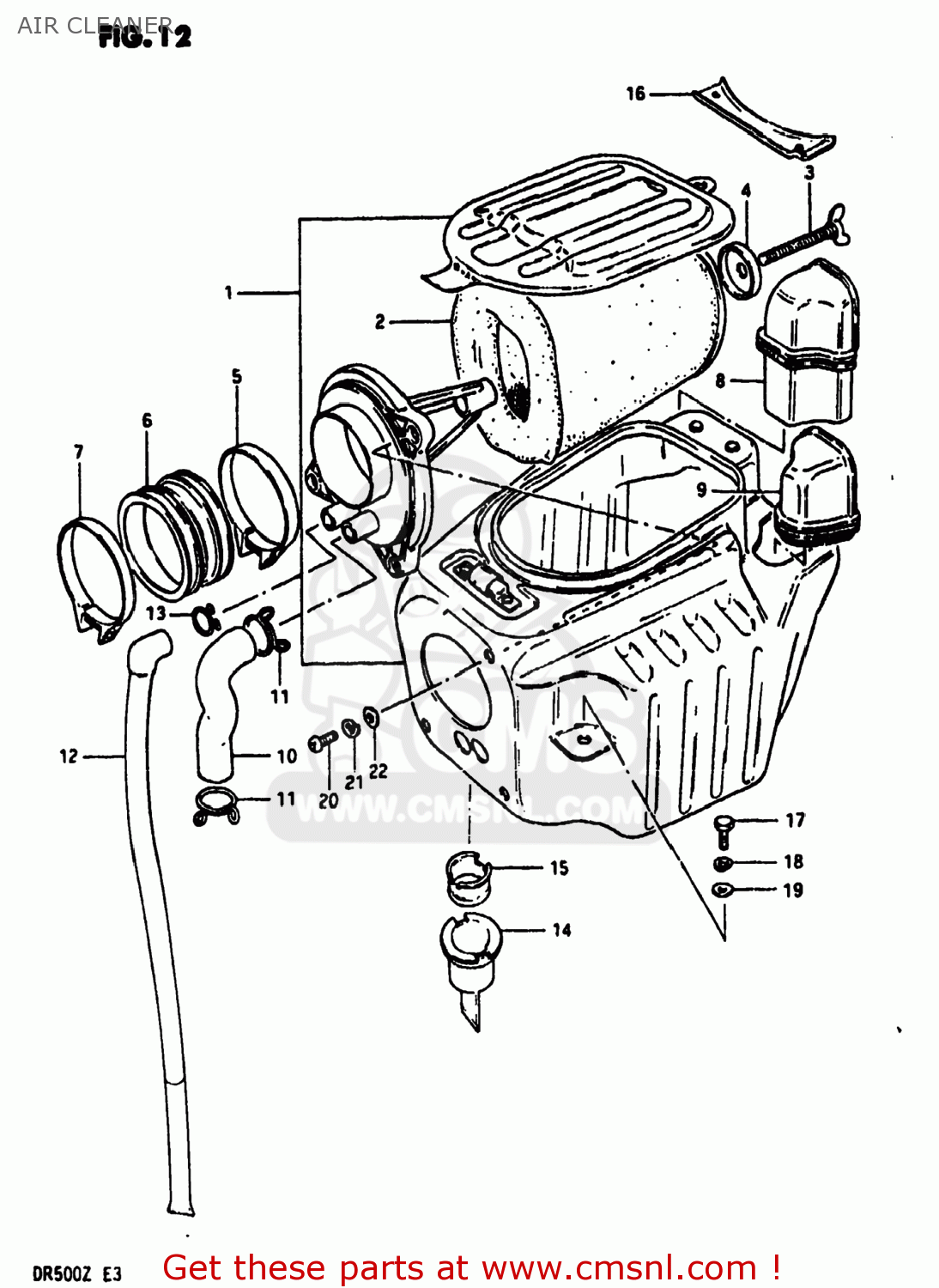

Air cleaner diagram DR500 1982 (Z) USA (E03)
AIR CLEANER DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370037400
ref: 1
13700-37421
CLEANER ASSEMBLY,AIR
€ 88.50
2
1378137400
ref: 2
FILTER
€ 33.50
3
1391137400
ref: 3
WING BOLT,AIR CLEANER
€ 0.00
4
1379240400
ref: 4
13792-13A01
HOLDER,FILTER
€ 3.00
5
0940262306
ref: 5
09402-62208
CLAMP
€ 6.00
6
1388137400
ref: 6
TUBE,OUTLET
€ 10.50
7
0940264306
ref: 7
09402-64203
CLAMP
€ 6.00
8
1389137400
ref: 8
TUBE,INLET
€ 21.00
9
1389237400
ref: 9
HOSE,INLET
€ 5.50
10
1385137400
ref: 10
TUBE,BREATHER
€ 0.00
11
0940114301
ref: 11
CLIP
€ 2.00
12
1387000100
ref: 12
13870-21628
DRAIN TUBE
€ 23.50
13
0940114301
ref: 13
CLIP
€ 2.00
14
1387300090
ref: 14
HOSE,AIR CLEANER DRAIN
€ 3.50
15
1397937400
ref: 15
STOPPER,DRAIN
€ 6.50
16
1376437400
ref: 16
BRACKET,AIR CLEANER
€ 0.00
17
0110706168
ref: 17
01500-06167
BOLT, UPPER
€ 3.00
18
0832121068
ref: 18
08321-01067
LOCK WASHER
€ 2.50
19
0832221068
ref: 19
08322-01067
WASHER
€ 2.00
20
0211206128
ref: 20
02112-06127
SCREW 6X12
€ 2.00
21
0832121068
ref: 21
08321-01067
LOCK WASHER
€ 2.50
22
0832221068
ref: 22
08322-01067
WASHER
€ 2.00
up
