FRONT WHEEL
DR500 1982 (Z) USA (E03)

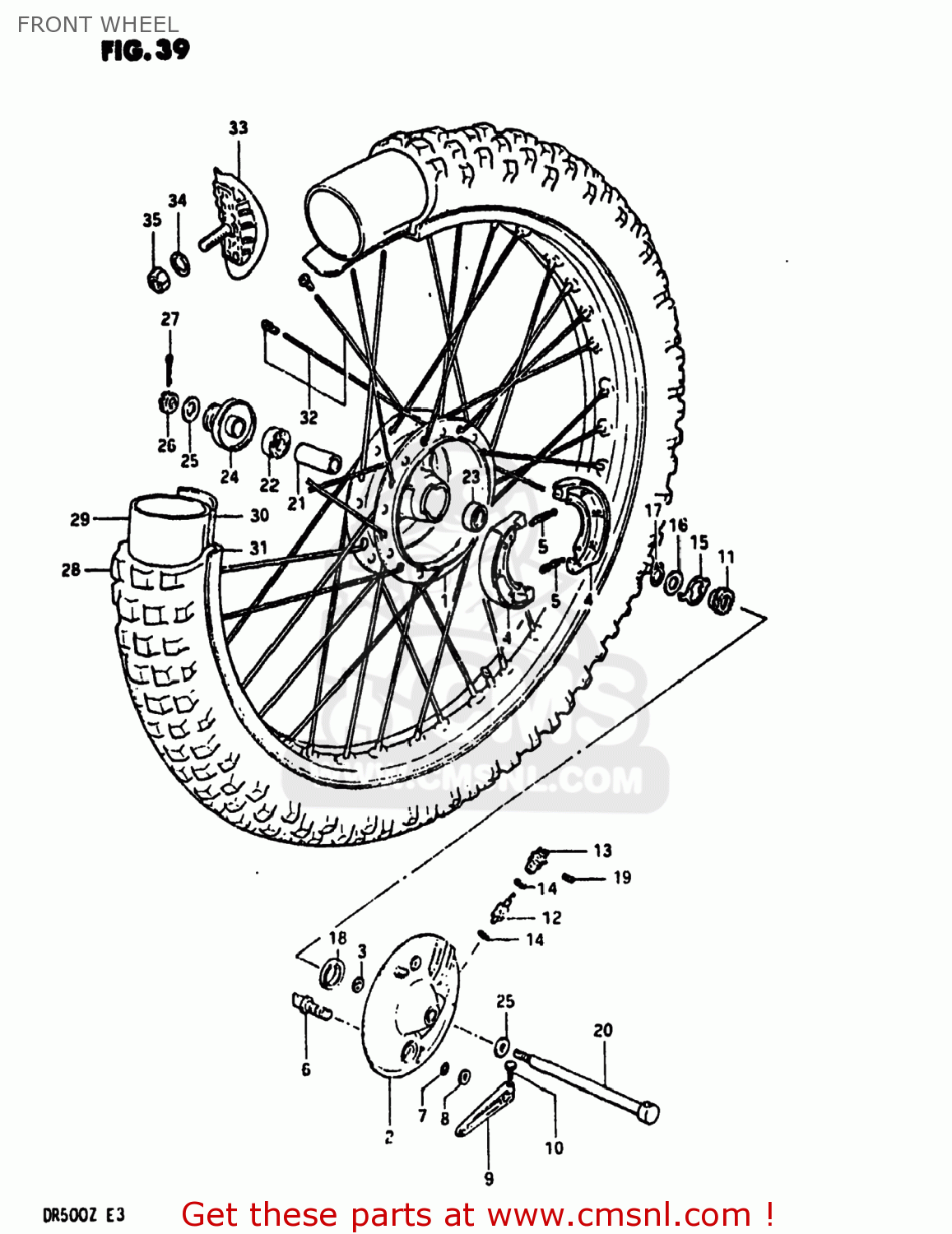

Front wheel diagram DR500 1982 (Z) USA (E03)
FRONT WHEEL DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411040201
ref: 1
HUB,FRONT
€ 156.50
2
5421048500
ref: 2
54210-48502
PANEL,FRONT HUB
€ 150.50
3
5422141300
ref: 3
BOSS
€ 0.00
4
5441037400
ref: 4
54400-37820
SHOE,BRAKE (MCA)
€ 26.00
5
0944307001
ref: 5
09443-07025
SPRING(L:34)
€ 2.50
6
5444148500
ref: 6
54441-48502
CAM,FRONT BRAKE
€ 10.00
7
0928014003
ref: 7
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
8
0916014001
ref: 8
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
9
5445132400
ref: 9
54451-32401
LEVER,FRONT BRAKE CAM
€ 48.00
10
0110706258
ref: 10
01500-06257
BOLT
€ 2.00
11
5461128401
ref: 11
54611-28402
GEAR,SPEEDOMETER
€ 26.00
12-1
5462128400
ref: 12-1
54621-28401
PINION,SPEEDOMETER
€ 15.50
12-2
5462128401
ref: 12-2
PINION,SPEEDOMETER
€ 15.50
13
5463201001
ref: 13
BUSH,METER GEAR OUTER
€ 9.00
14
0916005001
ref: 14
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
15
5466129300
ref: 15
DRIVER,SPEEDOMETER GEAR
€ 4.00
16
0916018002
ref: 16
WASHER(18.5X24X1)
€ 2.00
17
0833111189
ref: 17
CIRCLIP
€ 2.00
18
0928543001
ref: 18
09283-43004
OIL SEAL (43X58X7)
€ 10.00
19
0913403101
ref: 19
09134-03101-A05
SCREW
€ 1.50
20
5471130501
ref: 20
AXLE,FRONT
€ 27.00
21
0918012041
ref: 21
09180-12144
SPACER (12.6X19X52)
€ 4.50
22
0812362017
ref: 22
08133-62017
BEARING, RH
€ 15.00
23
0814362017
ref: 23
BEARING
€ 11.50
24-1
5474041100
ref: 24-1
54740-37200
SPACER,FRONT AXLE,RIGHT
€ 10.50
24-2
5474037200
ref: 24-2
SPACER,FRONT AXLE,RIGHT
€ 10.50
25
0832211128
ref: 25
08322-01127
WASHER
€ 2.00
26
0831441128
ref: 26
08314-4012A
NUT, REAR AXLE
€ 2.50
27
0411130308
ref: 27
04111-3030A
COTTER PIN
€ 1.50
28-1
5510014230
ref: 28-1
TIRE,FRONT
€ 0.00
28-2
5510014200
ref: 28-2
55100-14230
TIRE,FRONT
€ 0.00
29
5520028330
ref: 29
55200-16510
TUBE,INNER
€ 32.50
30
5526128330
ref: 30
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.00
31
5531140230
ref: 31
RIM,FRONT WHEEL
€ 128.00
32
5532040230
ref: 32
SPOKE SET,FRONT
€ 31.50
33-1
6527030001
ref: 33-1
65270-43D00
STOPPER,BEAD
€ 30.50
33-2
6527046910
ref: 33-2
65270-43D00
STOPPER,BEAD
€ 30.50
34
0832211088
ref: 34
08322-01087
WASHER
€ 2.00
35
0831012088
ref: 35
08310-00087
NUT
€ 2.00
