FRONT FORK (MODEL Z)
DR500 1982 (Z) USA (E03)

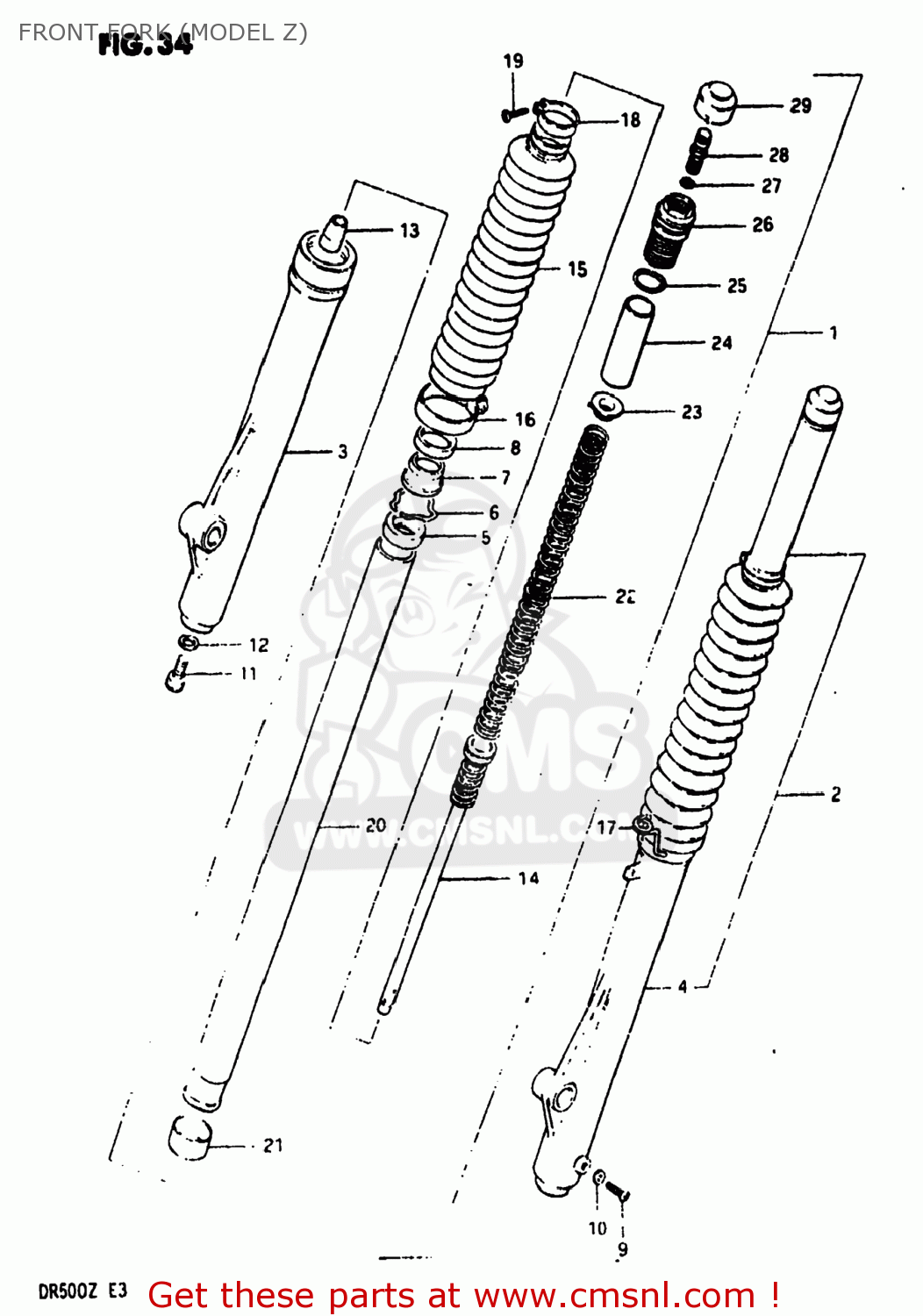

Front fork (model z) diagram DR500 1982 (Z) USA (E03)
FRONT FORK (MODEL Z) DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110337406
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 291.00
2
5110437406
ref: 2
DAMPER ASSEMBLY,LEFT
€ 291.00
3
5113037400
ref: 3
TUBE,OUTER,RIGHT
€ 90.50
4
5114037400
ref: 4
TUBE,OUTER,LEFT
€ 86.00
5
5115341211
ref: 5
51153-16730
OIL SEAL,FRONT FORK
€ 28.50
6
5115630400
ref: 6
5115630400
7
5117340500
ref: 7
SEAL,DUST
€ 9.00
8
5114940500
ref: 8
CASE,DUST SEAL
€ 7.50
9
0211204088
ref: 9
02112-04087
SCREW
€ 1.50
10
5118303010
ref: 10
GASKET,DRAIN,PLUG (NAS)
€ 3.00
11
5114716510
ref: 11
BOLT,FORK CYLINDER(10X25)
€ 3.50
12
5114841310
ref: 12
GASKET (NAS)
€ 2.50
13
5119541210
ref: 13
51195-49071
PIECE,OIL LOCK
€ 12.00
14
5114637400
ref: 14
CYLINDER,FRONT FORK
€ 31.00
15
5157141211
ref: 15
51571-38265-38K
BOOT
€ 38.00
16
5157341410
ref: 16
BAND,FRONT FORK COVER
€ 10.00
17
5157337200
ref: 17
BAND,FRONT FORK COVER
€ 0.00
18
5157541410
ref: 18
BAND,BOOT
€ 8.00
19
0211204168
ref: 19
02112-0416A
SCREW
€ 1.00
20
5111037400
ref: 20
TUBE,FORK,INNER
€ 86.00
21
5112137410
ref: 21
PISTON
€ 14.00
22
5117137400
ref: 22
SPRING,FRONT FORK
€ 22.50
23
5117238010
ref: 23
GUIDE,FRONT FORK SPRING C
€ 9.50
24
5117637406
ref: 24
COLLAR,SPRING
€ 3.00
25
5111716310
ref: 25
O RING
€ 4.50
26
5135140630
ref: 26
CAP,FORK INNER TUBE
€ 23.50
27
5111714210
ref: 27
09280-06005
O-RING
€ 2.50
28
5129314200
ref: 28
51169-14200
VALVE,FRONT FORK AIR
€ 15.50
29
5118941220
ref: 29
CAP
€ 6.00
