HEADLAMP HOUSING
DR500 1982 (Z) USA (E03)

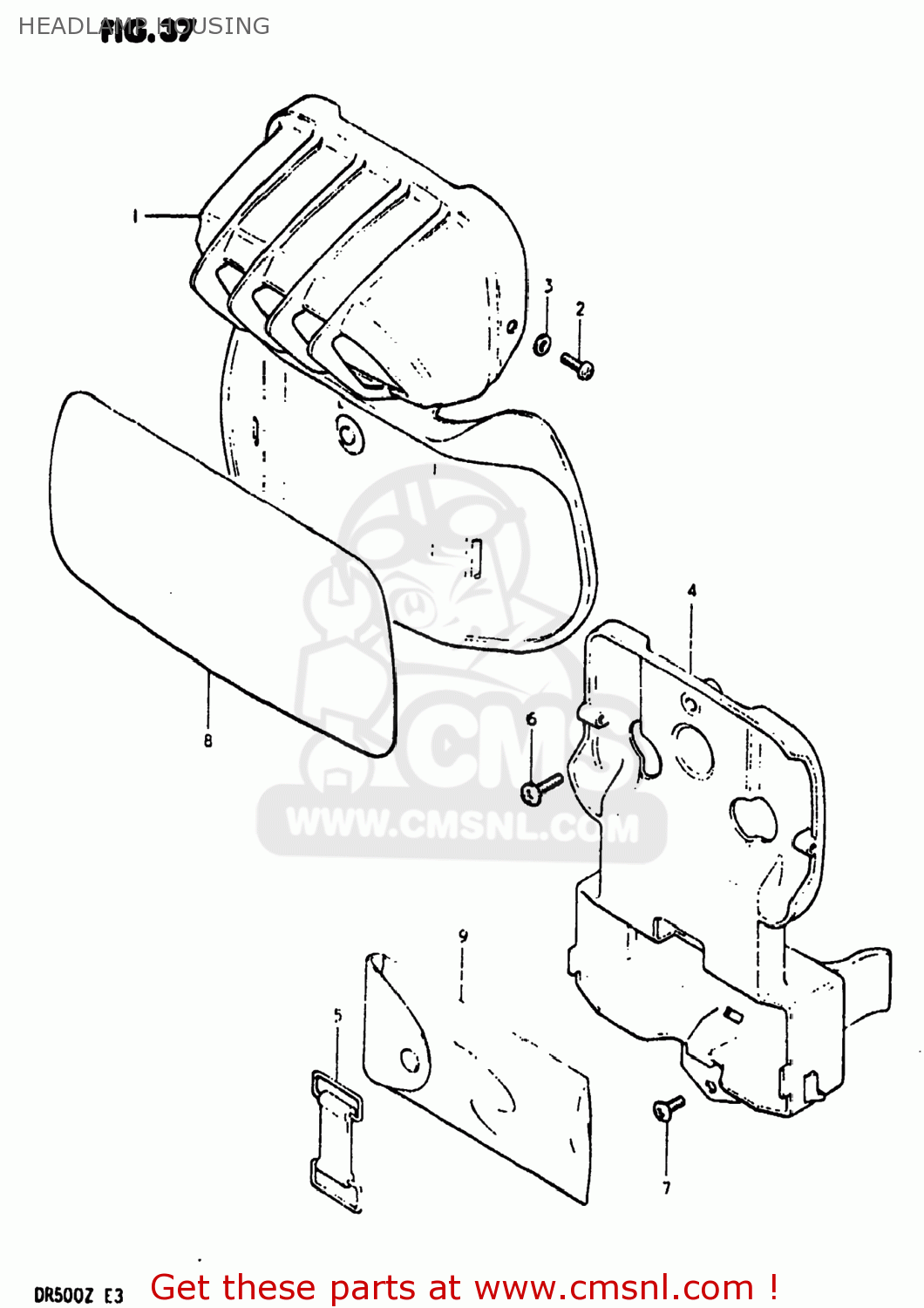

Headlamp housing diagram DR500 1982 (Z) USA (E03)
HEADLAMP HOUSING DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
518113720110V
ref: 1-1
51810-42A10-08X
HOUSING,HEADLAMP
€ 59.50
1-2
518113720210V
ref: 1-2
51810-42A10-08X
HOUSING,HEADLAMP
€ 59.50
2
0321104128
ref: 2
03142-0412B
TAPPING SCREW
€ 1.50
3
0832221048
ref: 3
08322-01047
WASHER
€ 2.00
4
4155137201
ref: 4
41551-37202
HOLDER,TOOL
€ 25.00
5
0946200017
ref: 5
BAND
€ 13.50
6
0214205258
ref: 6
02142-05257
SCREW
€ 1.00
7
0214205128
ref: 7
02142-05127
SCREW
€ 1.50
8
6816937200
ref: 8
EMBLEM,FRONT NUMBER PLATE
€ 0.00
9
0980001800
ref: 9
09800-21021
TOOL SET
€ 33.00
