CHAIN GUIDE
DR500 1982 (Z) USA (E03)

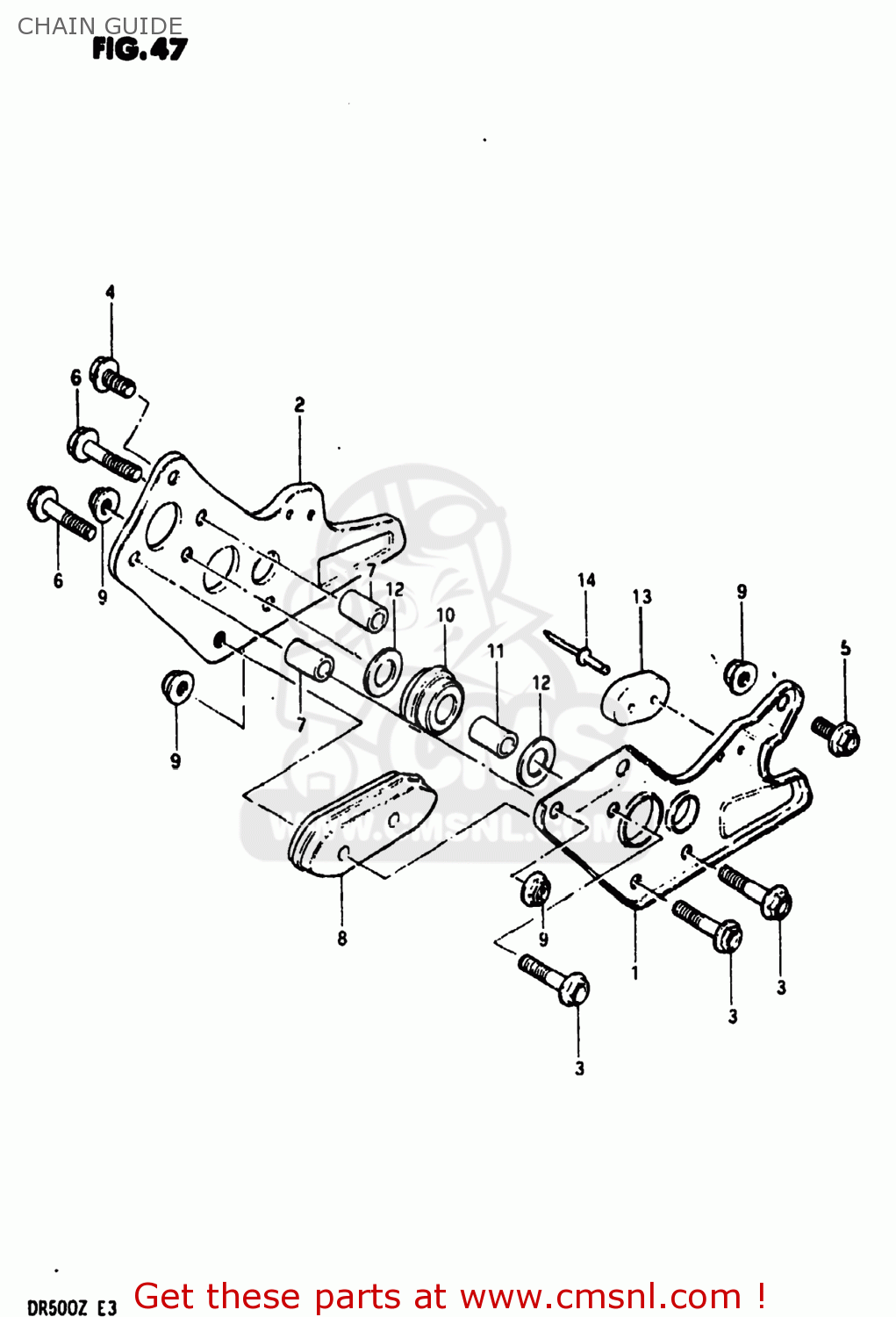

Chain guide diagram DR500 1982 (Z) USA (E03)
CHAIN GUIDE DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6134137400
ref: 1
GUIDE,CHAIN
€ 9.50
2
6134214100
ref: 2
PLATE,GUIDE CHAIN
€ 31.50
3
0151706358
ref: 3
01550-06357
BOLT 6X35
€ 2.50
4
0151706128
ref: 4
01550-06127
BOLT
€ 2.50
5
0151706168
ref: 5
01550-06167
BOLT
€ 1.50
6
0151706458
ref: 6
01550-06457
BOLT,UNDER
€ 2.50
7
0918007003
ref: 7
SPACER (6.5X10.5X25.5)
€ 2.00
8-1
6134814100
ref: 8-1
61348-14110
DEFENSE,CHAIN GUIDE
€ 12.00
8-2
6134814110
ref: 8-2
DEFENSE,CHAIN GUIDE
€ 12.00
9
0831931068
ref: 9
08319-31067
NUT
€ 2.50
10
6134540220
ref: 10
ROLLER,CHAIN GUIDE
€ 22.00
11
6134640210
ref: 11
SPACER,CHAIN GUIDE ROLLER
€ 4.50
12
0821110221
ref: 12
WASHER
€ 2.50
13
6134940210
ref: 13
61349-40211
PAD,DRIVE CHAIN GUIDE
€ 9.50
14
0922903009
ref: 14
RIVET
€ 1.50
