DR500 1982 (Z) USA (E03)

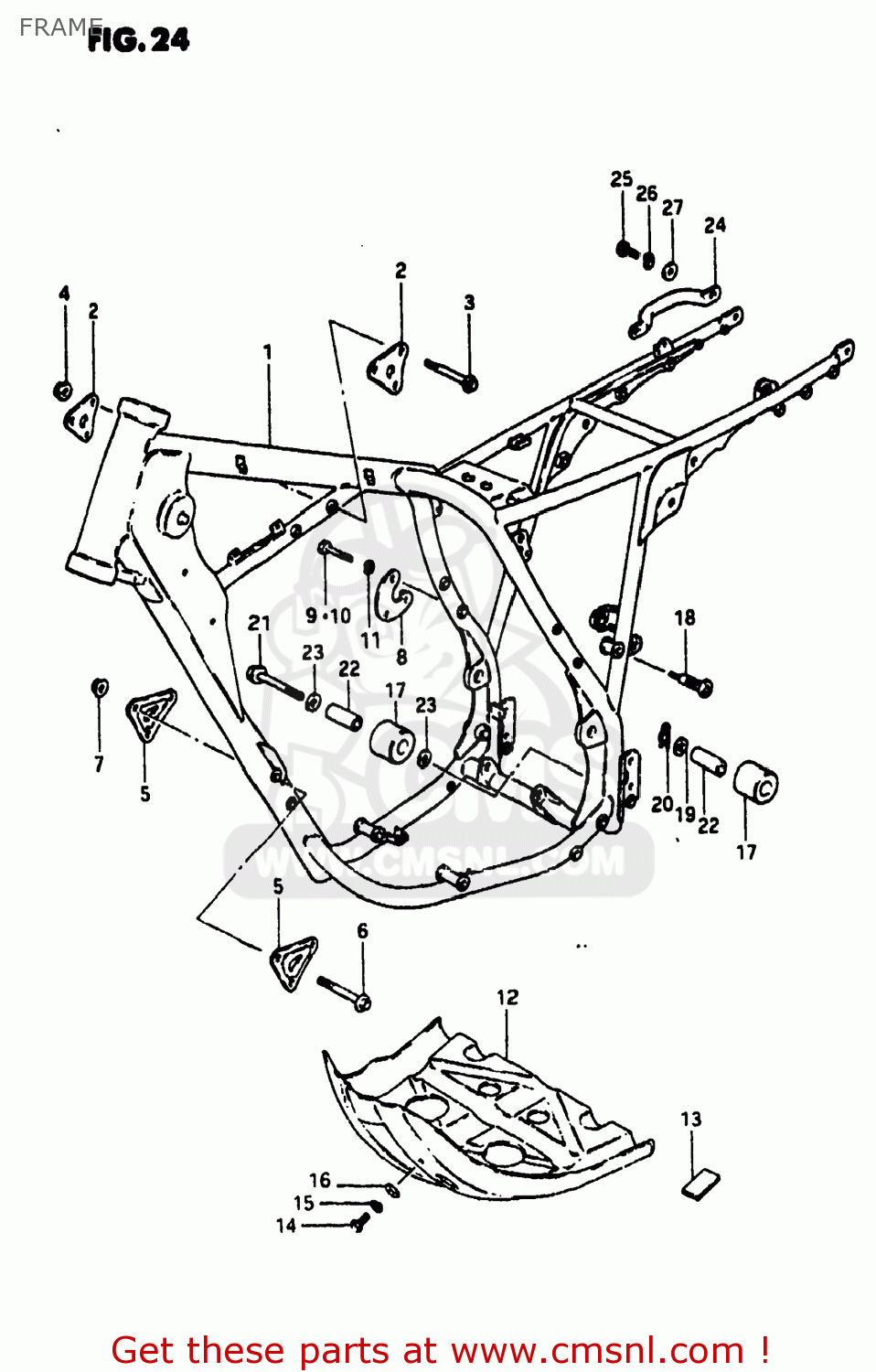

Frame diagram DR500 1982 (Z) USA (E03)
FRAME DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110037400019
ref: 1
FRAME
€ 313.00
2
4199137400
ref: 2
PLATE,ENGINE MOUNTING,UPPER
€ 0.00
3
0151708508
ref: 3
01550-08507
BOLT
€ 3.50
4
0831931088
ref: 4
08319-3108A
NUT
€ 2.50
5
4199337400
ref: 5
PLATE,ENGINE MOUNTING,FRONT
€ 18.00
6-1
0910308037
ref: 6-1
BOLT(8X67)
€ 6.50
6-2
0910308073
ref: 6-2
09103-08037
BOLT
€ 6.50
7
0831931088
ref: 7
08319-3108A
NUT
€ 2.50
8
4199437200
ref: 8
PLATE,ENGINE MOUNTING
€ 10.00
9
0110708608
ref: 9
01500-0860B
BOLT
€ 2.50
10
0110708508
ref: 10
01500-08507
BOLT 8X50
€ 3.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
4251137400
ref: 12
PLATE,ENGINE,UNDER
€ 47.00
13
4252137400
ref: 13
CUSHION,ENGINE,UNDER
€ 0.00
14
0110706128
ref: 14
01500-06127
BOLT
€ 2.00
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
17
4391114200
ref: 17
ROLLER,CHAIN LENGTH CONTROL
€ 18.50
18-1
4391514000
ref: 18-1
43915-14101
BOLT,CHAIN LENGTH ROLLER
€ 20.50
18-2
4391514101
ref: 18-2
BOLT,CHAIN LENGTH ROLLER
€ 20.50
19
0821210223
ref: 19
WASHER
€ 1.50
20
0833211088
ref: 20
08332-1108A
E RING 8MM
€ 2.00
21
0910308043
ref: 21
BOLT(8X45)
€ 4.50
22
4391340400
ref: 22
SPACER,CHAIN LENGTH ROLLER
€ 8.00
23
0916008035
ref: 23
09160-08130
WASHER
€ 2.00
24
4161137400
ref: 24
GRIP,FRAME HANDLE
€ 0.00
25
0110708168
ref: 25
01500-0816B
BOLT
€ 2.00
26
0832121088
ref: 26
08321-01087
LOCK WASHER
€ 2.00
27
0832221088
ref: 27
08322-01087
WASHER
€ 2.00
