GEAR SHIFTING
DR500 1982 (Z) USA (E03)

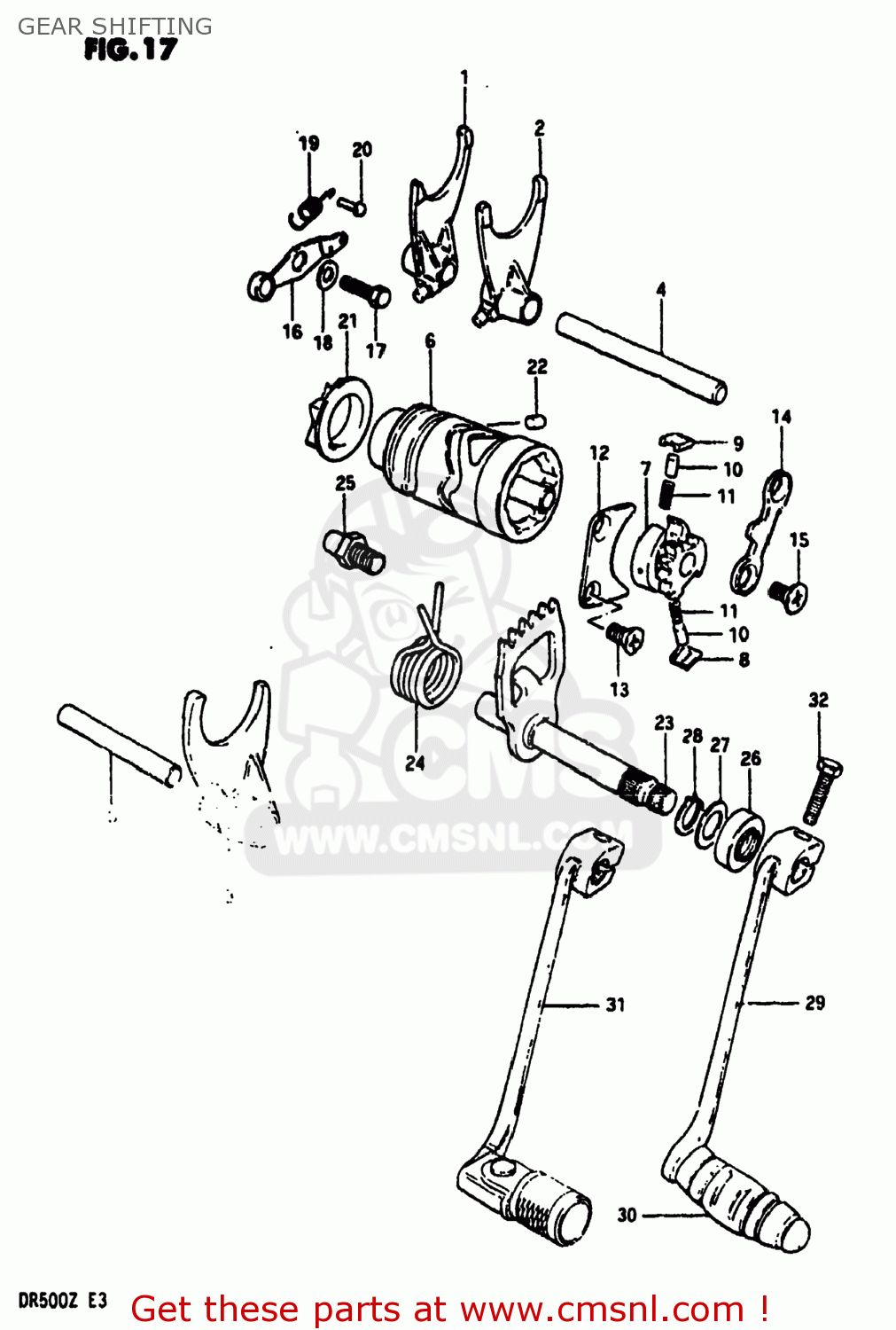

Gear shifting diagram DR500 1982 (Z) USA (E03)
GEAR SHIFTING DR500 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521137400
ref: 1
25211-37401
FORK,GEAR SHIFT NO.1
€ 58.50
2
2522137400
ref: 2
25221-37401
FORK,GEAR SHIFT NO.2
€ 58.50
3
2523137400
ref: 3
FORK,GEAR SHIFT NO.3
€ 46.00
4
2541137410
ref: 4
25411-20A11
SHAFT,GEAR SHIFT FORK
€ 14.50
5
2542137400
ref: 5
25421-14A02
SHAFT,GEAR SHIFT FORK
€ 14.50
6
2531037400
ref: 6
CAM,GEAR SHIFT
€ 91.50
7
2532234200
ref: 7
25322-31310
SHIFTER,GEAR SHIFT CAM
€ 14.50
8
2532334200
ref: 8
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434200
ref: 9
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533137400
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 20.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
2534140400
ref: 14
25341-40001
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206128
ref: 15
02122-06127
SCREW
€ 3.00
16
2535037400
ref: 16
STOPPER,GEAR SHIFT CAM
€ 8.00
17
0911106019
ref: 17
09111-06054
BOLT
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944308020
ref: 19
SPRING
€ 2.00
20
0922004001
ref: 20
09223-04001
RIVET
€ 1.50
20
0922004001
ref: 20
09223-04001
RIVET
€ 1.50
21
2538137400
ref: 21
25381-37401
PLATE,SHIFT CAM STOPPER
€ 10.50
22
0621104063
ref: 22
04221-04069
PIN 4X6
€ 2.00
23
2551037400
ref: 23
25510-37401
SHAFT,GEAR SHIFT
€ 55.50
24
0944426012
ref: 24
09444-26013
SPRING
€ 3.50
25
2567101000
ref: 25
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
26
0928512002
ref: 26
09285-12006
OIL SEAL
€ 7.00
27
0821212201
ref: 27
WASHER
€ 1.50
28
0833131128
ref: 28
08331-3112A
CIRCLIP
€ 2.00
29
2560037400
ref: 29
LEVER ASSEMBLY,GEAR SHIFTING
€ 31.50
30
2565216500
ref: 30
RUBBER,GEAR SHIFT PEDAL
€ 4.00
31
2560037410
ref: 31
LEVER ASSEMBLY,GEAR SHIFTING
€ 31.00
32
0910006091
ref: 32
01500-06207
BOLT
€ 2.00
